5
OPERATING INSTRUCTIONS

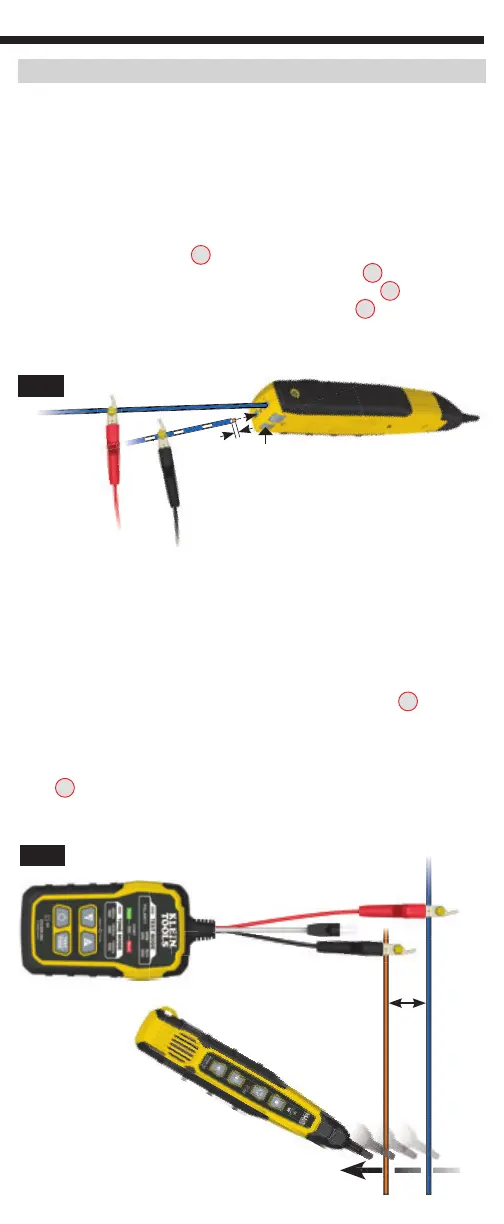

VERIFYING TONED PAIRS (FIG. 2)
1. Connect tone generator (VDV500-063 Toner-Pro recommended, sold
seperately) to the cable to be traced, following the tone generator's
instructions.
2. On the other end of the cable, remove approximately 2 mm (3/32") of the
outer jacket of each of the wires believed to be the toned pair.
3. Insert the wire connected to the positive test clip of the tone generator to
the
"+" (Positive) Terminal
P12
,
and the wire curently in the negative test
clip of the tone generator to the
"-" (Negative) Terminal
P11
. To access the
terminals, press their respective
Terminal Release buttons
P13
, insert the
wire(s) and release (FIG. 2). The
Verification Indicator
P14
will illuminate
when the correct pair is inserted.
TRACING NON-PAIRED WIRES (FIG. 3)
1. Connect tone generator (VDV500-063 Toner-Pro recommended, sold
seperately) to the wires to be traced, following the tone generator's
instructions.
2. Turn the Probe-Pro on by pressing the Power On/Off button
P5
.
3. At the far end of the cable, spread the wires at least 2" (51 mm) apart, if
possible.
4. Use the Probe-Pro to scan the cable’s wire pairs. Move the Probe-Pro's
tip
P1
slowly across the wires. The Probe-Pro’s volume will increase as it
approaches the toned wire.
FIG. 2
Press
2 mm
(3/32")
FIG. 3
2"
(51 mm)
VDV500-063
(sold seperately)
