Klipsch CS-500 User Manual

Disconnect the cable on your cable, satellite or HD set-top box that is
connected to your TV (you need to connect 1 video and 1 audio).
Connect the VIDEO—look at the options available on the set-top box
and choose 2A or 2B.
To maintain best picture quality—if the back of the set-top box has
COMPONENT VIDEO (
Y, P B , P R) OUTPUT jacks, plug corresponding
cables (either a bundled set or three video grade cables) into those
jacks on the set-top box and to the Klispch system’s
SAT/CABLE/HD
INPUT COMPONENT
jacks (Y to Y; PB to PB, PR to PR). To use this
option, you must also connect the corresponding Y, P
B, PR OUTPUT
from the Klipsch controller’s “VIDEO OUTPUT” section to your TV to
ensure that you get a picture. These cables have not been included
with the Klipsch system.
If the set-top box has a VIDEO (yellow)
OUTPUT jack for video, plug
the yellow video cable into that jack and to the Klipsch system’s
SAT/CABLE/HD INPUT COMPOSITE (yellow) jack.
1.
2.
A.
B.
SUB
CABLE IN
O U T P U T S
VIDEO S-VIDEO
COMPONENT
Y PB PR
CABLE BOX (shown)
DIGITAL
COAXIAL OPTICAL
AUDIO
L R
CABLE IN
CABLE SIGNAL
- OR -
- OR -
- OR -
2A
2B
3C
3B
3A
KLIPSCH CONTROLLER

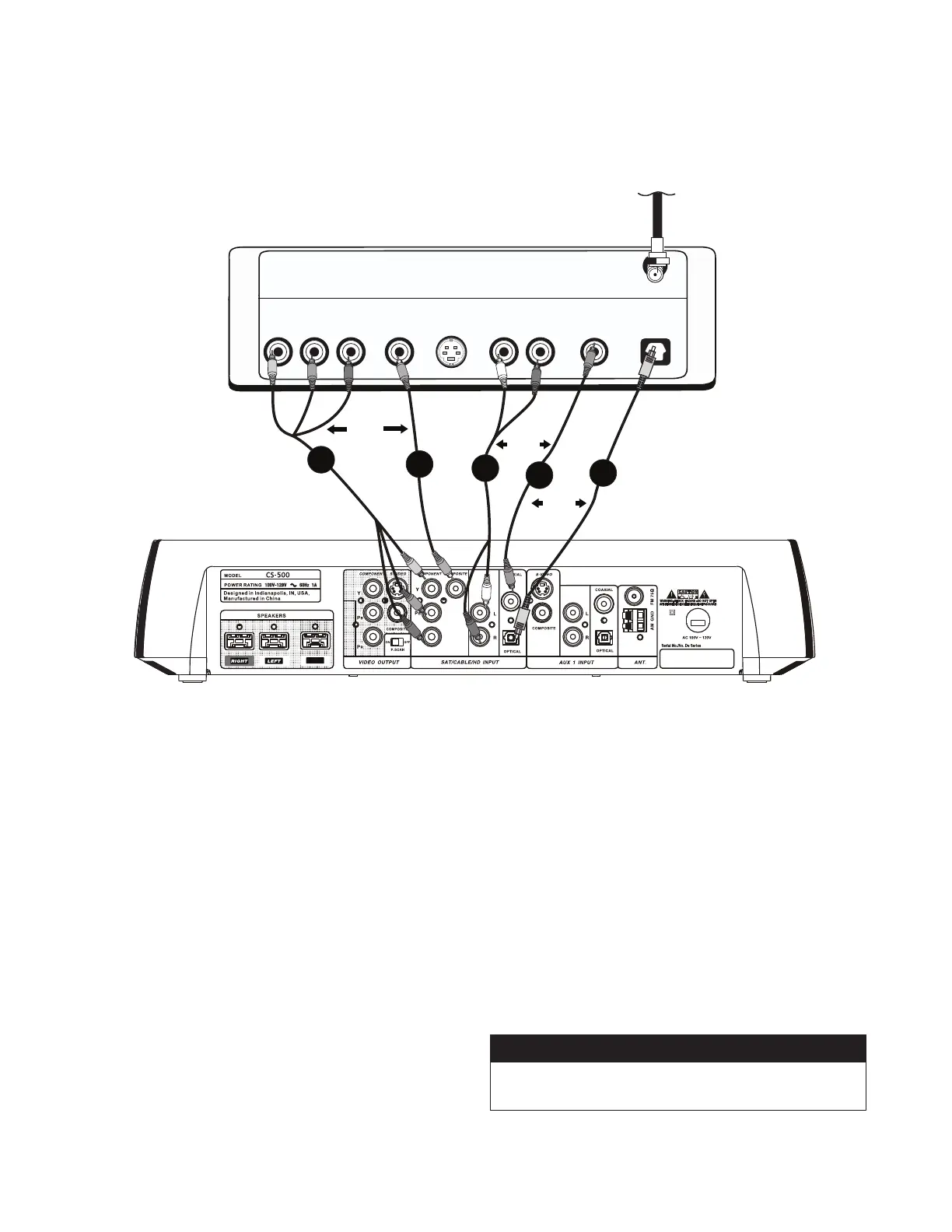

STEP 3A: Set-Top Box Connection
Connect the AUDIO—look at the options available on the set-top box
and choose 3A, 3B, or 3C.
Connect audio cables to the AUDIO LEFT (white) and AUDIO
RIGHT (red) jacks on the back of the set-top box and to the Klipsch
system’s
SAT/CABLE/HD INPUT Left ( white) and Right (red) jacks.
If the set-top box has Digital Audio (
COAXIAL ), connect appropriate
cable to the set-top box AUDIO COAXIAL OUTPUT jack and to the
SAT/CABLE/HD INPUT COAXIAL jack.
If the set-top box has Digital Audio (
OPTICAL ), connect appropriate
cable (not supplied) to the Klipsch System’s
SAT/CABLE/HD INPUT
OPTICAL
jack. You will fi rst need to remove the plastic dust plug.
Note: If you connect a high definition Y, PB, PR INPUT, you must also
connect the corresponding Y, P
B, PR OUTPUT to your TV.
3.
A.
B.
C.
Use this connection if your TV has a cable box, satellite receiver or HD receiver set-top box connected to it.
See next page (3B) if no set-top box is used.
Please see appendix I (page 28) for the basics on how input
and output jacks work with your Klipsch system.
Input and Output Jacks
