Klipsch CS-500 User Manual

If your TV doesn’t have COMPONENT, but has S-VIDEO, connect
S-VIDEO cable (not supplied) to the Klipsch system’s
VIDEO OUTPUT
S-VIDEO
jack and to the corresponding S-VIDEO jack on the TV.
If your TV has COMPONENT INPUT jacks (Y, P
B, PR) connect the (not
supplied) corresponding cables (either bundled or three separate
video grade cables—yellow) to the Klipsch system’s
VIDEO OUTPUT
COMPONENT Y, P
B , P R jacks and to the corresponding input jacks on
the TV. To use this option, you must also connect the corresponding Y,
P
B, PR OUTPUT to your TV.
If your TV doesn’t have COMPONENT or S-VIDEO, connect the TV’s
VIDEO INPUT (yellow) to the Klipsch system’s COMPOSITE jack (yellow)
with the supplied cable.
1.
2.
3.
SUB
COMPOSITE
INPUT 1
L
R
S-VIDEO
V
INPUT 2
L
R
V
INPUT 3
P
B
Y
P
R
INPUT 4
P
B
Y
P
R
COMPONENT
OUTPUT
P B
Y
P
R
COMPONENT
AUDIO / VIDEO
OUTPUT
L
R
V
DIGITAL OPTICAL
OUTPUT
DIGITAL COAXIAL
OUTPUT
ANTENNA B
INPUT
ANTENNA A
INPUT
TV BACK PANEL
- OR -
- OR -
2
1
4
3
KLIPSCH CONTROLLER

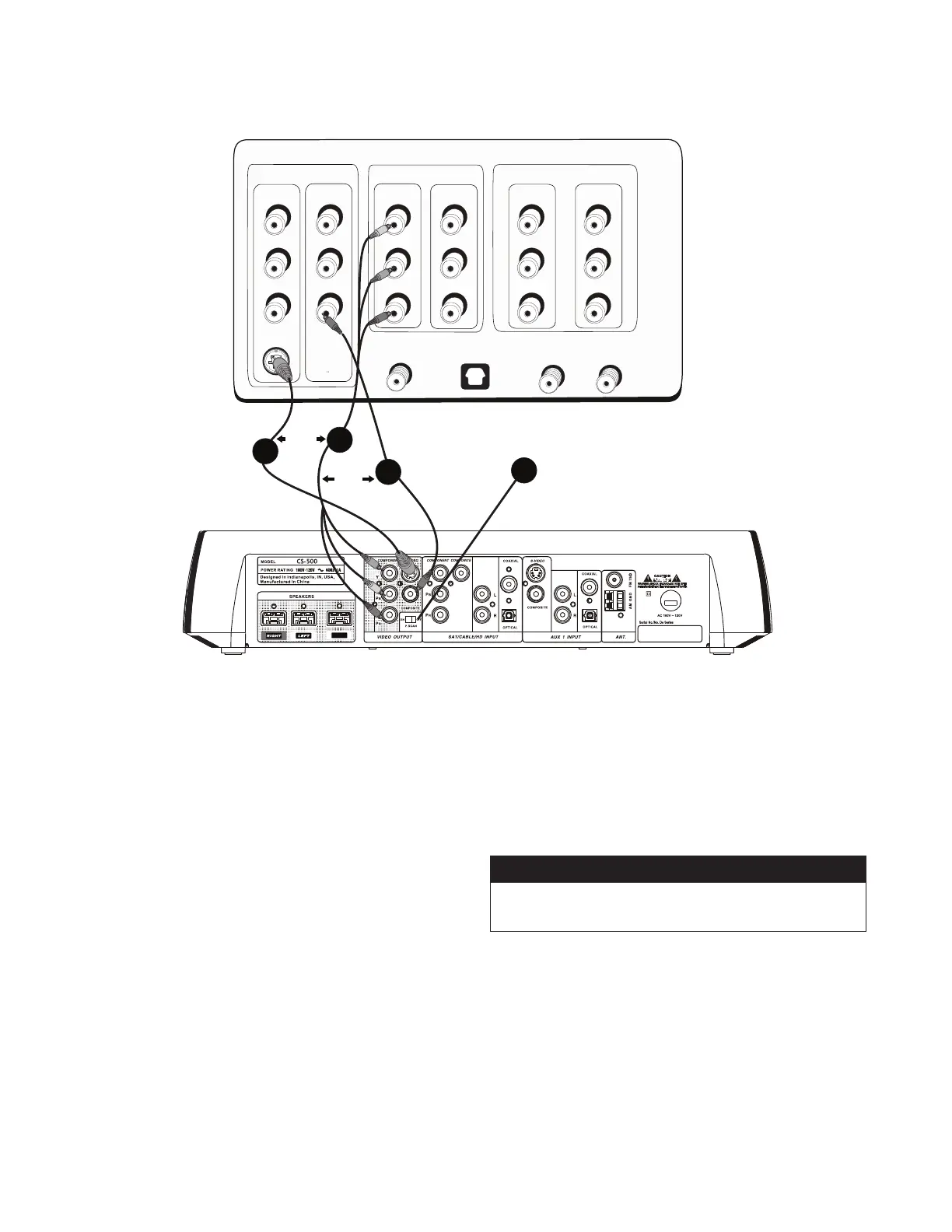

STEP 4: Connect Klipsch System to the TV's Input
Note: Until recently, TVs only had VIDEO INPUT jacks. Therefore, your TV
might not carry the "IN" or "Input" label even though it is an input.
If you’re using COMPONENT jacks and your TV supports progressive
scanning technology (see the TV owner’s manual if you don’t know
whether your TV is a progressive scan TV), slide the
P.S CA N switch
on the back of your Klipsch system to the
ON position. If you put the
P.S CA N switch in the ON position and your TV doesn’t support
progressive scan, you won’t see a picture on the TV screen.
4.
Please see appendix I (page 28) for the basics on how input
and output jacks work with your Klipsch system.
Input and Output Jacks
