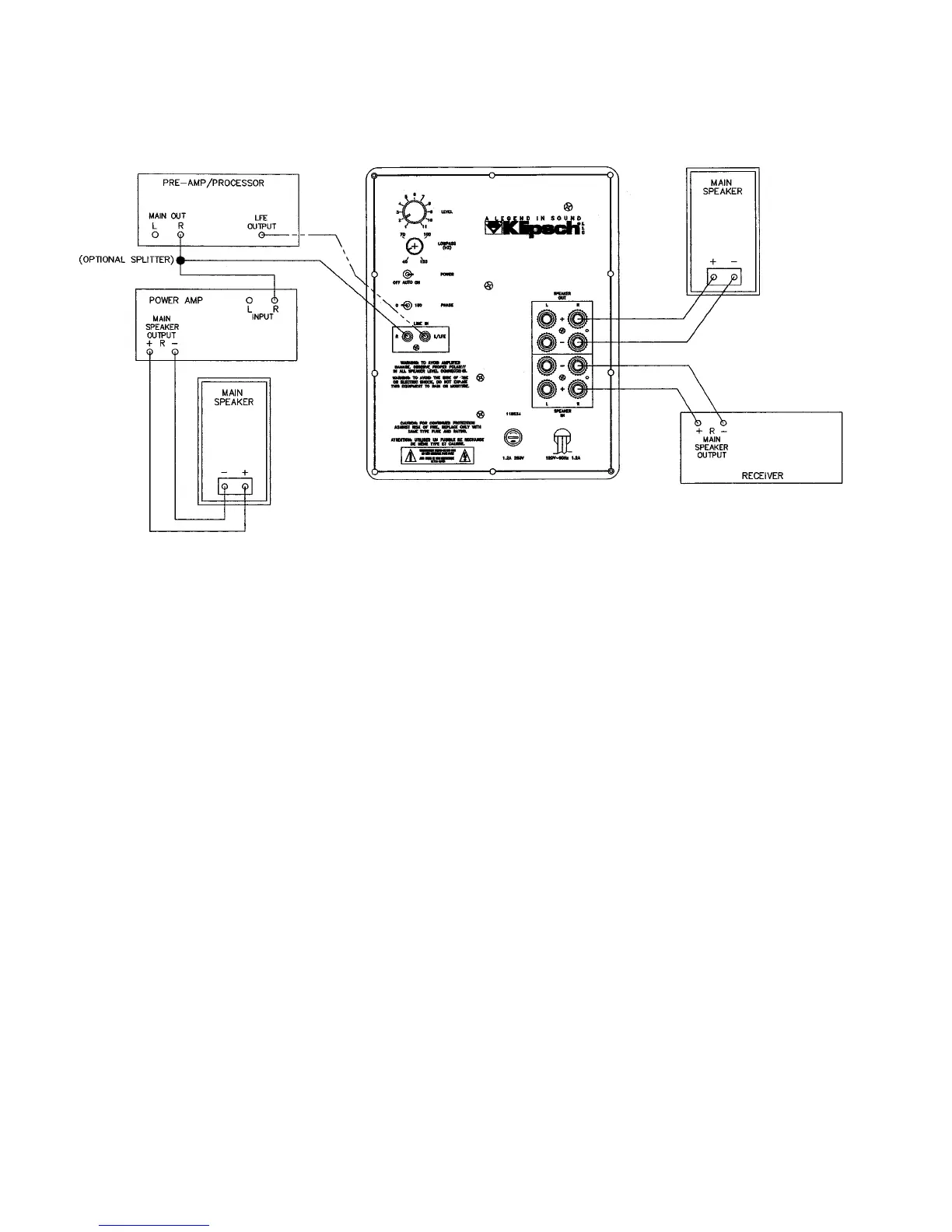

Figure B
KSW 12
INPUT PANEL
• Speaker Level Connections at Right / Main Speakers Limited Range
• Line Level Connections at Left / Main Speakers Full Range
• Optional LFE Connection, Compatible with Speaker and Line Level
Hookups —— - - ——
• One Channel Shown / Repeat for Opposite Channel
