Finalising the Assembly
Fttting Spikes
The loudspeakers are supplied with a set of long spikes and a
set of short spikes. All are adjustable and fit in the same way.
Spike seats with felt bases are supplied for use where spikes
are inappropriate, e.g. on stone, hardwood or marble floors.
The spikes may be fitted with sets of short spikes, sets of
long spikes or as a combination of two short spikes at the
front and two spikes at the rear to assist with imaging, (Refer
to the next page)
Method: Run the knurled collar halfway down the
threaded shaft away from the spike point. Insert the shaft
into the plinth and screw in tight. Now run the collar up to
the plinth and lock it finger tight. Repeat for all four spikes.
Hint: If you feel that you may have to move the speakers around a lot before you get them exactly right, it is advisable
to start out with the spikes resting in their spike seats. This will allow you to easily slide the speakers on a hard floor
surface After finalizing the speaker position, you can then mark the position of the feet and remove the spike seats..
Dressing the Cables
If there is more than one cable to each loudspeaker, gather them and lay them side by side. Make sure you
have identification on all the cables. Ensure the cables are connected the same way round with no loose or
faulty connections. Leave a small amount of slack and then bring the cables out between the spikes. It may be
helpful to tape bi- or tri- wired sets side by side to the underside of the plinth to stop them interfering with the
spikes.
Standing the Loudspeakers Upright
With the help of an assistant lift the speakers into the vertical position. The feet must be secure as there will be
a large amount of pressure on the two spikes which come into first contact with the floor.
Remove the top packing piece and the protective bag from the loudspeaker. Be careful to avoid touching any
of the drivers.
You should now level the loudspeaker. If the floor is not perfectly level you will find that one spike is off the
ground. Starting with this spike and with the help of a spirit level you should now adjust the spikes so the
speakers do not wobble and are not at an angle. Try and get the speakers to the same height if at all possible.
Final Connections
Now connect the loudspeakers to the amplifier/s using the diagrams on pages 8-11 to help you.
You are now ready to enjoy your music!

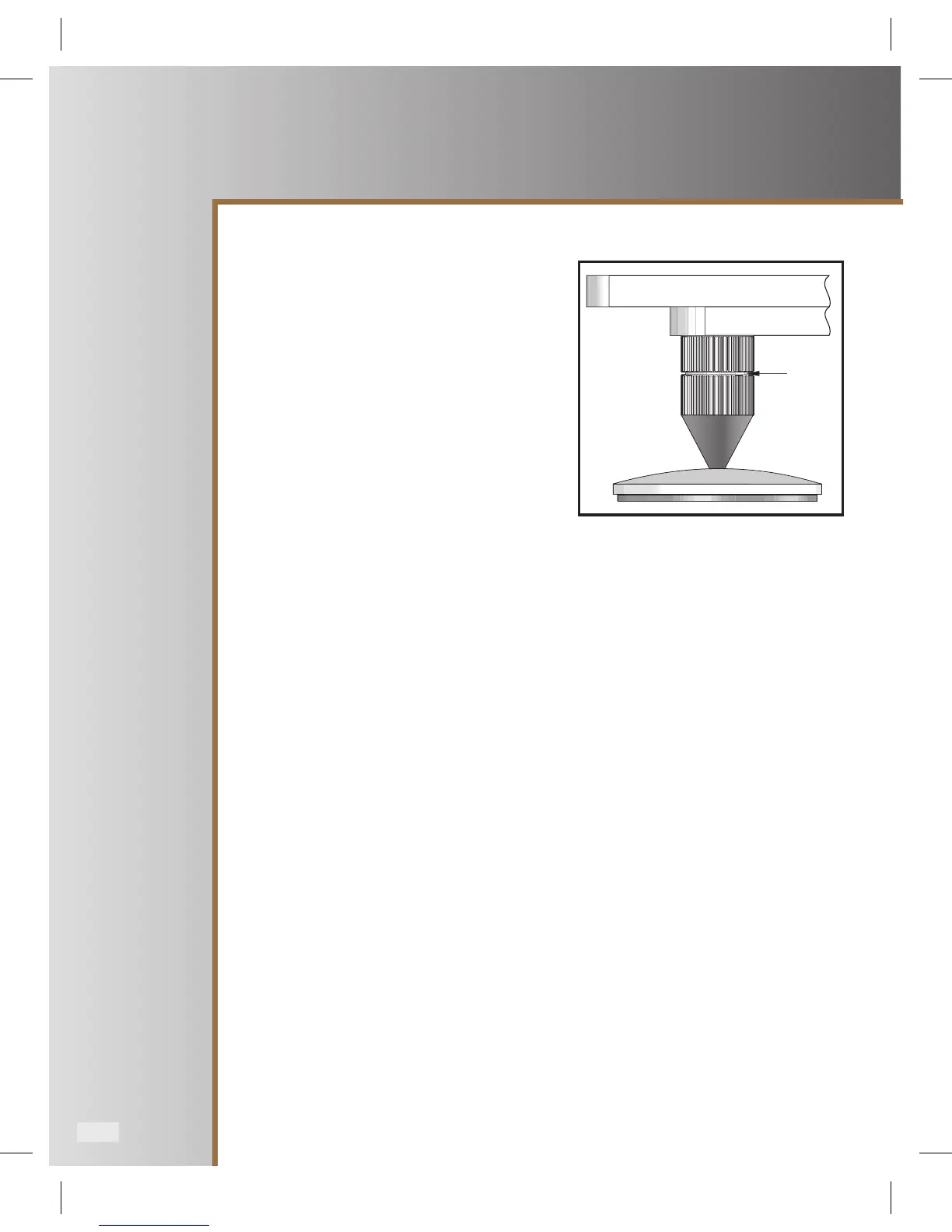

Spike Seat
