Klipsch R-101SW User Manual

POSITIONING YOUR REFERENCE SUBWOOFER
Klipsch powered subwoofers are designed to reproduce deep bass
and deliver the impact that makes your movies and music come
alive. For optimum performance, place your subwoofer in a corner of
the room on the same wall as your front channel speakers. (refer to
Figure 1). Please note that room placement can have a dramatic effect
on the performance of your powered subwoofer. Corner placement,
as suggested above, will increase the amount of bass output, while
placing the subwoofer along the middle of a wall, or out in the room
will decrease the amount of bass output. Experiment with a number
of different placement options and control settings to find the one
that best suits your particular room and taste. When choosing your
subwoofer’s location, keep in mind that you will need to connect the
subwoofer’s built-in amplifier to an AC power outlet.
S
S
TV
C
L
R
X
Y
Z
X=Y=Z
S
S
S
L R
S
S

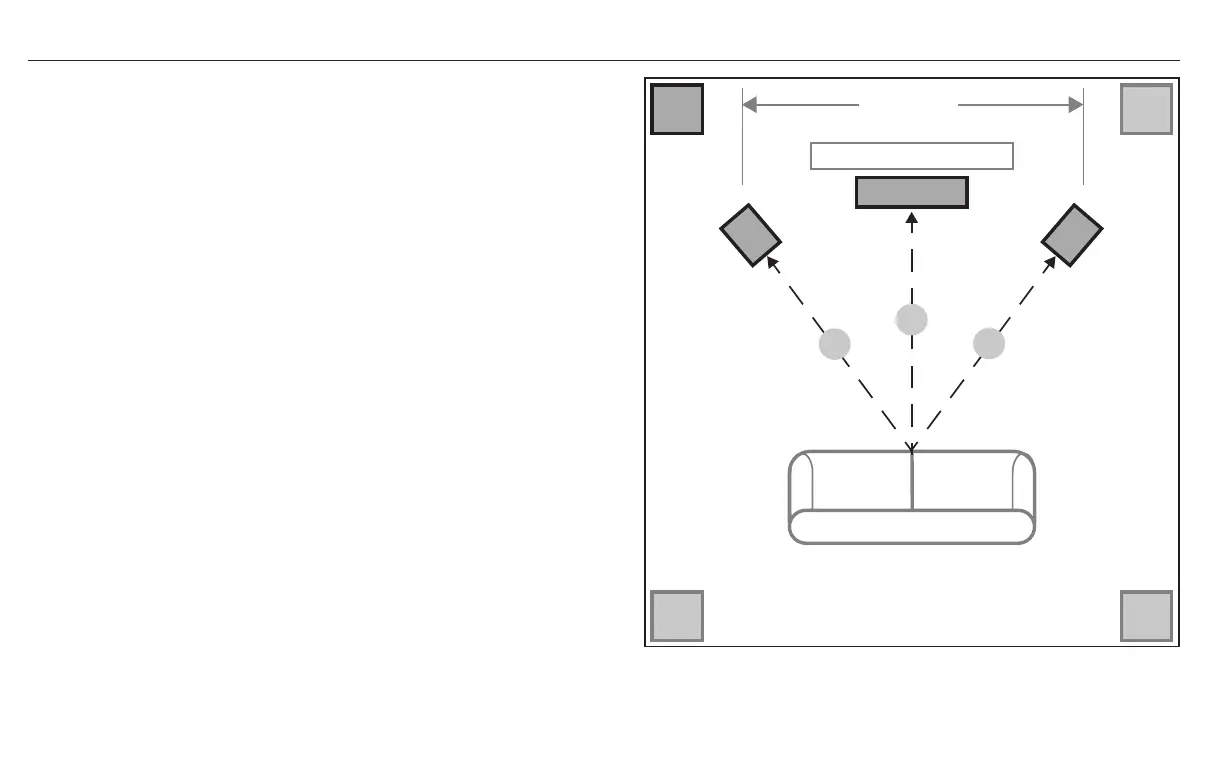

FIGURE 1
SPEAKER PLACEMENT IN LISTENING AREA
6’ - 15’
Sub
+ Optional
Sub
+ Optional
Sub
+ Optional
Sub

Klipsch R-101SW Specifications

General

Phase shift	0 - 180 °
Subwoofer type	Active subwoofer
Low pass filter	Yes
Number of subwoofers	1
Subwoofer peak power	300 W
Subwoofer sensitivity	115 dB
Subwoofer frequency range	29.5 - 120 Hz
Subwoofer driver diameter (imperial)	10 \
Material	MDF
Product color	Black

Weight and Dimensions

Subwoofer depth	500 mm
Subwoofer width	356 mm
Subwoofer height	370 mm
Subwoofer weight	13900 g
