REFERENCE SUBWOOFERS
POSITIONING YOUR REFERENCE SUBWOOFER
Klipsch powered subwoofers are designed to reproduce deep bass
and deliver the impact that makes your movies and music come
alive. For optimum performance, place your subwoofer in a corner of
the room on the same wall as your front channel speakers. (refer to
Figure 1). Please note that room placement can have a dramatic effect
on the performance of your powered subwoofer. Corner placement,
as suggested above, will increase the amount of bass output, while
placing the subwoofer along the middle of a wall, or out in the room
will decrease the amount of bass output. Experiment with a number
of different placement options and control settings to find the one
that best suits your particular room and taste. When choosing your
subwoofer’s location, keep in mind that you will need to connect the
subwoofer’s built-in amplifier to an AC power outlet.

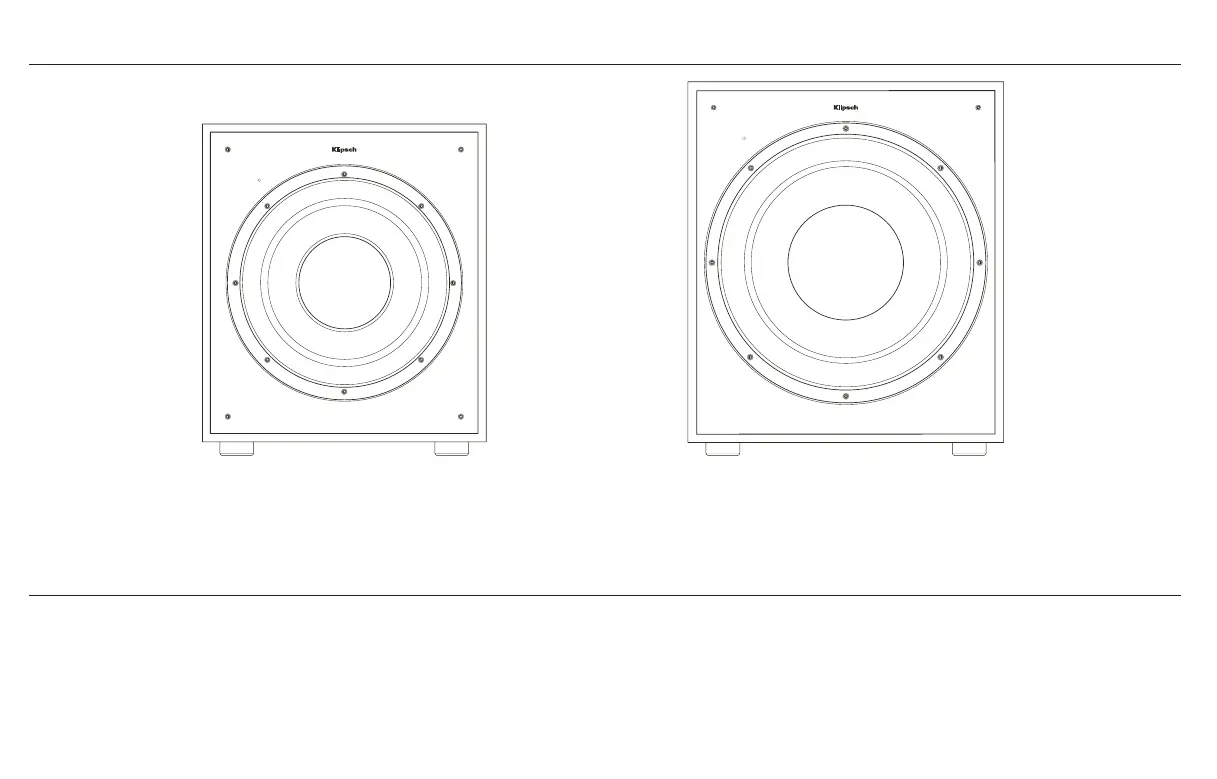

R-100SW R-120SW
S
S
TV
C
L
R
X
Y
Z
X=Y=Z
S
S
FIGURE 1
SPEAKER PLACEMENT IN LISTENING AREA
6’ - 15’
Sub
+ Optional
Sub
+ Optional
Sub
+ Optional
Sub
We want your new speaker system to look as good as it did leaving
the factory! Please check promptly for any transit damage. Carefully
unpack your new speaker system and verify the components against
the packing list. In extreme circumstances, items may have become
damaged in transit. If any damage is discovered, notify the delivery
service and dealer where the system was purchased. Make a request
for inspection, and follow their instructions for evaluation. Be sure to
keep the product’s original shipping carton.
