Klipsch REFERENCE Theater 5.1 User Manual

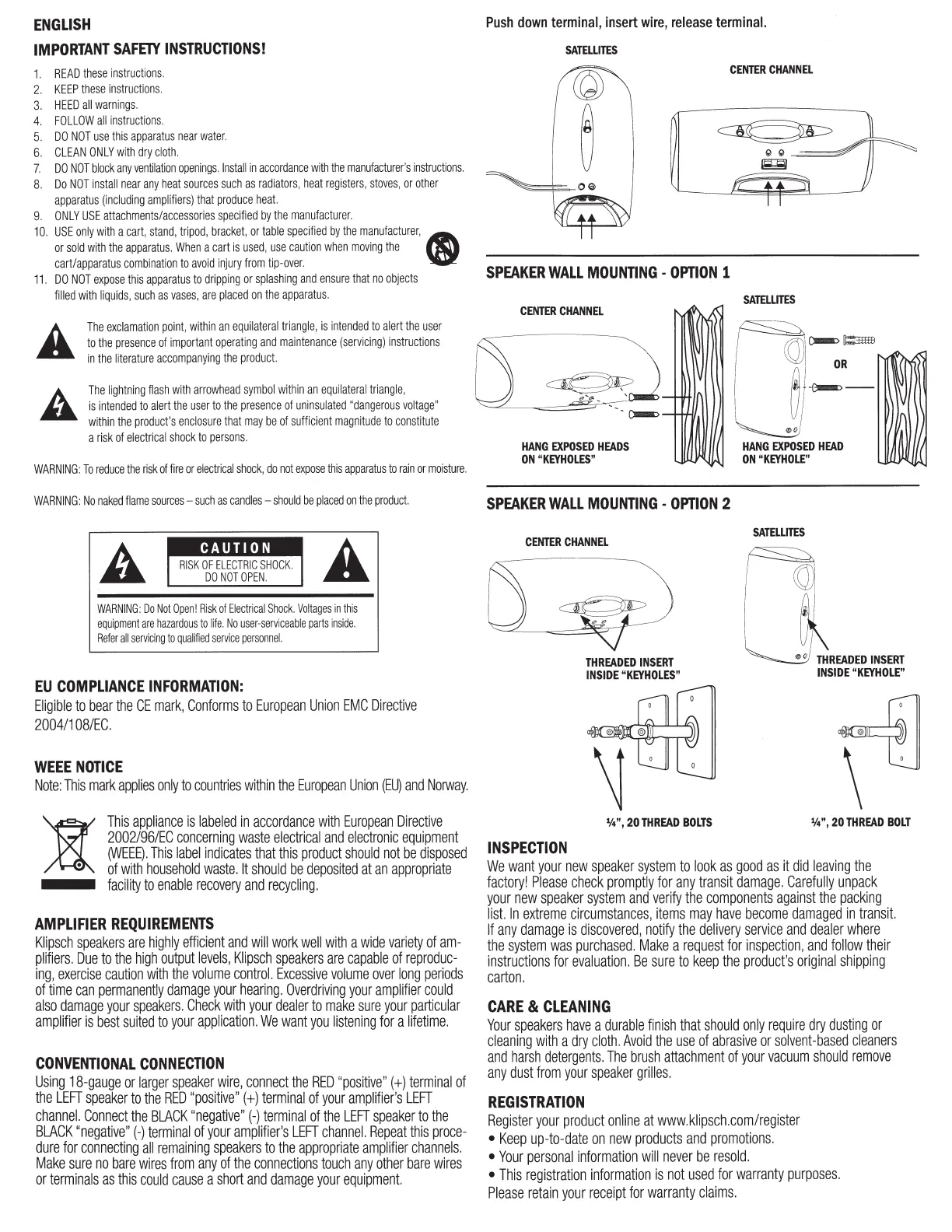

ENGLISH
IMPORTANT SAFETY INSTRUCTIONS!
1. READ these instructions.
2. KEEP these instructions.
3. HEED all warnings.
4. FOLLOW all instructions.
5. DO NOT use this apparatus near water.
6. CLEAN ONLY with dry cloth.
7. DO NOT block any ventilation openings. Install in accordance w ith the manufacturer's instru ct ions.
8. Do NOT install near any heat sources such as radiators , heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. ONLY USE attachments/accessories specified by the manufacturer.
10. USE only with a cart, stand , tripod, bracket, or table specified by the manufacturer, •
or sold with the apparatus . W he n a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
11. DO NOT expose this apparatus to dripping or splashing and ensure that no objects
filled with liquid s, such as vases , are placed on the apparatus.
The exclamation point, within an equilateral triangle, is intended to alert the user
to the presence of imp o rtant operating and maint ena nce (servicing) instructi ons
in the literature accompanying the product.
The lightning flash with arrowhead symbol within an equilateral triangle ,
is intended to a lert the user to the presence of uninsulated "dangerous voltage "
within the product's enclosure that may be of sufficient magnitude to constit ut e
a
risk of electrica l shock to persons.
WARNING: To reduce the risk of fire or electrical shock, do not expose this apparatus to rain or mo is ture.
WARNING: No naked flame sources- such as candles- should be placed on the product.
WARNING: Do Not Open! Ri sk of Electrical Shock . Voltages in this
equipment are ha za rd ous to life. No user-serv i ceable parts ins ide.
Refer a ll servicing to qualified service personnel.
EU COMPLIANCE INFORMATION:
Eligible to bear the CE mark, Conforms to European Union EMC Directive
2004/1 08/EC.
WEEE NOTICE
Note: This mark applies only to countries within the Euro pe an Union (EU) and Norway.
This appliance is labeled in accordance with European Directive
2002/96/EC concerning waste electrical and electronic equip me nt
(WEEE). This label indicates that this product should not be disposed
of with household wa ste . It should be deposited at an appropriate
facility to enable r eco very and recycling .
AMPLIFIER REQUIREMENTS
Klipsch spea kers are highly efficient and will work well with a wide variety of am-
plifiers. Due to the high output levels , Klipsch spea kers are capable of reproduc-
ing , exercise cau tion with the volume control. Excess i ve volume over long pe r iods
of time can permanently damage your hearing. Overdriving your amplifier could
also damage your speakers . Check with your dealer to make su re your particular
amplifier is best su ited to your a pplication. We want you li ste ning for a lif e time.
CONVENTIONAL CONNECTION
Using 18 - gauge or larger speaker wire, connect th e RED "positive"( +) t erm inal of
the LEFT speaker to the RED "positive"(+) terminal of your a mplifier's LEFT
channel. Connect the BlACK "negative "( -) terminal of the LEFT speaker to the
BlACK "negat ive"(-) terminal of your amplifier's LEFT c hannel . Repeat thi s proce -
dure for connecting all remaining speakers to the appropriate amplifier channe l s.
Make sure no bare wires from any of the connections touch any other bare wi re s
or terminal s as this cou ld cause a s hort and damage your eq uipm ent.
Push down terminal, insert wire, release terminal.
SATELLITES
CENTER CHANNEL
SPEAKER WALL MOUNTING - OPTION 1
CENTER CHANNEL
HANG EXPOSED HEADS
ON "KEYHOLES"
SPEAKER WALL MOUNTING - OPTION 2
CENTER CHANNEL
INSPECTION
THREADED INSERT
INSIDE "KEYHOLES"
'14", 20THREAD BOLTS
SATELLITES
:~
! . 0\ 1 ()BilliB:> [J:::lmB
' •\ u.
i \.';{ ;; OR
I
I fl , I
'· '·
i ( "; -i)llalo-
I I:
I J!
~
HANG EXPOSED HEAD
ON "KEYHOLE"
SATELLITES
~~
1 (Q "'•r .. ' ,,
r ~
~ THREADED INSERT
INSIDE "KEYHOLE"
'14", 20 THREAD BOLT
We want your ne w speaker system to look as good as it did le a ving the
factory! Please check promptly for a ny tran sit damage. Ca ref ully unpack
your new speaker system and veri fy the components against the packing
li s t. In extreme circumstances , items may have become damaged in tran s it.
If any damage is discovered , notify the delivery service and dealer wher e
th e system was purchased . Make a request for inspe ction, and follow their
instruction s fo r evaluation . Be sure to keep the product's orig i nal shipping
carton.
CARE & CLEANING
Your speakers have a durable finish t ha t sho uld only require dry dusting or
cleaning with a dry cloth. Avoid the use of abrasive or so lv e nt - based cleaners
and harsh detergents. T he brush a ttachment of your v acuum should remov e
any dust from your speaker grilles.
REGISTRATION
Register your product online at www.klipsch.com/register
• Keep up-to-date on new products a nd promotions.
• Your personal information will never be resold.
• This registration inform a tion is not used for warranty purposes.
Please re ta in your receipt for w arran ty claims.

Klipsch REFERENCE Theater 5.1 Specifications

General

Product color	Black, Gold
RMS rated power	- W
Recommended usage	Home theatre
Audio output channels	5.1 channels
Amplification device included	Yes
Amplification device form factor	Built-in
Satellite speaker type	2-way
Satellite speaker weight	1400 g
Number of satellite speakers	2
Satellite speaker peak power	200 W
Satellite speakers RMS power	50 W
Satellite speaker sensitivity	91 dB
Satellite speaker frequency range	110 - 23000 Hz
Satellite speaker woofers quantity	1
Satellite speaker dimensions (WxDxH)	111 x 137 x 197 mm
Satellite speaker woofer diameter (imperial)	3.5 \
Center speaker weight	2300 g
Center speaker RMS power	75 W
Center speaker peak power	300 W
Center speaker sensitivity	94 dB
Center speaker dimensions (WxDxH)	273 x 137 x 111 mm
Bluetooth	-
Connectivity technology	Wired & Wireless
Subwoofer weight	6800 g
Subwoofer sensitivity	108 dB
Subwoofer frequency range	38 - 120 Hz
Subwoofer dimensions (WxDxH)	299 x 299 x 337 mm
Subwoofer driver diameter (imperial)	8 \
