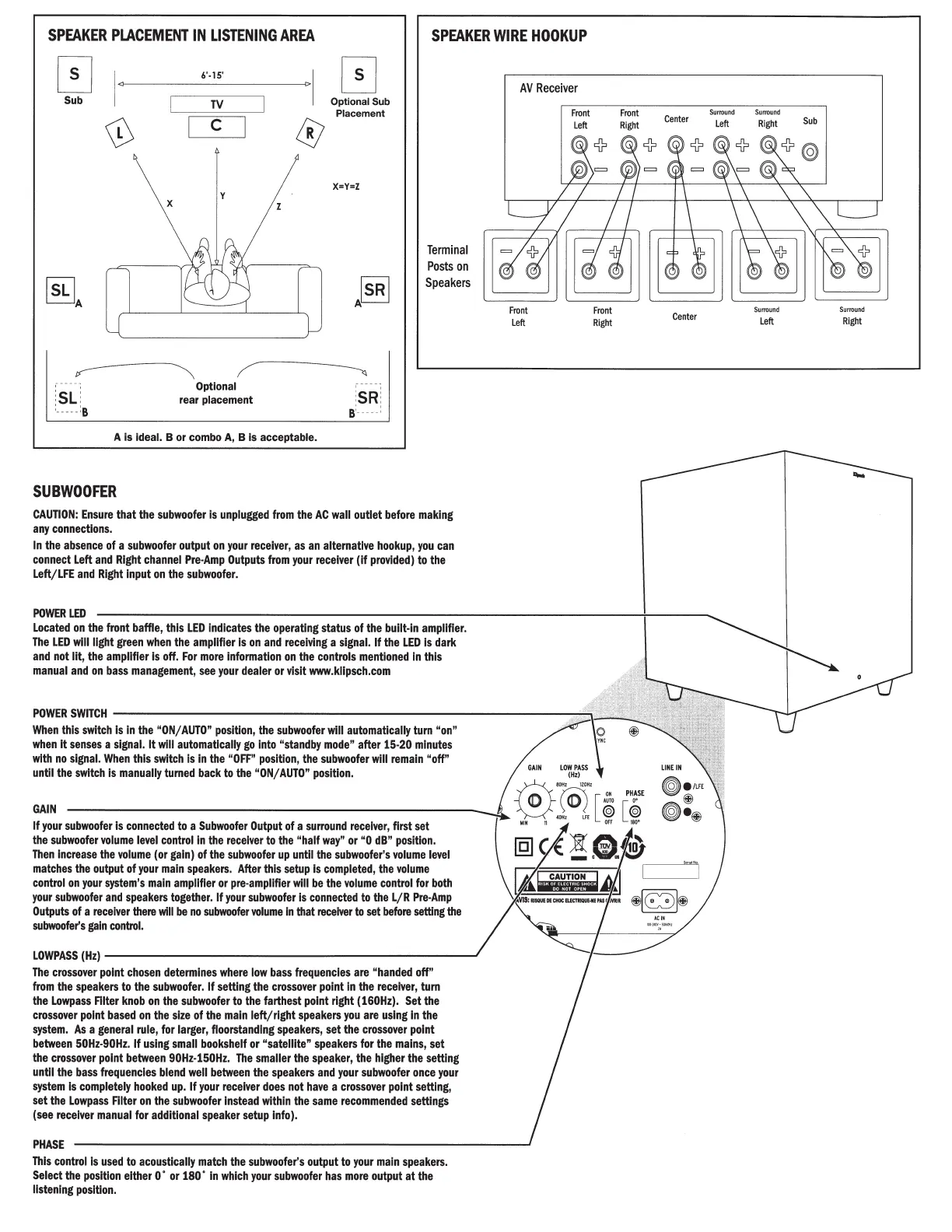

SPEAKER
PLACEMENT
IN
LISTENING
AREA
SPEAKER
WIRE
HOOKUP
0
I
Sub
0
6'-15'
I
TV
X
I
c
y
Optional
rear
placement
I
@
A
is
Ideal.
B
or
combo
A,
B
is
acceptable.
SUBWOOFER
0
Optional
Sub
Placement
X=Y=Z
SR
i
B'
··---·
Terminal
Posts
on
Speakers
CAUTION:
Ensure
that
the
subwoofer
Is
unplugged
from
the
AC
wall
outlet
before
making
any
connections.
In
the
absence
of
a
subwoofer
output
on
your
receiver,
as
an
alternative
hookup
,
you
can
connect
Left
and
Right
channel
Pre-Amp
Outputs
from
your
receiver
(if
provided)
to
the
Left/LFE
and
Right
input
on
the
subwoofer.
POWER
LED
Located
on
the
front baffle, this
LED
Indicates
the
operating
status
of
the
built-In
amplifier.
The
LED
will light
green
when
the
amplifier
Is
on
and
receiving
a
signal.
If
the
LED
is
dark
and
not lit,
the
amplifier
Is
off.
For
more
information
on
the
controls
mentioned
in this
manual
and
on
bass
management,
see
your
dealer
or
visit
www.kllpsch.com
AV
Receiver
Front
Left
Front
Left
Front
Right
Front
Right
POWER
SWITCH
---------------------------:::t::\
~!!!:~.tl!
When
this
switch
Is
In
the
"ON/
AUTO"
position,
the
subwoofer
will
automatically
tum "on"
when
It
senses
a
signal.
It will
automatically
go
Into
"standby
mode"
after
15-20
minutes
with
no
signal.
When
this
switch
is
in
the
"OFF"
position,
the
subwoofer
will
remain
"off"
until
the
switch
is
manually
turned
back
to
the
"ON/
AUTO"
position.
GAIN
If
your
subwoofer
is
connected
to
a
Subwoofer
Output
of
a
surround
receiver,
first
set
the
subwoofer
volume
level
control
In
the
receiver
to
the
"half
way"
or
"0
dB"
position.
Then
Increase
the
volume
(or
gain)
of
the
subwoofer
up
until
the
subwoofer's
volume
level
matches
the
output
of
your
main
speakers.
After
this
setup
Is
completed,
the
volume
control
on
your
system's
main
amplifier
or
pre-amplifier
will
be
the
volume
control
for
both
your
subwoofer
and
speakers
together.
If
your
subwoofer
is
connected
to
the
L/R
Pre-Amp
Outputs
of a
receiver
there
will
be
no
subwoofer
volume
in
that
receiver
to
set
before
setting
the
subwoofer's
gain
control.
LOWPASS
(Hz)--------------------___,
The
crossover
point
chosen
determines
where
low
bass
frequencies
are
"handed
off"
from
the
speakers
to
the
subwoofer.
If setting
the
crossover
point
In
the
receiver,
tum
the
Lowpass
Filter
knob
on
the
subwoofer
to
the
farthest
point
right
(160Hz).
Set
the
crossover
point
based
on
the
size
of
the
main
left/
right
speakers
you
are
using
in
the
system.
As
a
general
rule,
for
larger,
floorstandlng
speakers,
set
the
crossover
point
between
50Hz-90Hz.
If
using
small
bookshelf
or
"satellite"
speakers
for
the
mains,
set
the
crossover
point
between
90Hz-150Hz.
The
smaller
the
speaker,
the
higher
the
setting
until
the
bass
frequencies
blend
well
between
the
speakers
and
your
subwoofer
once
your
system
is
completely
hooked
up.
If
your
receiver
does
not
have
a
crossover
point
setting,
set
the
Lowpass
Filter
on
the
subwoofer
Instead
within
the
same
recommended
settings
(see
receiver
manual
for additional
speaker
setup
info).
PHASE
This
control
is
used
to
acoustically
match
the
subwoofer's
output
to
your
main
speakers.
Select
the
position
either 0 •
or
180
•
In
which
your
subwoofer
has
more
output at
the
listening
position
.
GAIN
Center
Cente
r
Surround
Left
Surround
Right
SUrround
Left
Sub
Surround
Right
