THE MACHINE AND THE PELLETS
Components of the appliance
The appliance is delivered with the following equipment:
- No. 1 - User, installation and maintenance guide;
- No. 1 - Power supply cable;
- No. 1 - Front heat exchanger cleaning hook;
- No. 1 - Remote control.

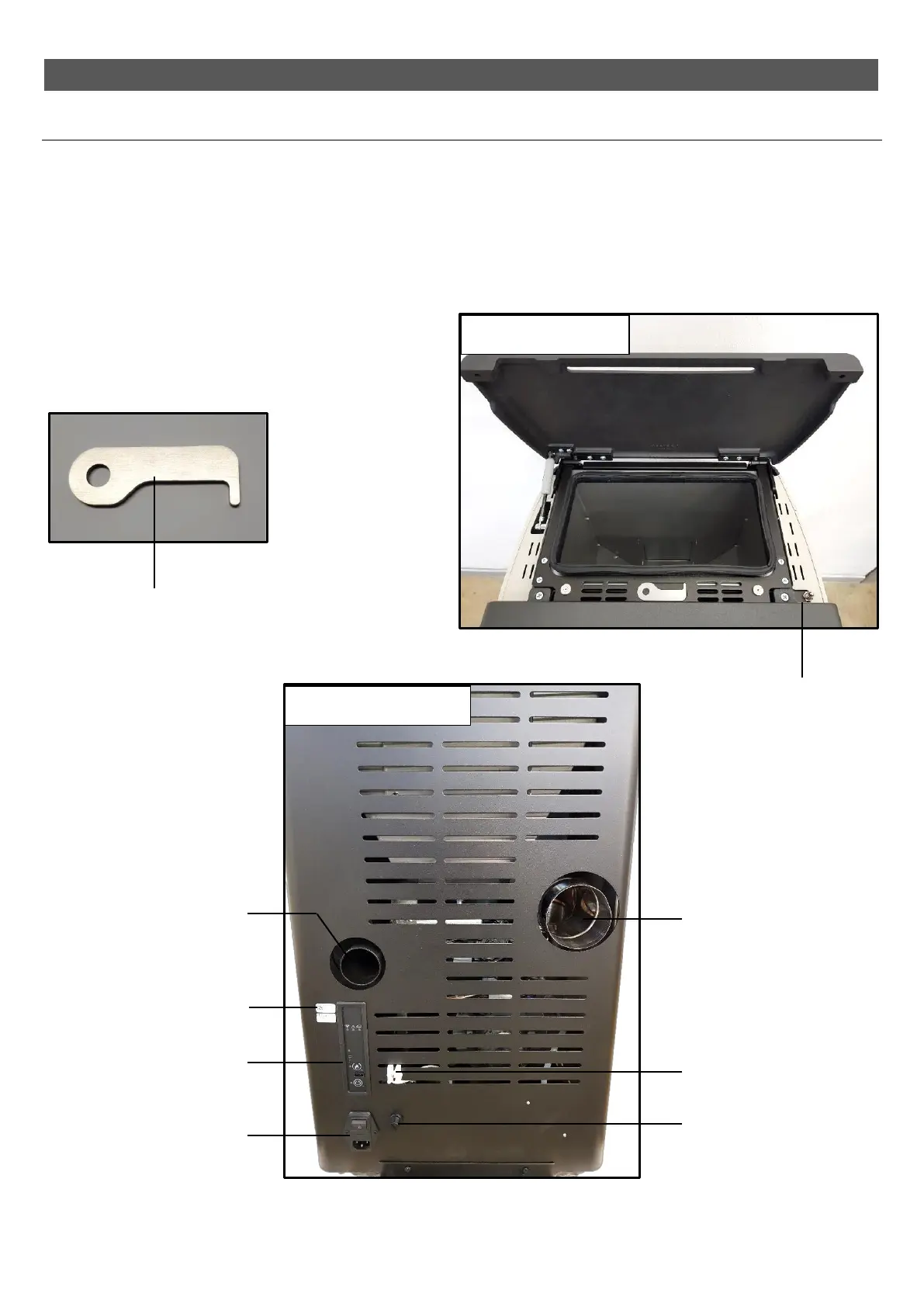

The following images show some details of the appliance:
Microswitch for closing
tank cover.
VIEW FROM ABOVE
Anti-interference filter
Main switch, connection for
power supply cable with 2 built-in
fuses (4A 250V).
Flue gas outlet.
Intake pipe.
Support panel.
Wi-Fi information
(Mac address and
Registration code).
Safety thermostat with
manual reset.
R.T. terminal Room
thermostat connection.
Front heat exchanger
clean
hook.
REAR VIEW
