BAC-9000 Series Controller Installation Guide 7 921-019-01F
SETUP PROCESS
KMC
CONTROLS
TOOL
Cong-
uration
Programming
(Control Basic)
Web Page
Graphics*

Conquest
NetSensor

Internal con-
guration web
pages in Con-
quest Ethernet
“E” models**

KMC Connect
Lite
™
(NFC)
app***
 
KMC Con-
nect
™
software
**** **** 
TotalControl
™
software
 
KMC Con-
verge
™
module
for Niagara
WorkBench

KMC Con-
verge GFX
module for
Niagara Work-
Bench
*Custom graphical user-interface web pages can be
hosted on a remote web server, but not in the
controller.
**Conquest Ethernet-enabled “E” models with the
latest rmware can be congured with an HTML5
compatible web browser from pages served from
within the controller. For information, see the Con
quest Ethernet Controller Conguration Web
Pages Application Guide.
***Near Field Communication via enabled smart
phone or tablet running the KMC Connect Lite app.
****Full conguration and programming of KMC
Conquest controllers is supported starting with
TotalControl ver. 4.0.

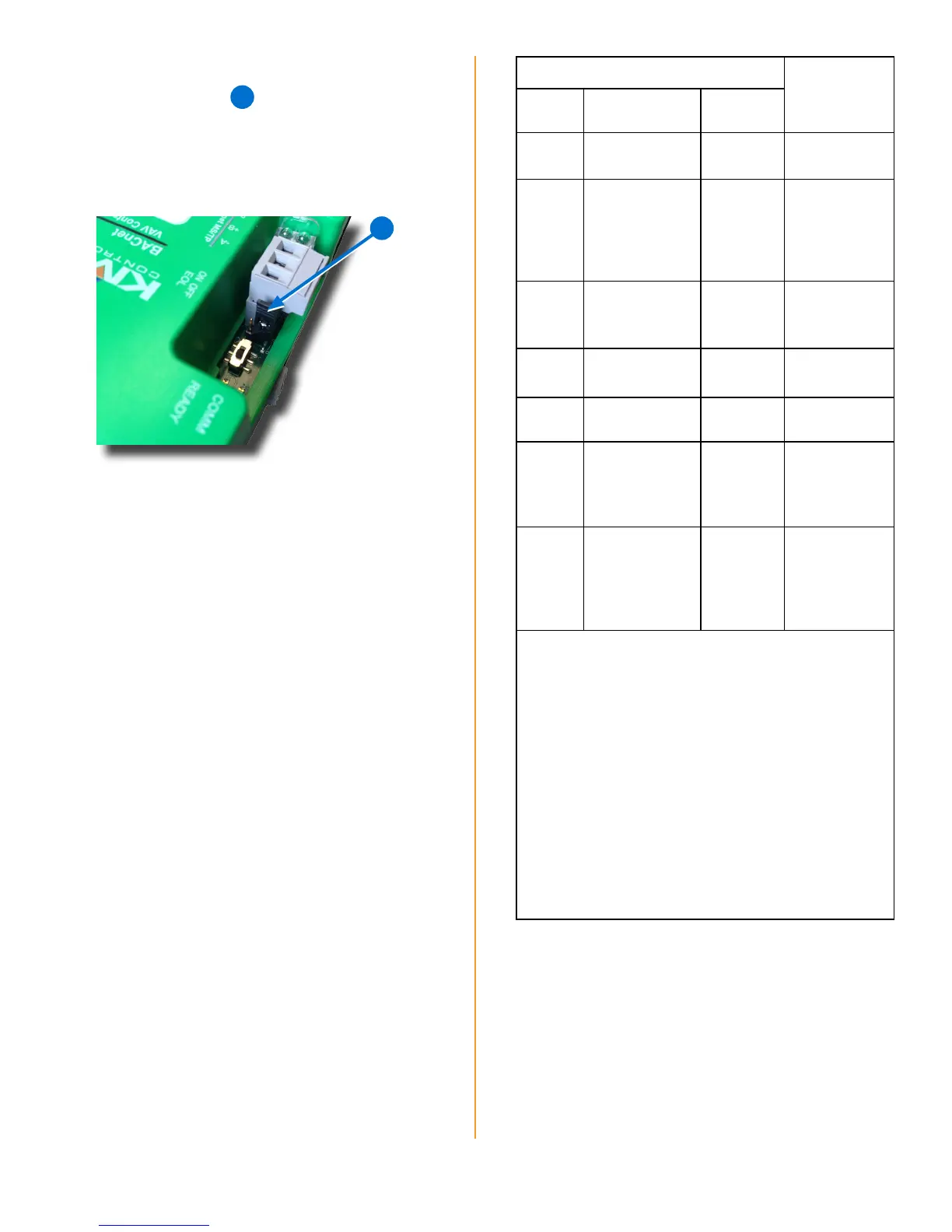

WATCH DOG JUMPER
The watch dog jumper
33
resets the controller
if there is a power failure or a communication
timeout between the controller and the network.
Never remove the jumper (from the two outer
pins).
33
CONFIGURE/PROGRAM THE CONTROLLER
See the table (on the next page) for the most
relevant KMC Controls tools for conguring,
programming, and/or creating graphics for the
controller. See the tools’ documents or Help
systems for more information.
NOTE: After the controller has been
congured, an STE-6010/6014/6017
series analog sensor can be connected
to the controller in place of an STE-
9000 series digital NetSensor.
NOTE: A BAC-9001CE can be congured by
connecting an HTML5-compatible
web browser to the controller’s default
IP address (192.168.1.251). See
the Conquest Ethernet Controller
Conguration Web Pages Application
Guide for more information about the
built-in conguration web pages.
