BAC-9300 Series Controller Installation Guide 3 925-019-02G

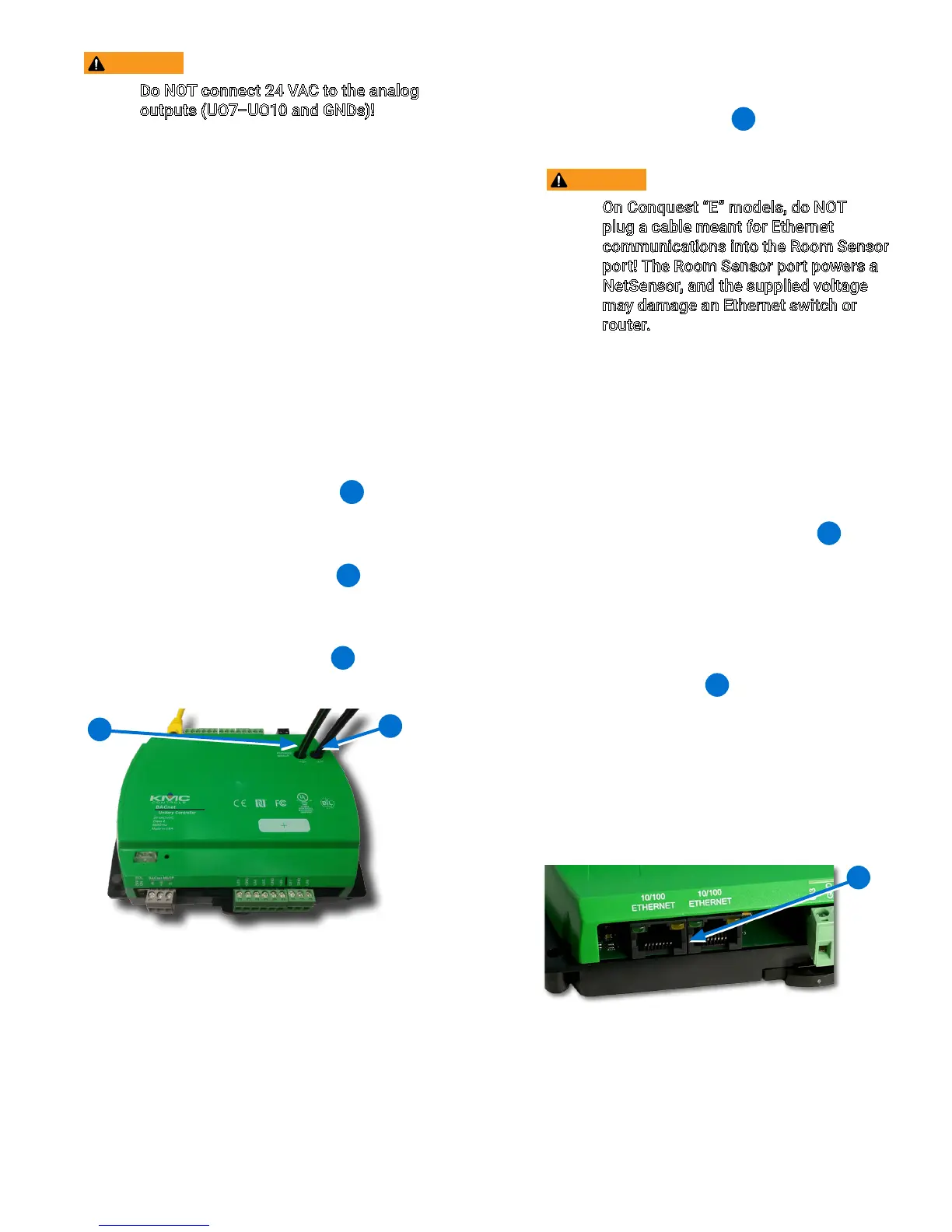

CONNECT (OPT.) ETHERNET NETWORK
1. For BAC-93x1CE models (only), connect
an Ethernet patch cable
14
to the 10/100
ETHERNET port (“E” models only).
CAUTION
On Conquest “E” models, do NOT
plug a cable meant for Ethernet
communications into the Room Sensor
port! The Room Sensor port powers a
NetSensor, and the supplied voltage
may damage an Ethernet switch or
router.
NOTE: The Ethernet patch cable should be
T568B Category 5 or better and a
maximum of 328 feet (100 meters)
between devices.
NOTE: Before May 2016, BAC-xxxxCE models
had a single Ethernet port. They now
have dual Ethernet ports, enabling
daisy-chaining of controllers
14
. See
the Daisy-Chaining Conquest Ethernet
Controllers Technical Bulletin on
the KMC Partner web site for more
information.
NOTE: On newer models, the Room Sensor
port is yellow
8
instead of black to
help differentiate it from the black
Ethernet ports.
NOTE: For more information, see Sample
(BAC-9311) Wiring on page 7 and the
YouTube video KMC Conquest Wiring:
BAC-9300 Series Unitary Controllers.
14
CAUTION
Do NOT connect 24 VAC to the analog
outputs (UO7–UO10 and GNDs)!
NOTE: Use 24 VAC (only) with triac outputs
(BO1–BO6 with SCs).
CONNECT (OPT.) PRESSURE FLOW SENSOR
NOTE: Complete the steps in this section to
connect an air flow sensor to the BAC-
9311/9311C/9311CE controller.
NOTE: BAC-9301/9301C/9301CE controllers
do not have PRESSURE SENSOR ports.
NOTE: Use 1/4 inch (6.35 mm) FR tubing.
Tubing should not be longer than 6 feet
(20 meters).
1. Remove the black shipping plugs
9
from the
PRESSURE SENSOR ports.
2. Connect the high pressure tube from the
pressure flow sensor to the HIGH
12
port on
the controller.
3. Connect the low pressure tube from the
pressure flow sensor to the LOW
13
port on
the controller.
13
12
