NOTE: To remove the controller, pull the DIN
Latch until it clicks once and lift the
controller off the DIN rail.
6
CONNECT SENSORS AND EQUIPMENT
NOTE: See Sample (BAC-9311) Wiring on
page 7 and Input/Output Objects/
Connections on page 8 for more
information. See also the YouTube
video KMC Conquest Wiring: BAC-
9300 Series Unitary Controllers.
NOTE: A digital STE-9000 Series NetSensor
can be used for conguring the
controller (see Congure/Program
the Controller on page 6). After the
controller has been congured, an
STE-6010, STE-6014, or STE-6017
analog sensor can be connected to the
controller in place of the NetSensor.
See the relevant installation guide for
additional details.
7

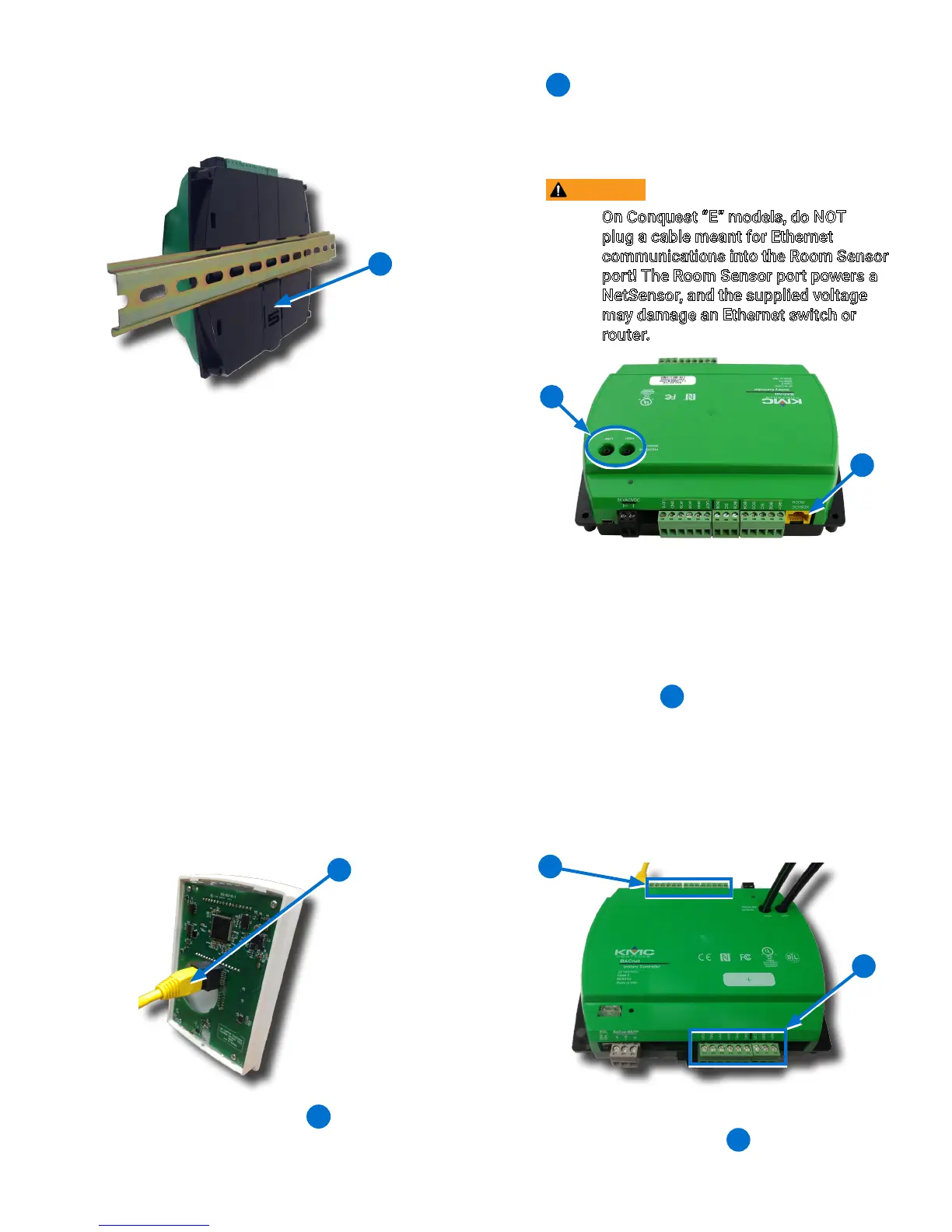

1. Plug an Ethernet patch cable
7
connected to
an STE-9000 Series or STE-6010/6014/6017
sensor into the (yellow) ROOM SENSOR port
8
of the controller.
NOTE: The Ethernet patch cable should be a
maximum of 150 feet (45 meters).
CAUTION
On Conquest “E” models, do NOT
plug a cable meant for Ethernet
communications into the Room Sensor
port! The Room Sensor port powers a
NetSensor, and the supplied voltage
may damage an Ethernet switch or
router.
8
9
NOTE: Auxiliary VAV equipment such as fans,
heaters, reheat valves, and discharge
air temperature sensors can be
connected to the controller.
2. Wire additional sensors to the green (input)
terminal block
10
.
NOTE: Wire sizes 12–24 AWG can be clamped
in each terminal.
NOTE: No more than two 16 AWG wires can
be joined at a common point.
10
11
3. Wire additional equipment to the green
(output) terminal block
11
.
