Note:
Typical Application Diagrams may be obtained by contacting KMC Controls
Technical Support at 574-831-5250 or e-mail us at techs@kmccontrols.com.
Network Configuration
Prior to operating the controller, it must be configured using the Hardware
Configuration Manager (HCM) application supplied with WinControl. Refer to
the WinControl XL User’s Manual and the KMC Digital Applications Manual for
additional information.
Note:
All controllers on the same network must be configured for the same baud rate
and each controller assigned a unique address.
Programming
Refer to the KMC Digital Applications Manual for information on how to pro-
gram the controller.
KMD-7001/7002/7003 Direct Digital Controller Installation & Operation Guide Installation

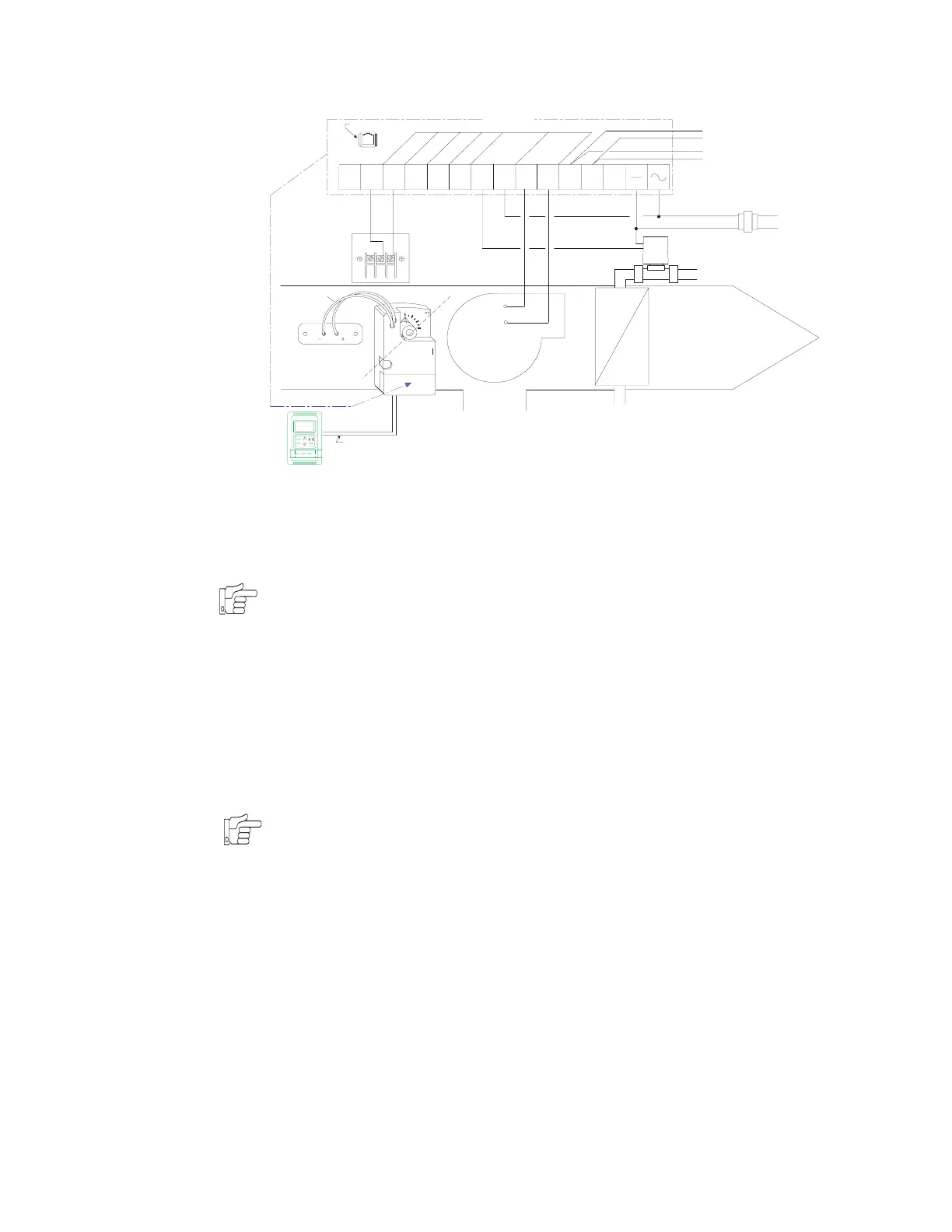

Illustration 8. Typical KMD-7003 Application
B
(OPTIONAL IN PLACE
A
C
TO NEXT DEVICE "A"
TO NEXT DEVICE "B"
GNDGND
ROOMTEMP
IN1 IN2
FAN
IN3 OUT1
REHEAT
RET
COM
KMD-7003
GNDBA
24VAC 120VAC
APPLICATION DRAWING FOR KMD-7003
VAV WITH FAN AND WET REHEAT
FROM PREVIOUS DEVICE "B"
FROM PREVIOUS DEVICE "A"
START CIRCUIT
SERIES FAN
FLOW
SSS-1000
H
L
24" OF 1/4" TUBING
KMD-7003
COMMUNICATIONS
C
ONTROLLER
A
V
V
ARIABLE
OLUME
IR
H
L
KMC
KMDIGITAL
READY
ACTUATOR
HWR
H
R
B
HWS
W
24VAC THERMAL
T2 R3
STE-5013
OF NETSENSOR)
KMD-1151 / KMD-1171
NETSENSOR
Room ˚F
Min 0
Max 1
FLOW
V. FCTR
MAXC. FCTRMIN
6-CONDUCTOR CABLE
RJ-12 PC/NETSENSOR PORT
*
*For electric reheat applications, use a separate 24 VAC transformer to isolate the relay through the Triac.
