MEP-4xxx Direct-Coupled Actuators (40 to 90 in-lb.) 7 Applications Guide, AN0513A Rev. J

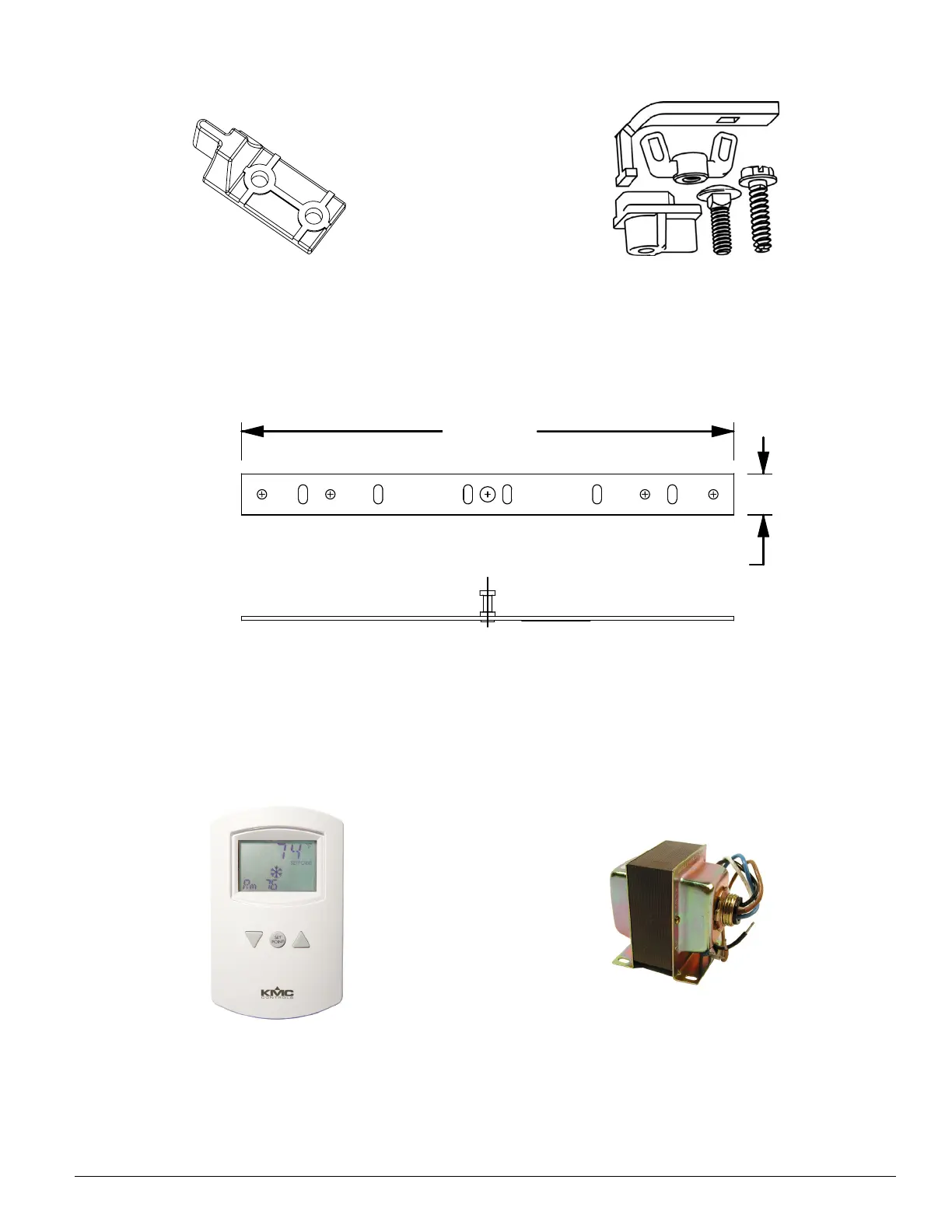

An HMO-4002 non-rotation bracket is provided
with MEP-40xx/48xx/425x/455x actuators (but is not
for use with MEP-427x/457x/49xx models). See also
the HMO-4001.
The HMO-4001 non-rotation “T” bracket can be used instead of the HMO-4002 to span an open distance, or
it can be formed (bent) into a shape that increases the distance between the mounting surface and the actua-
tor. It is provided with MEP-427x/457x/49xx actuators.
The HMO-4004 non-rotation bracket kit is used for
mounting to ball valves.
Non-Rotation “T” Bracket (HMO–4001) Order Separately
9"
[229]
3/4"
[19]
Non-Rotation Bracket (HMO–4002) Provided
9" (229 mm)
3/4" (19 mm)
An XEE-6000 series Class-2 transformer provides 24
VAC power to the actuator:
XEE-6111-050 120 to 24 VAC, 50 VA, single-hub
XEE-6112-050 120 to 24 VAC 50 VA, dual-hub
For sample proportional single-zone heating/cooling
and pressure-dependent VAV applications using the
CTE-5202 electronic thermostat, see the CTE-5202
Applications Guide.
Thermostat Transformers
Mounting (Non-Rotation) Brackets
