Diaphragm liquid pump NF 100 Operation
KNF Flodos BA_NF100_EN_10_067676.docx
Translation of original Operating and Installation Instructions 24

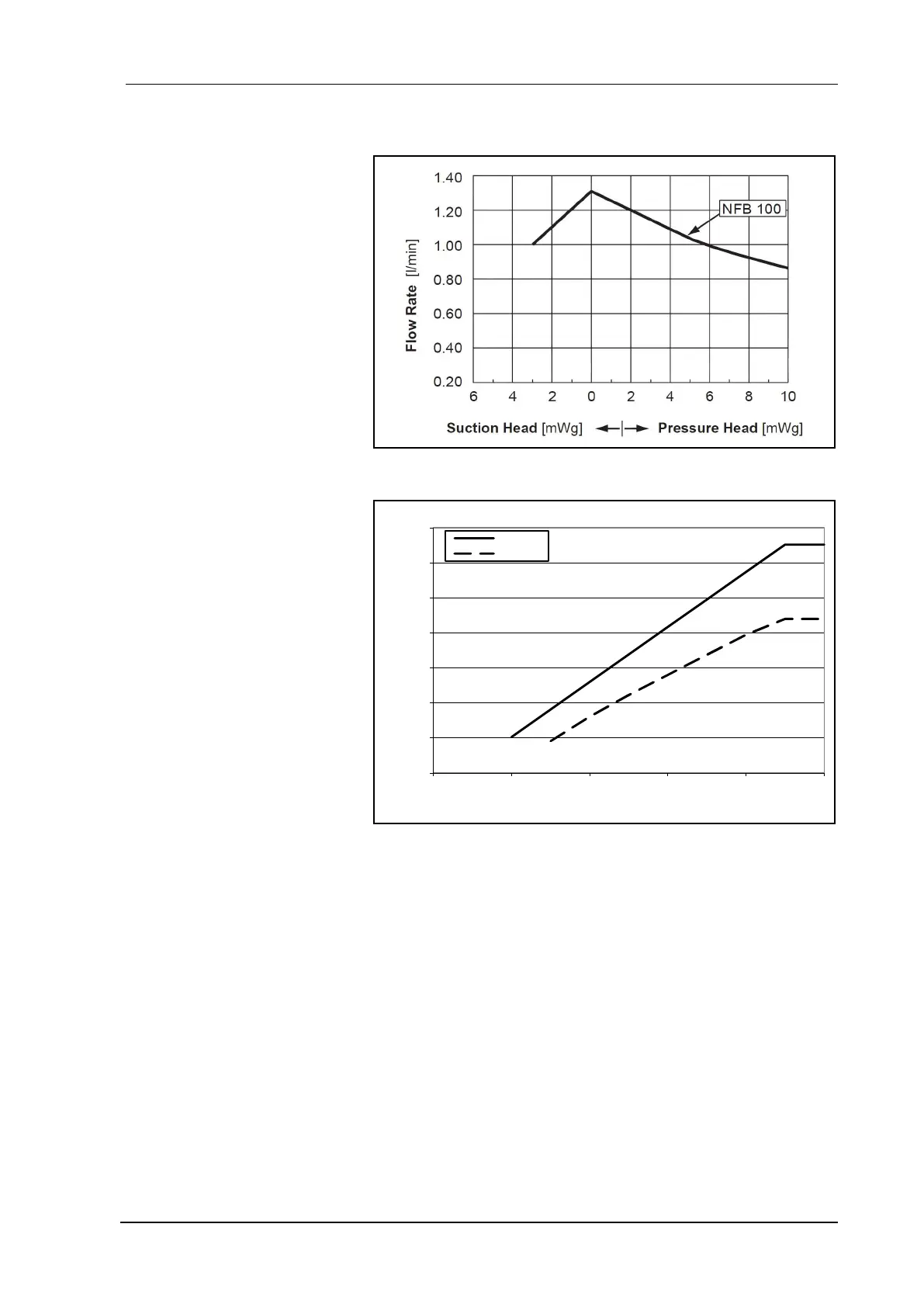

Flow rate NFB 100 (per pump head)
Fig. 18: Flow rate of pump NFB 100 DCB-4 (per pump head)
Fig. 19: Flow rate of pump NFB 100 DCB-4 (per pump head), depending
on control voltage
-
0.20
0.40
0.60
0.80
1.00
1.20
1.40
0 1 2 3 4 5
Flow rate [l/min]
Control voltage [VDC]
0 mWG
10 mWG
