Diaphragm liquid pump NF 100 Installation and connection
KNF Flodos BA_NF100_EN_10_067676.docx
Translation of original Operating and Installation Instructions 12
6. Installation and connection
Only install the pumps under the operating parameters and condi-
tions described in Chapter 4, Technical data.
Observe the safety precautions (see Chapter 3).
6.1. Installation
Before installation, store the pump at the installation location to
bring it up to ambient temperature.
Mounting dimensions (see Fig. 3 to 9)

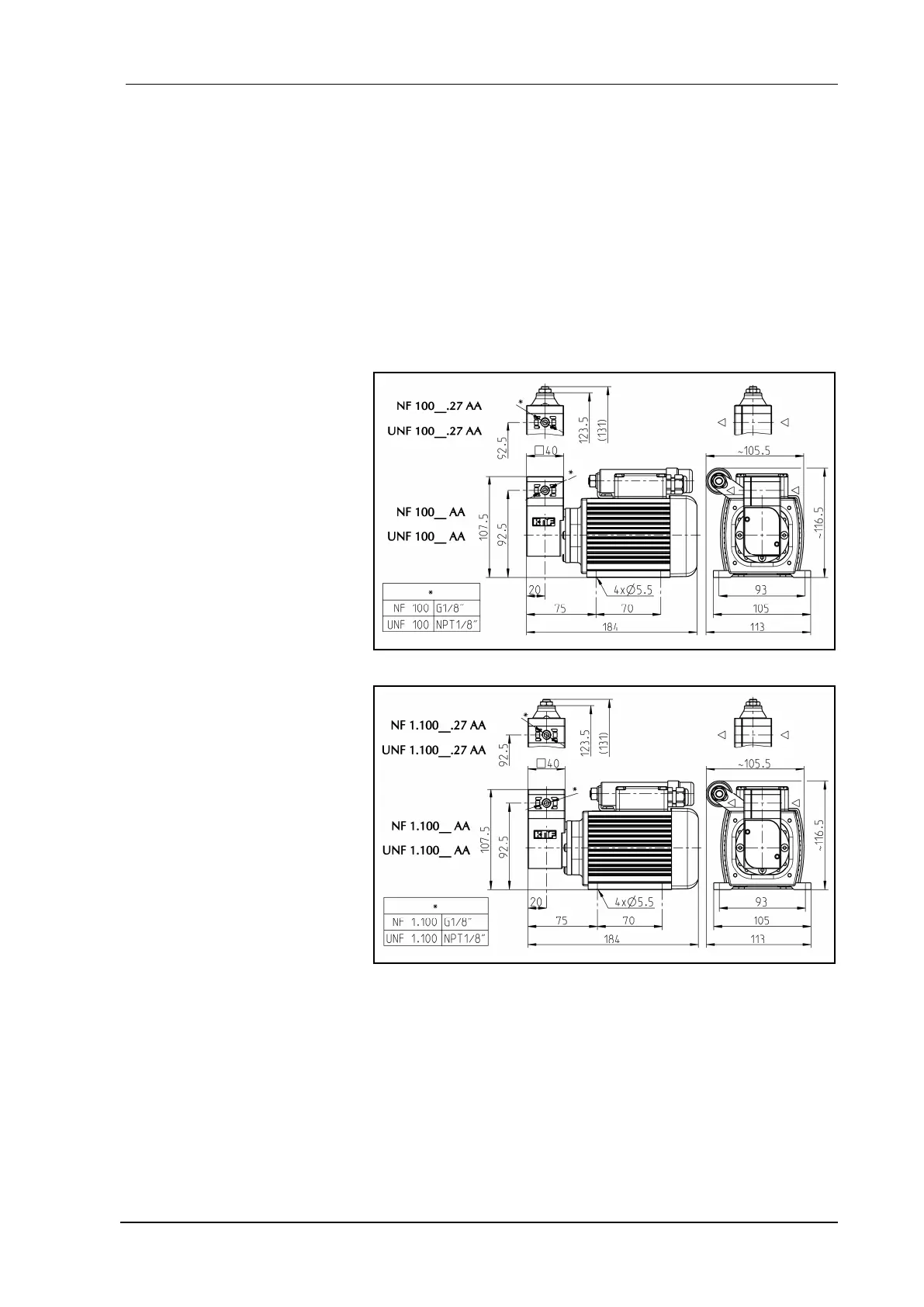

Fig. 3: Mounting dimensions NF 100 AA
Fig. 4: Mounting dimensions NF 1.100 AA
Mounting dimensions
