Diaphragm liquid pump NF 100 Installation and connection
KNF Flodos BA_NF100_EN_10_067676.docx
Translation of original Operating and Installation Instructions 13

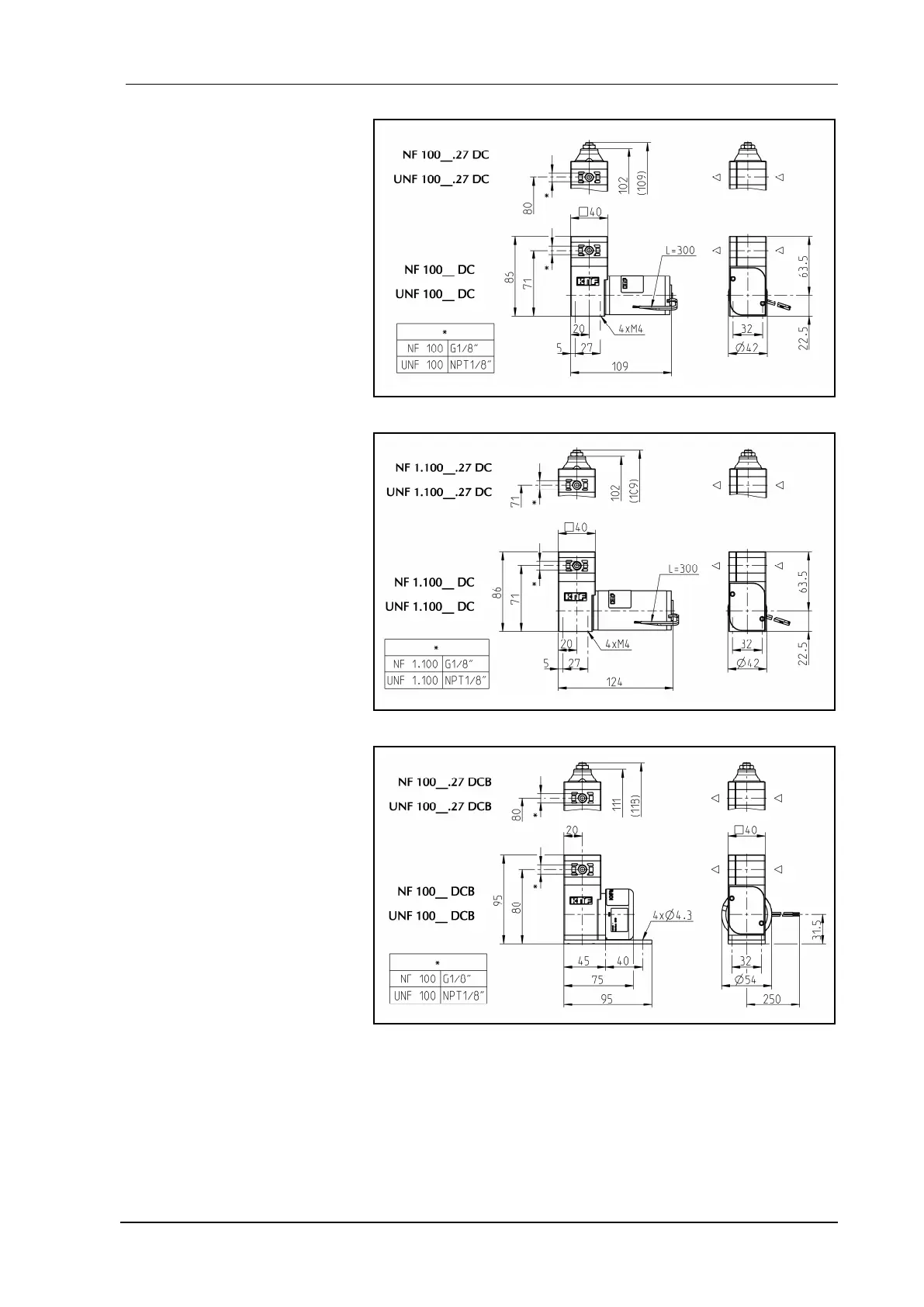

Fig. 5: Mounting dimensions NF 100 DC
Fig. 6: Mounting dimensions NF 1.100 DC
Fig. 7: Mounting dimensions NF 100 DCB
