WERKZEUGMASCHINEN Operating instructions
KKS 250 / 315 / 350 23/29
6.1 Oil change in the reduction unit

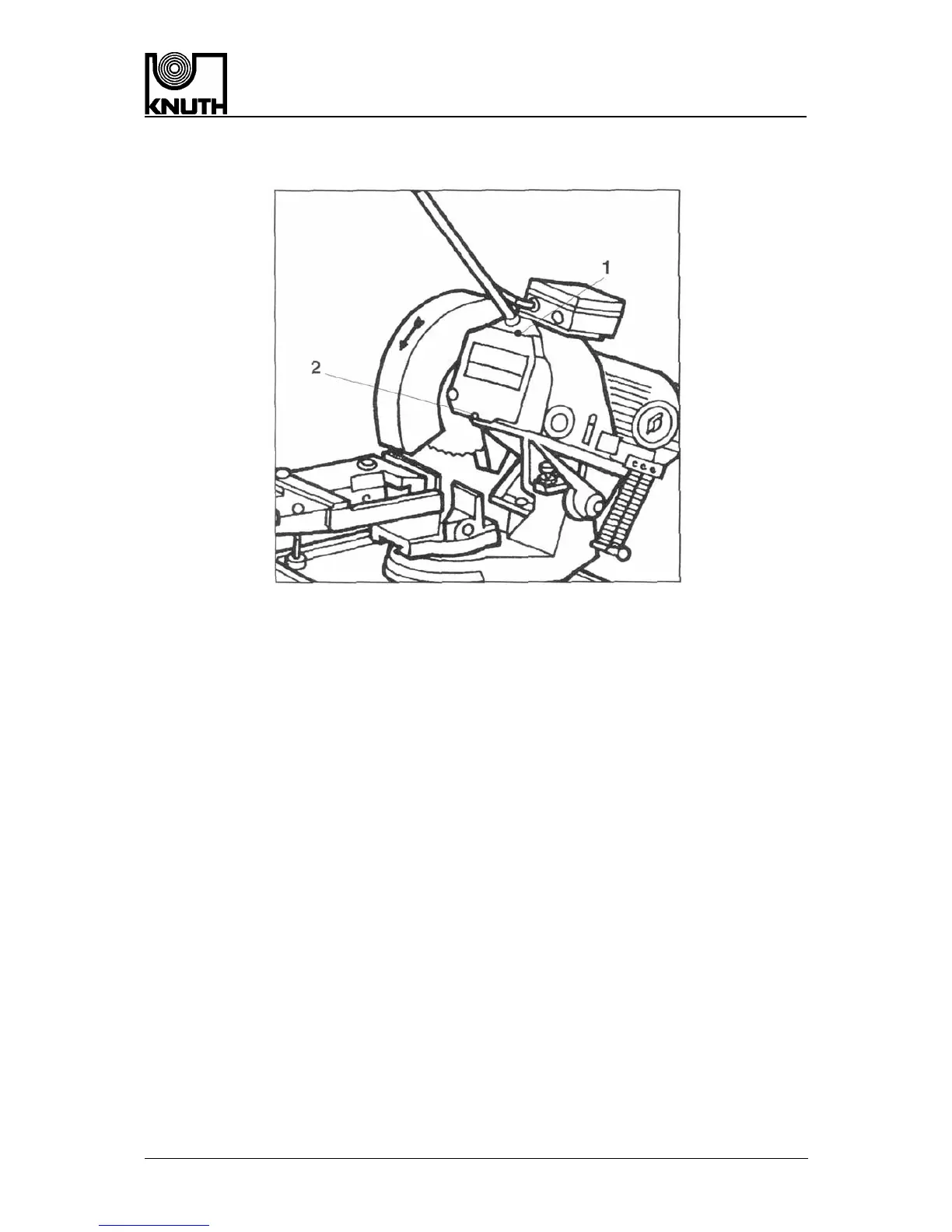

Fig. 11
After the first 200 working hours it is necessary to change the oil in the reduction unit.
To carry out this operation:
Place, under the head, vessel to collect the exhausted oil.
Unscrew the oil filling cap (1 fig. 11)
When the head is lowered remove the oil drain plug (2 fig. 11) and let the oil drain.
When the operation is over close by means of the plug.
Fill in with the new oil (0,5 l of EP-220 oil) through the cap hole (1 fig. 11)
Retighten the oil filling cap (1 fig. 11). Afterwards the oil must be changed once a
year.
The oil which has been drained must be disposed of according to the waste
standards actually in force, on the basis of the technical characteristics shown in the
safety sheet provided by the oil supplier.
When delivered the machine is equipped with ESSO Spartan EP-220 oil.
