WERKZEUGMASCHINEN Operating instructions
KKS 250 / 315 / 350 3/29
1 Machine description

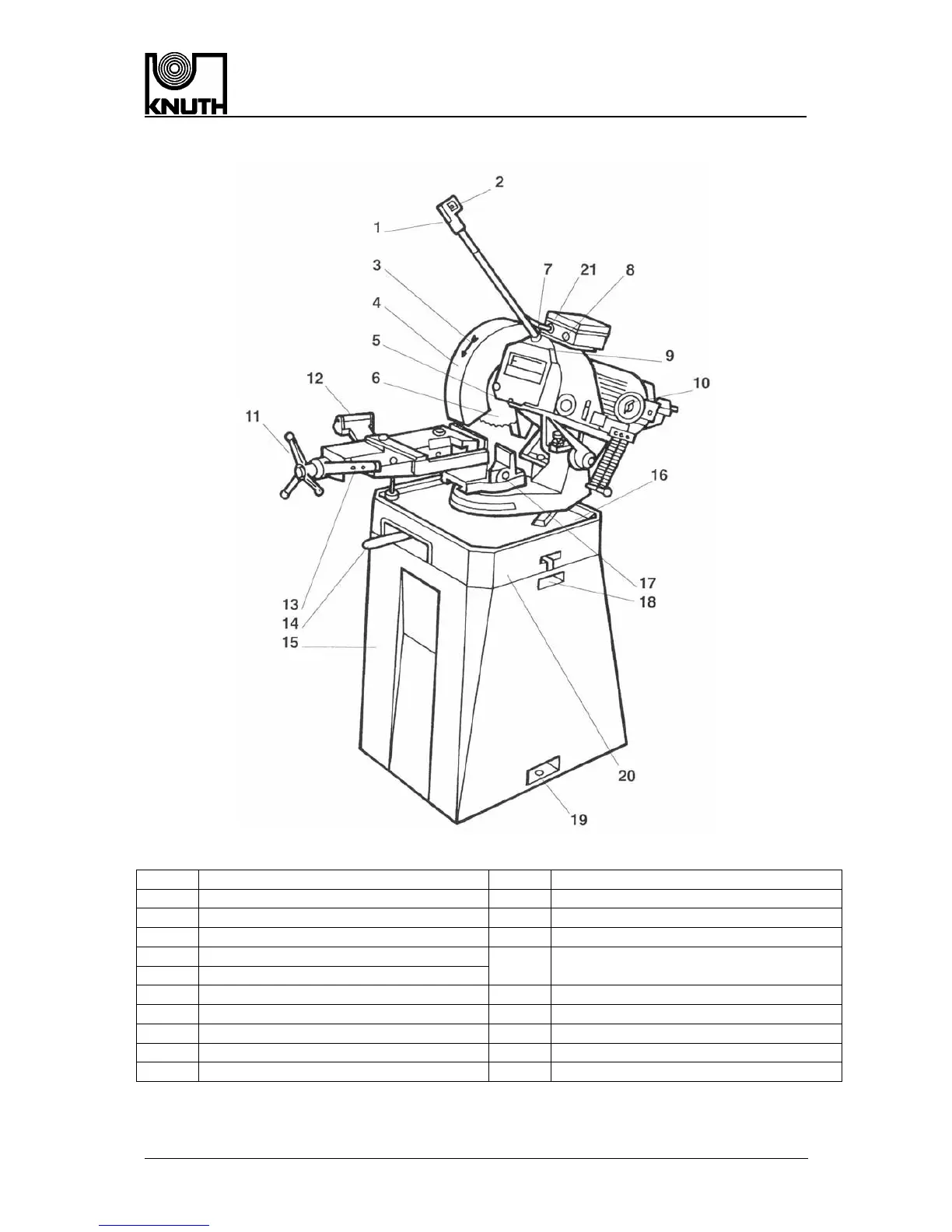

Fig. 1
1 Control handgrip 12 Bar holding arm
2 Micro switch 13 Quick clamping lever
3 Blade rotation arrow 14 Vice clamping lever
4 Protection guard 15 Machine base (optional)
5 Reduction unit oil drain plug
6 Cutting blade
16
Opening for the introduction of
emulsifiable liquid
7 Hosing for the control handgrip rod 17 Housing for bar stopping rod
8 Start push button 18 Cutting off machine base fastener
9 Oil filing cap in the reduction unit 19 Base floor fastener
10 Control switch 20 Identification plate
11 Vice handwheel 21 Connecting plug to the electric box
