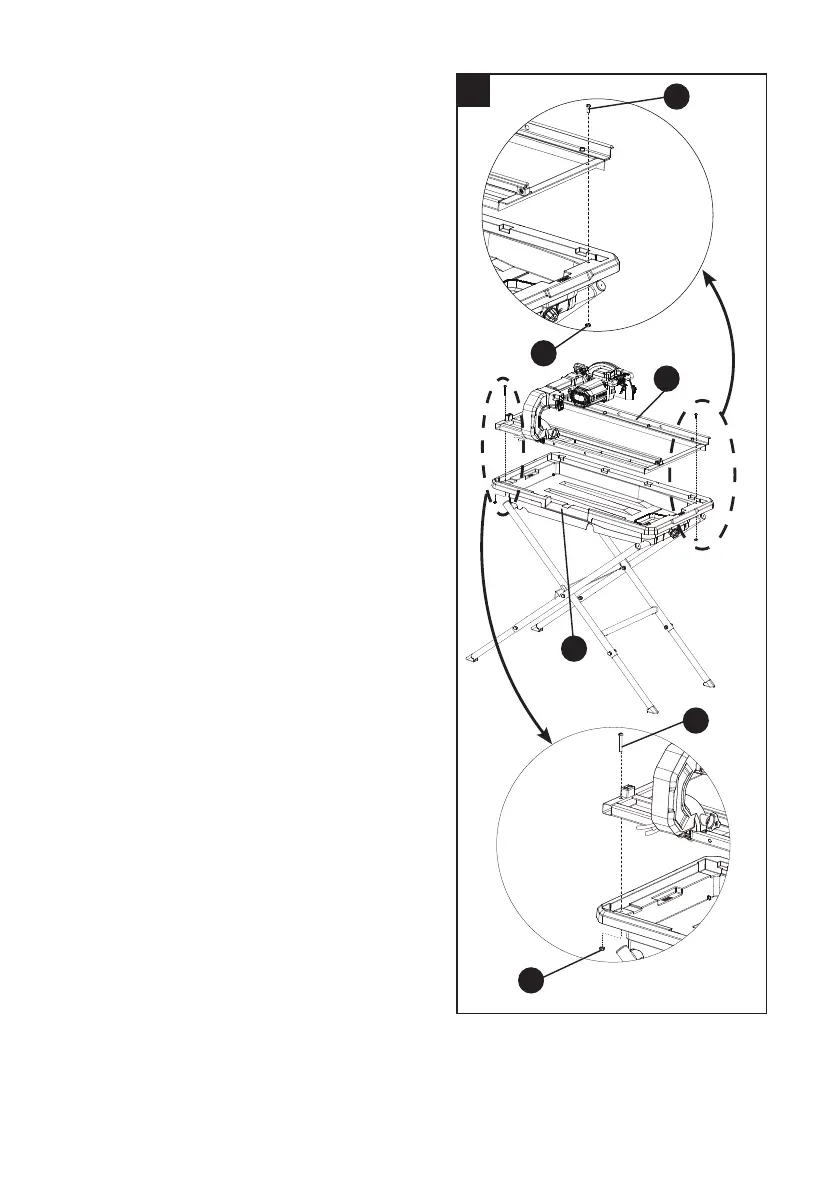

ASSEMBLING THE CUTTING HEAD/FRAME ON
THE WATER TRAY (FIG. 5) - BAG L
NOTE: The cutting head assembly and table frame
are heavy and it is recommended to be transported
with the help of 2 people, to safely move it.
● Place the cutting head assembly onto the water
tray (K) as shown.
● Insert the
screw (aa) and screw (bb) through
the table frame (J) and water tray (K) as shown,
and then tighten with the lock nuts (cc) using
a phillips screwdriver and 10 mm wrench (not
provided).
5
FRONT
OF SAW
K
bb
aa
cc
J
cc
To Next Page
