Kobalt 53278 - Pre-Assembly Preparation; Assembly Steps; Step 1: Mount Locking Casters; Step 2: Mount Swivel Casters

5
PREPARATION
ASSEMBLY INSTRUCTIONS
Hardware Used
Hardware Used
Before beginning assembly of this product, make sure all parts are present. Compare parts with
contents list. If any part is missing or damaged, do not attempt to assemble the product.
Tools required for assembly (not included): 12 mm, 13 mm and 14 mm socket, or 12 mm, 13 mm and
14 mm wrench.

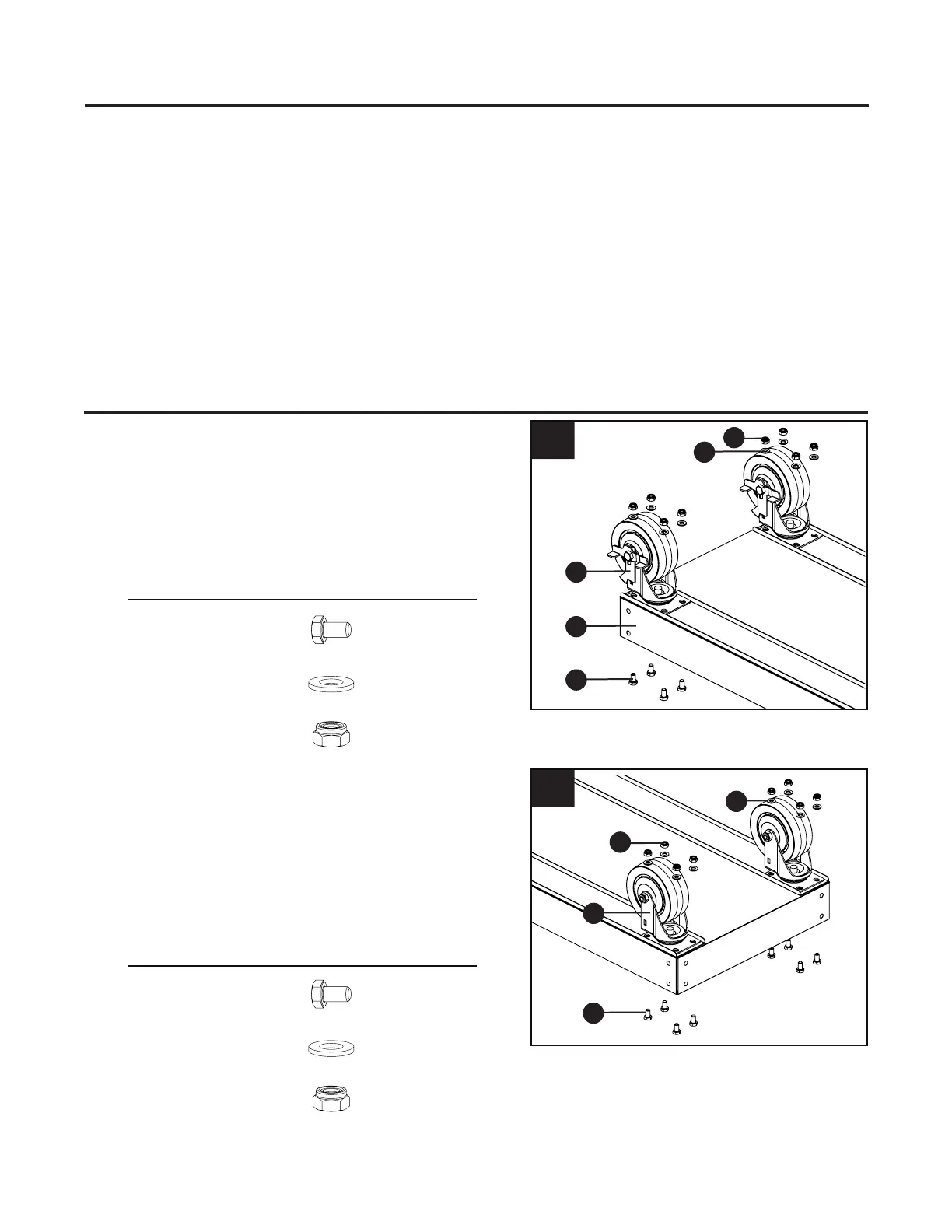

1. Mount the two locking swivel casters (D) to
one side of the bottom tray (C) by inserting
four bolts (I) per caster from the underside of
the tray and then securing each bolt with a
caster washer (J) and a caster nut (K).
2. Mount the two swivel casters (E) to the other
side of the bottom tray by inserting four
caster bolts (I) per caster from the underside
of the tray (C) and then securing each bolt
with a caster washer (J) and a caster nut (K).
1
2
Caster bolt, M8x14
Caster washer, M8
Caster nut, M8
x 8
x 8
x 8
x 8
x 8
x 8
Caster bolt, M8x14
Caster washer, M8
Caster nut, M8
J
D
C
I
I
E
K
J
K
