Kobalt 53278 User Manual

6

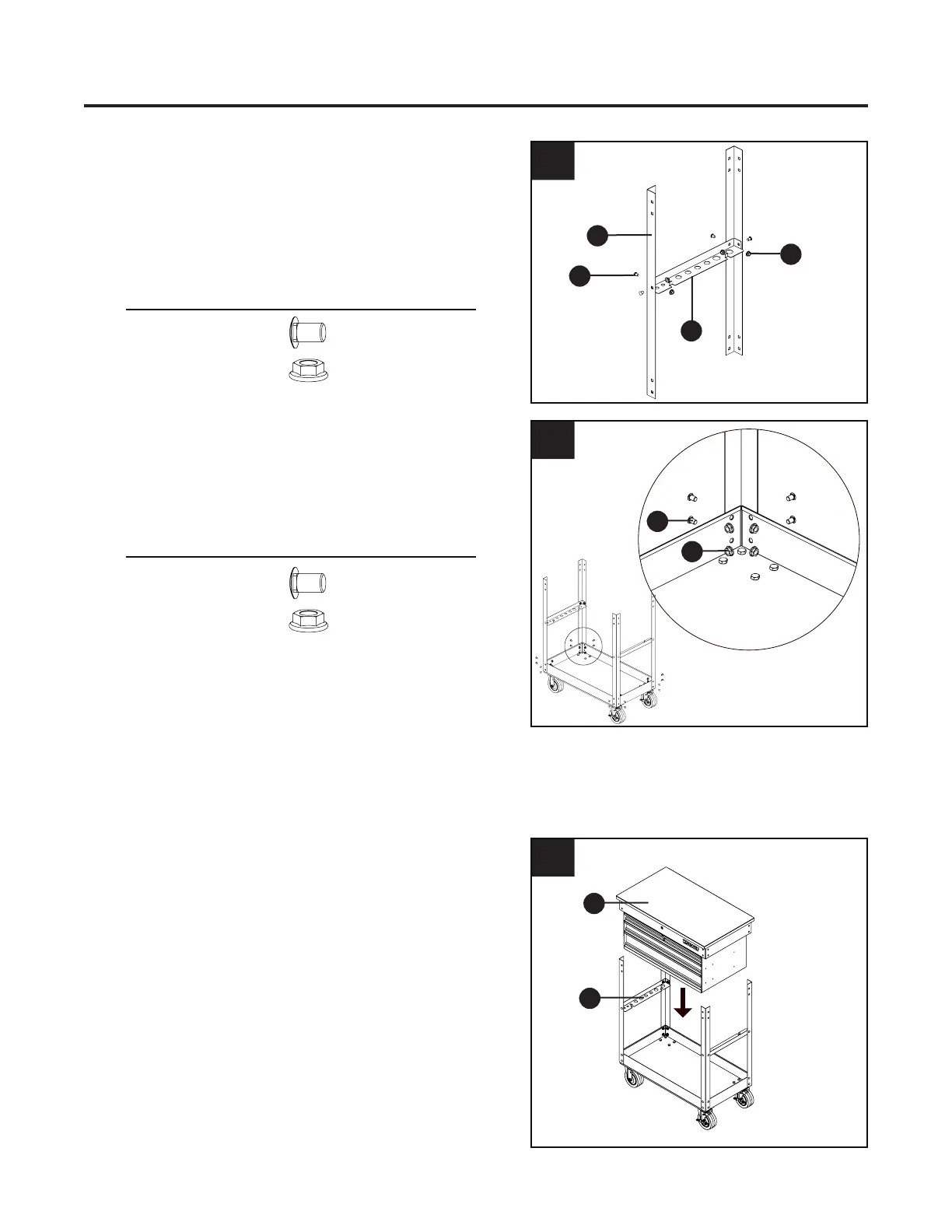

ASSEMBLY INSTRUCTIONS
4. Mount the frame leg assemblies into the
bottom tray by inserting bolts (M) into the
outside corners and securing with nuts (L).
Repeat for each corner.
5. With assistance, lift the chest (F) and mount it
between the frame leg assemblies so that the
bottom rests on the frame cross supports (B).
WARNING: Request assistance while mounting the chest to the posts. The chest is heavy.
WARNING: Lock the swivel casters before mounting the chest.
3. Attach a frame cross support (B) between
two frame legs (A) by inserting two bolts (M)
from the outside of the post and securing
with a nut (L) on the inside. Repeat with the
second frame cross support and remaining
pair of of frame legs.
3
4
5
Bolt, M8x12
Nut, M8
x 8
x 16
x 8
x 16
Hardware Used
Hardware Used
Bolt, M8x12
Nut, M8
M
B
F
M
L
A
L
B
