OPERATING INSTRUCTIONS
A 4-3/8 in. (111 mm) wheel is the maximum wheel capacity of the saw. Also, never use a wheel
that is too thick to allow outer cutting wheel washer to engage with the flat on the spindle. Larger
wheels will come in contact with the wheel guards, while thicker wheels will prevent cutting wheel
screw from securing wheel on spindle. Either of these situations could result in a serious accident.

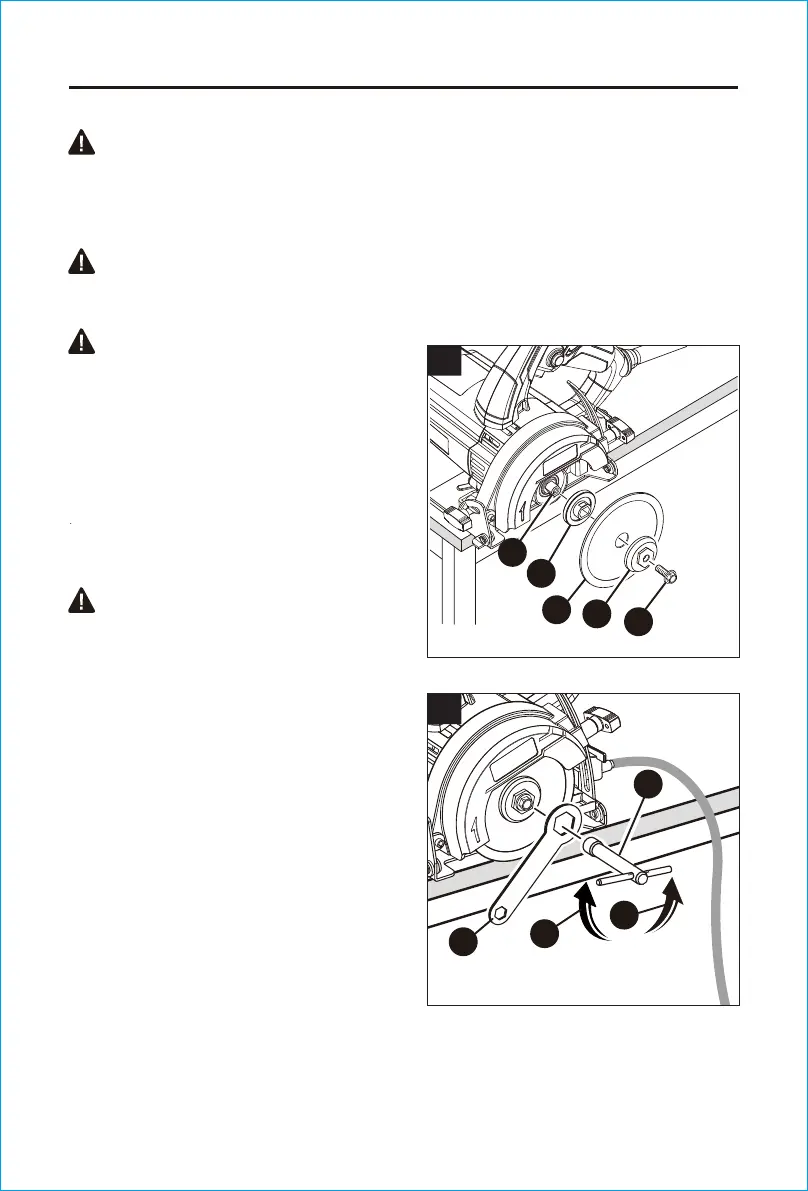

2. Installing Cutting Wheel (Fig 5 + Fig 6)
If inner flange bushing has been removed,
replace it before placing wheel on spindle.
Failure to do so will prevent wheel from
tightening properly and could result in serious
personal injury.
• Check to see that the arrow on the wheel
and the arrow on the saw are pointing in the
same direction.
• Fit the cutting wheel inside the wheel guard
between the two nozzles of the water supply
and onto the inner flange bushing.
• Replace the outer cutting wheel washer.
• Hold the outer cutting wheel washer still
using the hex box wrench.
• Align the outer cutting wheel washer with the
inner cutting wheel bushing
until it engages.
• Tighten cutting wheel screw securely by
turning it counterclockwise with the hex “T”
wrench.
Do not use cutting wheels rated less than the no load speed of this tool. Failure to heed this
warning could result in personal injury. Do not use wheel with cracks, gaps, or teeth.
Do not use toothed or segmented wheels. Use
only continuous rimmed diamond wheels suited
for masonry materials.
• Unplug the saw.
• Hold the outer cutting wheel washer still
using the hex box wrench.
• With your other hand, use the hex “T”
wrench to remove the cutting wheel
screw by turning it clockwise.
• Remove outer cutting wheel washer.
1 - To loosen 2 - To tighten
45
30
6
H
2
1
I
5
Q
R
J
S
T
NOTE: Never use a wheel that is too thick to allow the outer cutting wheel washer to engage
with the flat on the spindle.
