Kobalt A081002 - Discharger Chute Assembly

10

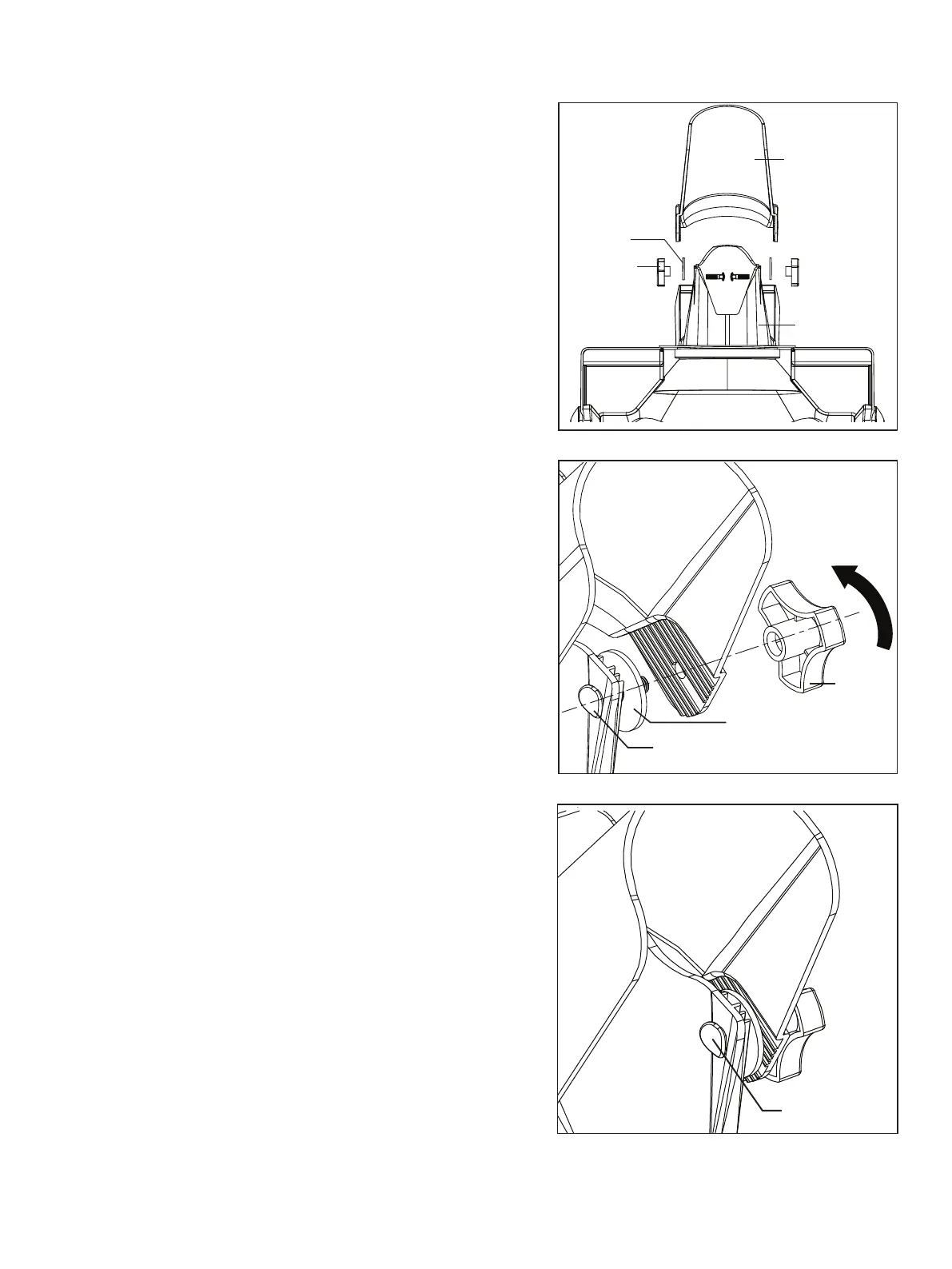

2. DISCHARGER CHUTE ASSEMBLY
• Position the chute deflector over the discharge
chute and align the holes, placing the washer
between the deector and the chute.
• Secure the carriage bolts and knobs. Make sure the
knobs are tightened.
• Turn the crank knob clockwise to ensure the
discharge chute and deector are in position.
Chute deflector
Washer
Deflector
knob
Discharge chute
Carriage bolt
Deflector
knob
Washer
Carriage bolt
