OPERATING INSTRUCTIONS FOR ROUTER

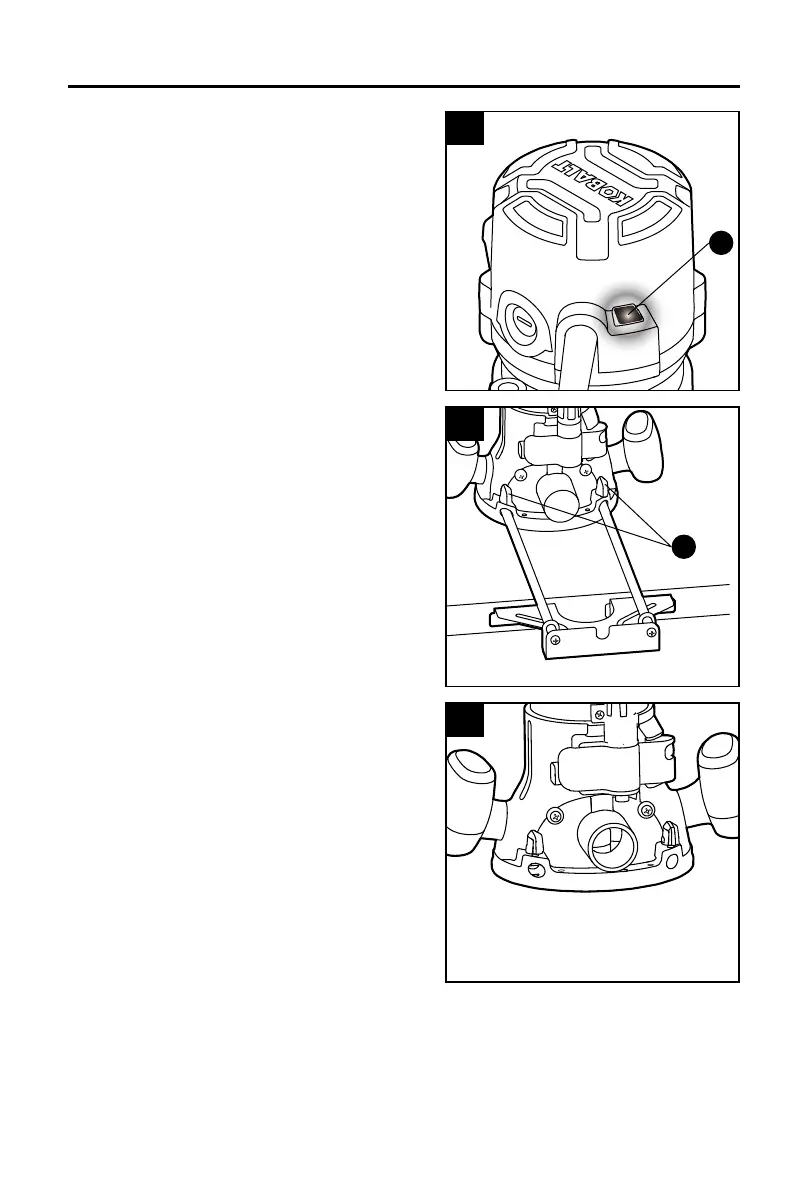

8. Live-tool Indicator
The live-tool indicator light (D) is located on the
motor housing top cap where the power cord enters
the motor housing (B). This green light is always
on when the router motor is plugged into a power
source.
9. Heavy-duty Edge Guide
The edge guide can be used to aid in routing
applications such as decorative edging, straight-
edge planing and trimming, grooving, dadoing and
slotting.
To assemble the edge guide onto the router base,
simply insert the edge-guide rods into the edge-
guide mounting slots (Q), adjust to the desired
position, and lock them in place with the edge-guide
locking knobs (P).
10. Dust Collection with a Vacuum Adaptor
The router is equipped with a vacuum adaptor
sized to accept a 1-1/4 in. (3.2 cm) vacuum hose
adaptor (not included).
To attach the adaptor onto the xed base (E),
position and secure it to the back of the base using
the two screws (included).
8
D
9
P
10
