ASSEMBLY INSTRUCTIONS FOR ROUTER TABLE
ABOVE-TABLE DEPTH ADJUSTMENT

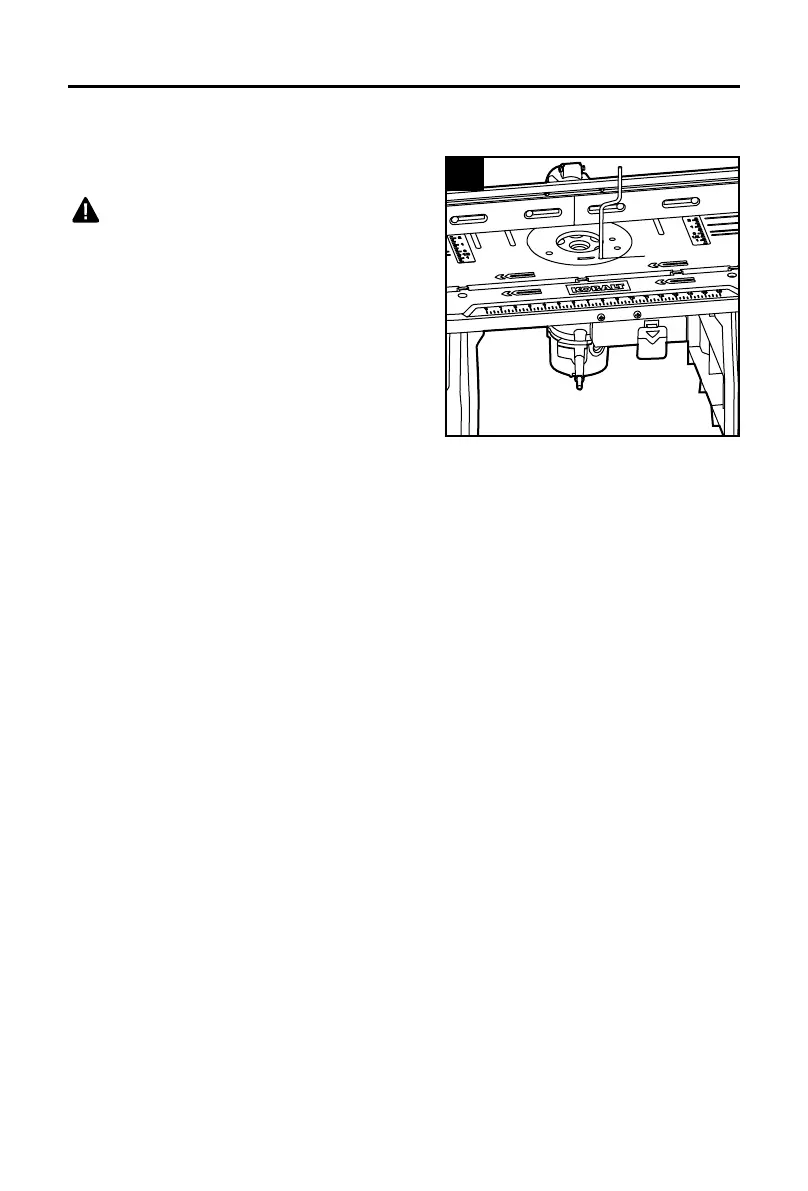

27. To Adjust the Cutting Depth
WARNING
Always unplug the router table before attaching
accessories or making any adjustment. The
router table features an access hole (3) to permit
above-the-table router depth adjustment.
a. Loosen the motor clamp (N) on the router.
b. Insert the “Z” wrench through the adjusting hole
and into the depth adjustment nut in the router,
then turn the wrench to move the router collet
down or up.
c. When the desired cutting depth is set, tighten
the motor clamp.
27
Hole3
