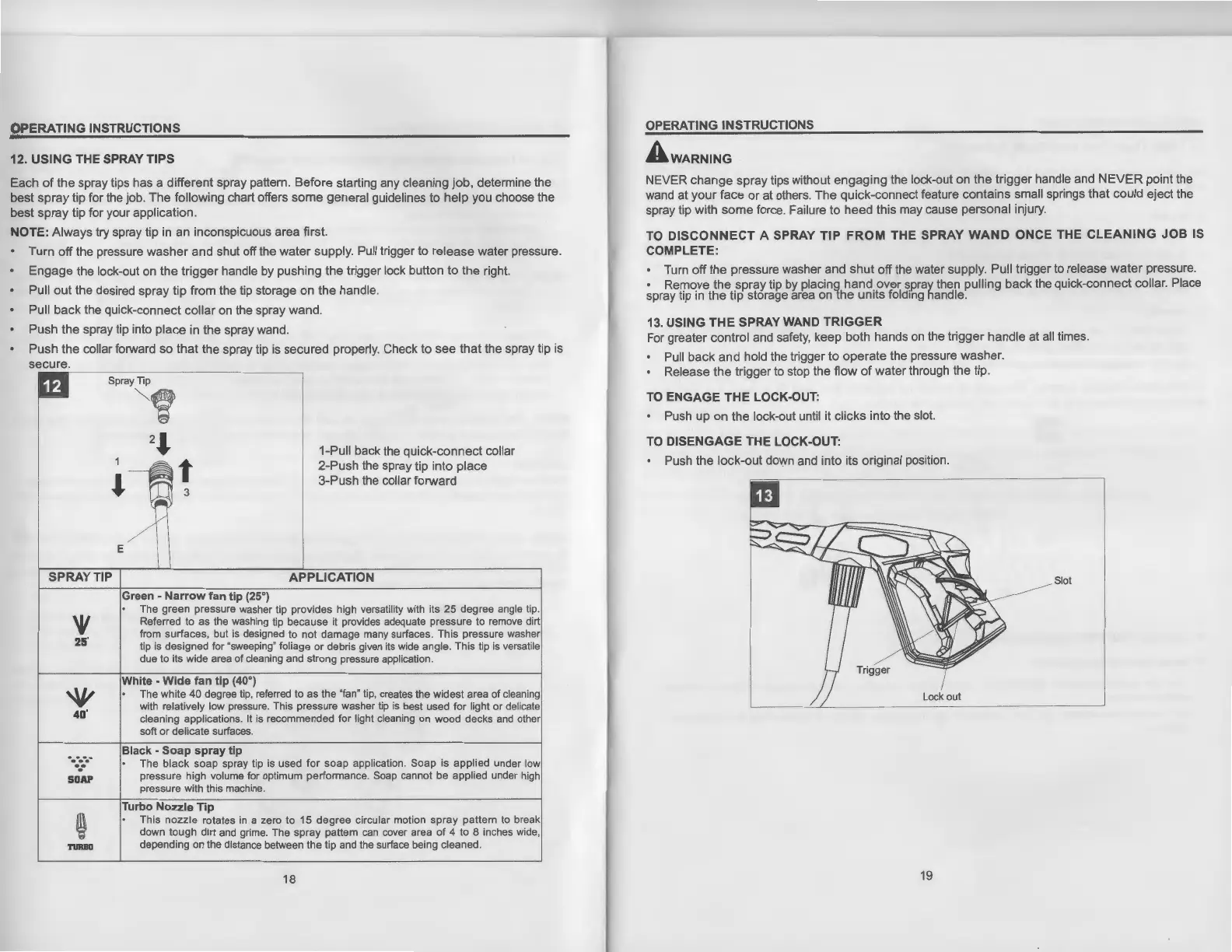

OPERATING INSTRUCTIONS
12.
USING
THE SPRAY TIPS
Each
of
the spray tips has a different spray pattern. Before starting any cleaning job, determine the
best spray tip for
the
job. The following chart offers some general guidelines to help you choose the
best spray tip for your application.
NOTE: Always try spray tip in an inconspicuous area first.
Turn off the pressure washer and shut off the water supply. Pull trigger to release water pressure.
Engage the lock-out
on
the trigger handle
by
pushing the trigger lock button to the right.
Pull out the desired spray tip from the tip storage on the handle.
Pull back the quick-connect collar
on
the
spray wand.
Push the spray tip into place
in
the spray wand.
Push the collar forward so that the spray tip is secured properly. Check to see that the spray tip is
secure
IJ
Spray
Tip
""
'
2
...
1-Pull back
the
quick-connect collar
1
t
2-Push the spray tip into place
...
"""'
3-Push the collar forward
~
3
.
//
E
SPRAY TIP APPLICATION
I
Green
- Narrow
fan
tip
(25°)
1
The green pressure washer tip provides high versatility with its 25 degree angle tip.
'V
Referred to as the washing tip because it provides adequate pressure to remove dirtl
from surfaces, but
is
designed to not damage many surfaces. This pressure washer
25
'
tip is designed for "sweeping" foliage
or
debris given its wide angle. This tip is versatile,
due to its wide area of cleaning and strong pressure application.
White
-Wide
fan
tip
(40°)
~
The white
40
degree
tip,
referred to as the "fan"
tip,
creates the widest area of cleaning
with relatively low pressure. This pressure washer
tip
is
best used for light or delicate
40
'
cleaning applications.
It
is
recommended for light cleaning
on
wood decks and other
soft
or
delicate surfaces.
Black
- Soap spray
tip
..
The
black
soap spray tip
is
used
for
soap application. Soap is applied under low
SOAP
pressure high volume for optimum performance. Soap cannot be applied under high
pressure with this machine.
Turbo
Nozzle Tip
~
This
nozzle
rotates
in
a zero to 15
degree
circular motion
spray
pattern to break
down tough dirt and grime. The spray pattern can cover area
of
4 to 8 inches wide ,
TURBO
depending on the distance between the tip and the surface being cleaned.
18
OPERATING INSTRUCTIONS
A
wARNING
NEVER change spray tips without engaging the lock-out on the trigger handle and
NEVER
point
the
wand at
your
face or at others. The quick-connect feature contains small springs that could eject the
spray tip with some force. Failure to heed this may cause personal injury.
TO
DISCONNECT
A SPRAY
TIP
FROM
THE SPRAY
WAND
ONCE THE
CLEANING
JOB IS
COMPLETE:
Turn off the pressure washer and shut off the water supply. Pull trigger
to
release
water
pressure.
• Remove the spray tip
by
placing hand over spray then pulling back the quick-connect collar. Place
spray tip
in
the tip storage area on
lhe
units folding handle.
13. USING
THE
SPRAY WAND
TRIGGER
For greater control and safety, keep both hands
on
the trigger handle at
all
times.
Pull back and hold the trigger to operate the pressure washer.
Release the trigger
to
stop the flow
of
water through the tip.
TO
ENGAGE
THE
LOCK-OUT:
Push up on the lock-out until it clicks into the slot.
TO
DISENGAGE THE LOCK-OUT:
Push the lock-out down and into its original position.
19
Slot
To Next Page
