Kobalt KBT2000 User Manual

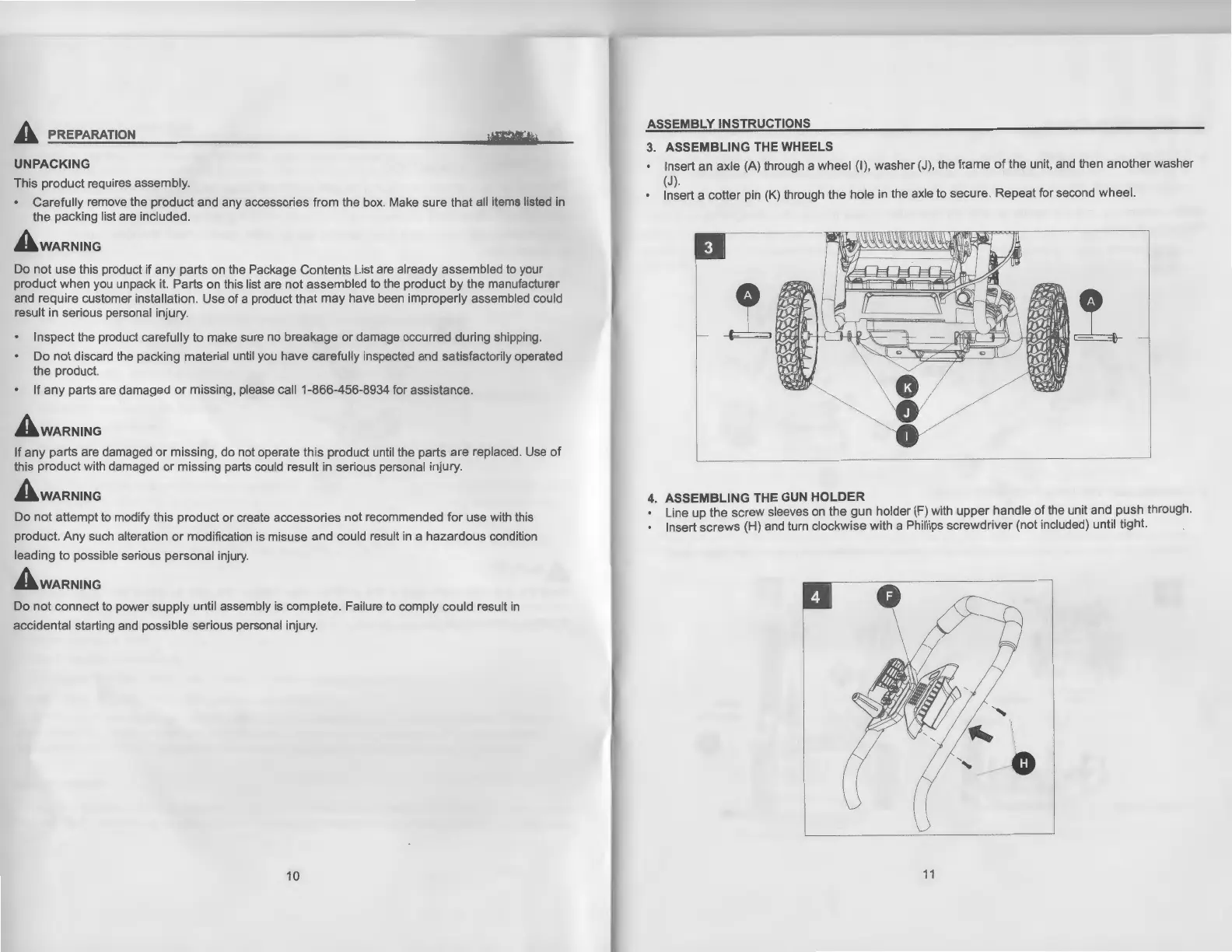

A PREPARATION
UNPACKING
This product requires assembly.
Carefully remove the product and any accessories from the box. Make sure that all itoms listed in
the packing list are included.
A wARNING
Do not use this product if any parts on the Package Contents List are already assembled to your
product when you unpack it. Parts on this list are not assembled to the product by the manufacturer
and
require customer installation. Use of a product that may have been improperly assembled could
result in serious personal injury.
Inspect the product carefully to make sure no breakage or damage occurred during shipping.
Do not discard the packing material until you have carefully inspected and satisfactorily operated
the product.
If any parts are damaged or missing, please call1-866-456-8934 for assistance.
A wARNING
If any parts are damaged or missing, do not operate this product until the parts are replaced. Use of
this product with damaged or missing parts could result in serious personal injury.
A wARNING
Do not attempt to modify this product or create accessories not recommended for use with this
product.
Any such alteration or modification is misuse and could result in a hazardous condition
leading to possible serious personal injury.
A wARNING
Do not connect to power supply until assembly is complete . Failure to comply could result in
accidental starting and possible serious personal injury.
10
ASSEMBLY INSTRUCTIONS
3. ASSEMBLING THE WHEELS
Insert an axle (A) through a wheel (I), washer (J), the frame of the unit, and then another washer
(J).
• Insert a
cotter pin (K) through the hole in the axle to secure. Repeat for second wheel.
I
0
l=
c . &-
4. ASSEMBLING THE GUN HOLDER
• Line up the screw sleeves on the gun holder (F) with upper handle of the unit and push through.
Insert
screws (H) and turn clockwise with a Phillips screwdriver (not included) until tight.
11

Kobalt KBT2000 Specifications

General

Brand	Kobalt
Model	KBT2000
Category	Pressure Washer
Language	English
