ASSEMBLY INSTRUCTIONS
2. Mounting and Adjusting the Front-Assist
Handle
a. Remove the battery pack from the power head.
b. Remove the screw knob (I) and the lock lever
(J) from the front-assist handle (H).

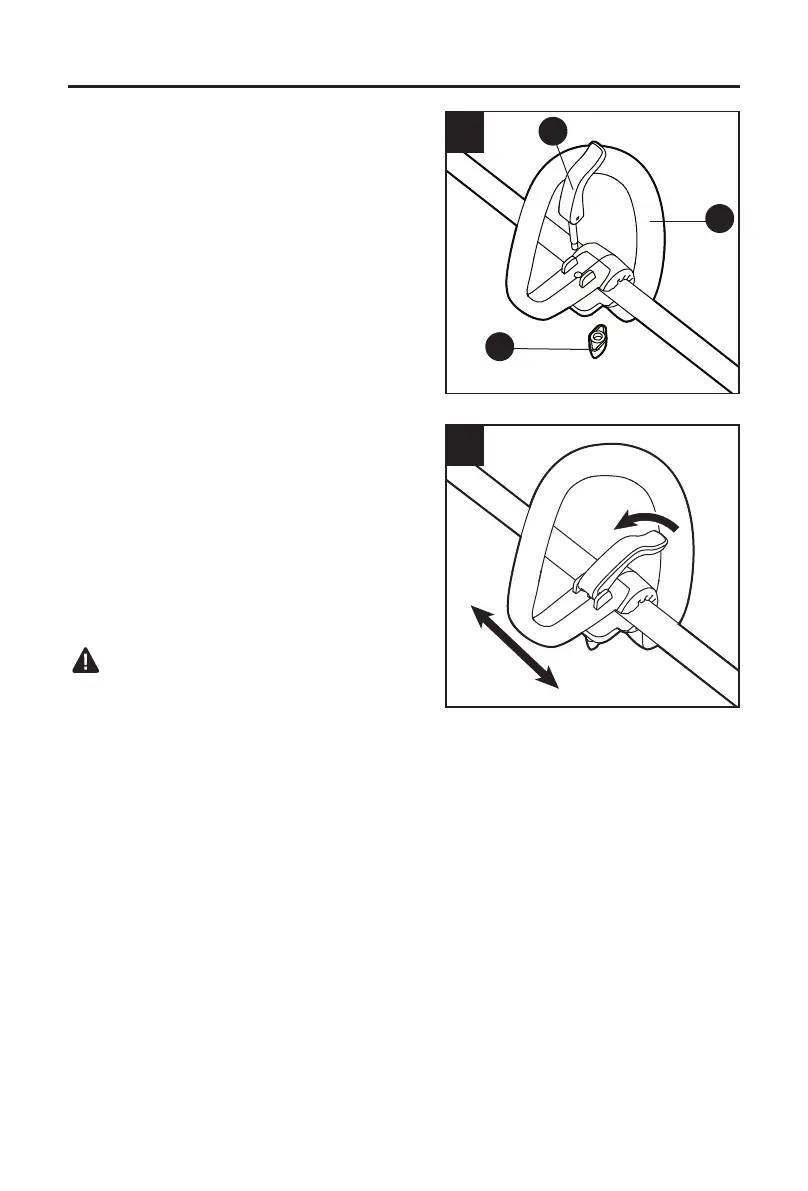

c. Mount the front-assist handle on the shaft as
shown in Fig. 2a.
d. Insert the adjusting lever into the front-assist
handle, and then tighten the screw knob. Make
sure that the front-assist handle faces upwards
so that it points toward the rear handle
(Fig. 2b).
e. Lower the adjusting lever to secure the front-
assist handle onto the shaft so that it cannot
move on the shaft during operating.
To Adjust the Front-Assist Handle Position
The handle should be adjusted so that the arm
holding the front-assist handle is straight when
using the power head.
To adjust the front-assist handle (C) position, lift the
adjusting lever so that the front-assistant handle
can be moved to the desired position along the
shaft. Lower the adjusting lever so that the handle
cannot move on the shaft during operating.
WARNING:
• There is a tag on the power head shaft to limit
the adjustment distance of the front-assist handle
to meet the requirements of the front and rear
handle distance. Never adjust the front-assist handle beyond the tag position.
• Never operate the tool without the front-assist handle rmly in place.
2a
J
H
I
2b
