8
ASSEMBLY INSTRUCTIONS
WARNING
• Read and understand entire Operator’s Manual for each optional attachment used with this
power head and follow all warnings and instructions. Failure to follow all instructions could
result in electric shock, re and/or serious personal injury.
• This 40V power head is designed to be used
only with the attachment models that are
specied in this Operator’s Manual. Use of other,
unauthorized attachments could cause serious
personal injuries or property damage.
• Some accessories have specic requirements
related to safety. Always pay special attention to
such instructions in the manual that accompanies
each accessory.
• Never install, remove, or adjust any attachment
while the power head is running or with the
battery installed. Failure to stop the motor and
remove the battery can cause serious personal
injury. NEVER OPERATE THE POWER HEAD
WITHOUT AN ATTACHMENT.
WARNING
• Always remove the battery pack from the
product when you are assembling parts, making
adjustments, cleaning, or when the product is not
in use.

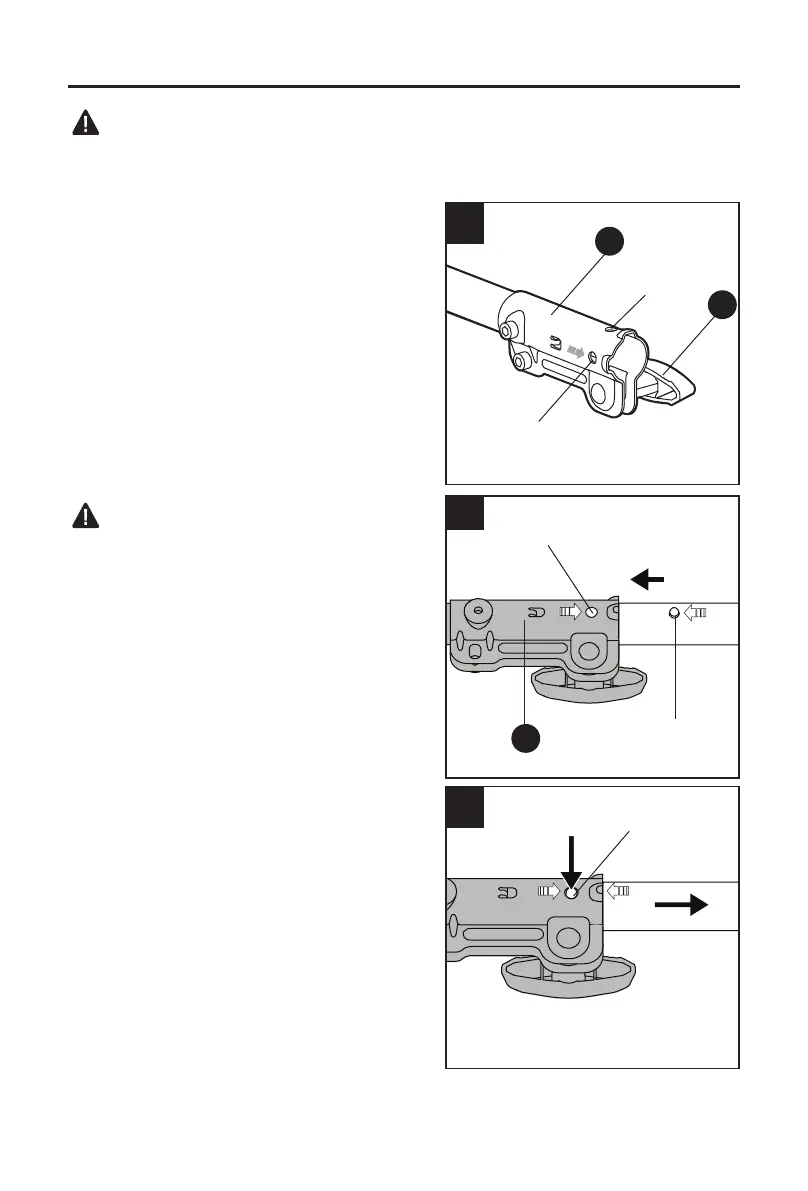

1. Installing and Removing the Power Head
Attachment
Installing the attachment
a. Remove the battery pack.
b. Loosen the wing knob (A) (Fig.1a).
c. The power head has two grooves on the
coupler (B), ONLY the groove 1 is used to
connect attachments: KMS 1040-03 and
KEG 1040-03.
d. Align the spring-loaded pin on the attachment
with the groove on the coupler (B) and push the
attachment shaft into the power head shaft until
the pin pops out of the groove and you hear an
audible “click” sound at the same time (Fig.1b).
e. Pull the shaft of the attachment to verify that it
is securely locked into the coupler (B).
f. Tighten the wing knob (A) securely.
Removing the attachment
a. Remove the battery pack.
b. Loosen the wing knob (A).
c. Press down the spring-loaded pin and pull the attachment shaft out of the coupler (Fig.1c).
B
1b
Groove
Pin
1c
Pin
1a
B
A
Groove1
Groove2
