ASSEMBLY INSTRUCTIONS

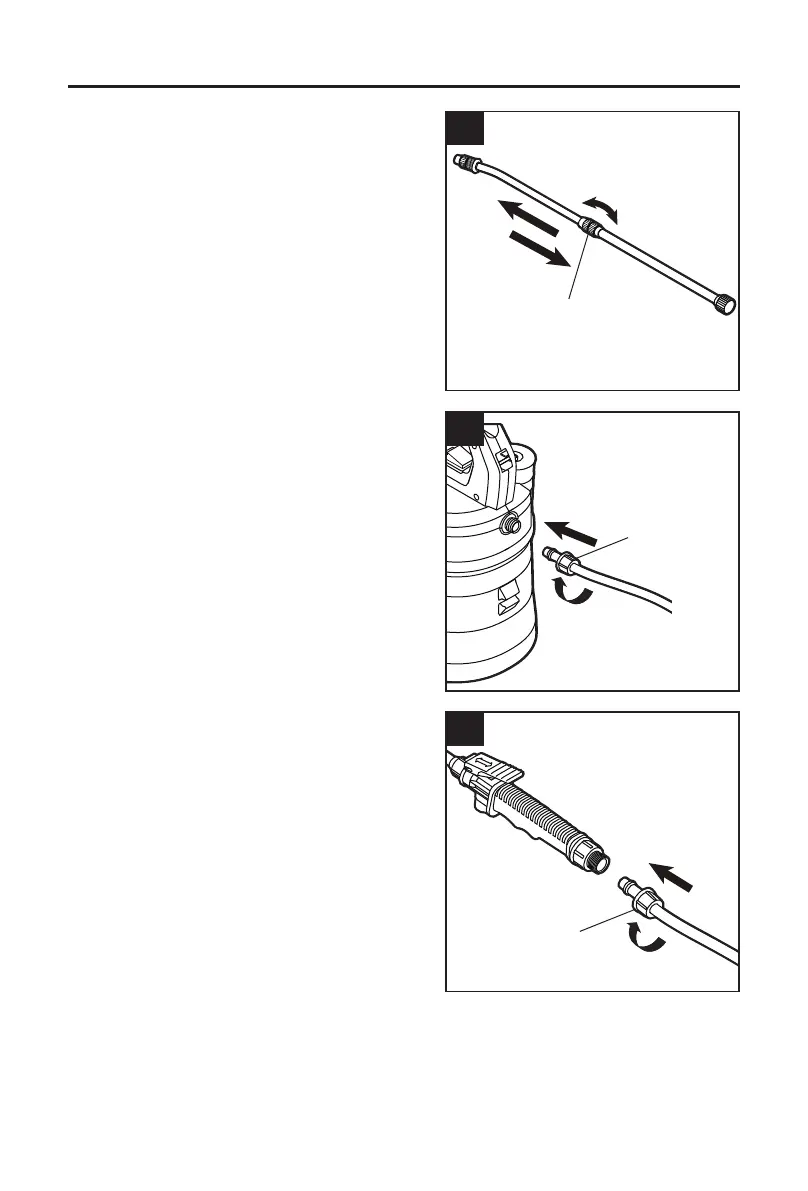

d. Rotate the nozzle until it is aligned with the
handle and pointing down, ready for use.
e. Pull the spray wand to be certain it is properly
secured.
f. Place the assembled handle with lock-on
trigger into the handle storage area in the
carrying handle.
3. Attaching the Hose
To attach the hose to the tank:
a. Insert the hose end into the opening on the
tank (E).
b. Slide the nut over the opening and hose end.
Hand tighten. Do not overtighten.
c. Make sure the connection is secure.
To attach the hose to the handle:
a. Insert the hose end into the opening on the
handle with lock-on trigger (I).
b. Slide the nut over the hose and end cap. Hand
tighten. Do not overtighten.
c. Make sure the connection is secure.
2b
Cap
3a
Nut
3b
Nut
To Next Page
