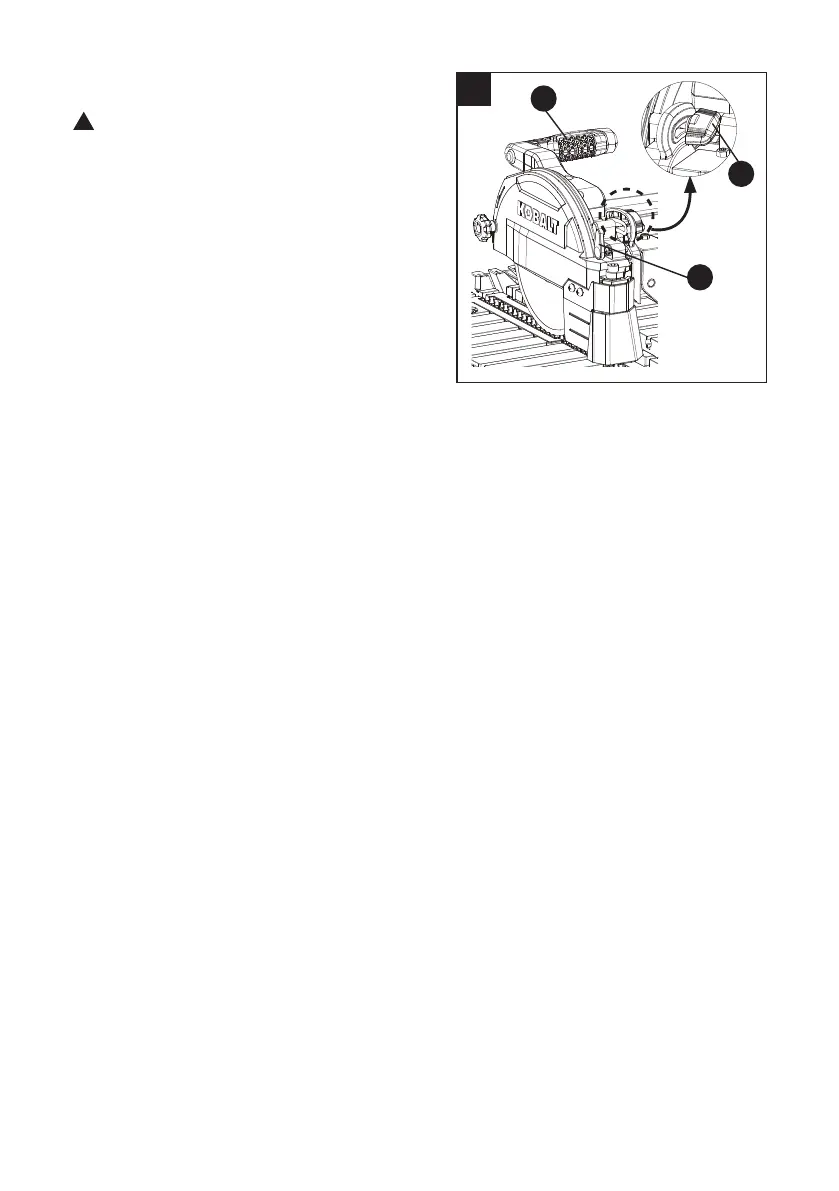

CUTTING WHEEL DEPTH ADJUSTMENT
(FIG. 24)
WARNING: Improperly adjusting the cutting
wheel depth could cause the cutting wheel
to come in contact with the sliding table
resulting in damage to the unit and/or
possible serious injury.
Adjusting the cutting depth:
● Disconnect the saw from the power source.
● Loosen the cutting head lock knob (DD),
pull out the hold-down latch (FF), and press
down the motor handle (Q) until the cutting
wheel is at the desired depth.
●
While holding the cutting head in the desired
position,
release the hold-down latch and
tighten the cutting head lock knob (DD).
Maximum cutting depth:
● Disconnect the saw from the power source.
● Loosen the cutting head lock knob (DD),
pull out the hold-down latch (FF), and press
down the motor handle (Q) to set the cutting
head to a 0° angle. Make sure the wheel sits
in the groove in the sliding table.
NOTICE: Do not lock the cutting head lock
knob while making this adjustment.
● After adjustment is complete, tigthen the
cutting head lock knob (DD).
● Recheck the cutting wheel depth by moving
the sliding table front to back.
!
