Left/Right 48° Bevel Adjustment
(Fig. 17, 18) :
ŏ Turn the left bevel detent block (1) to 48°
position.
ŏ Adjust the left and right side 48° bevel angle
using the same instructions given above for
adjusting the 45° bevel.

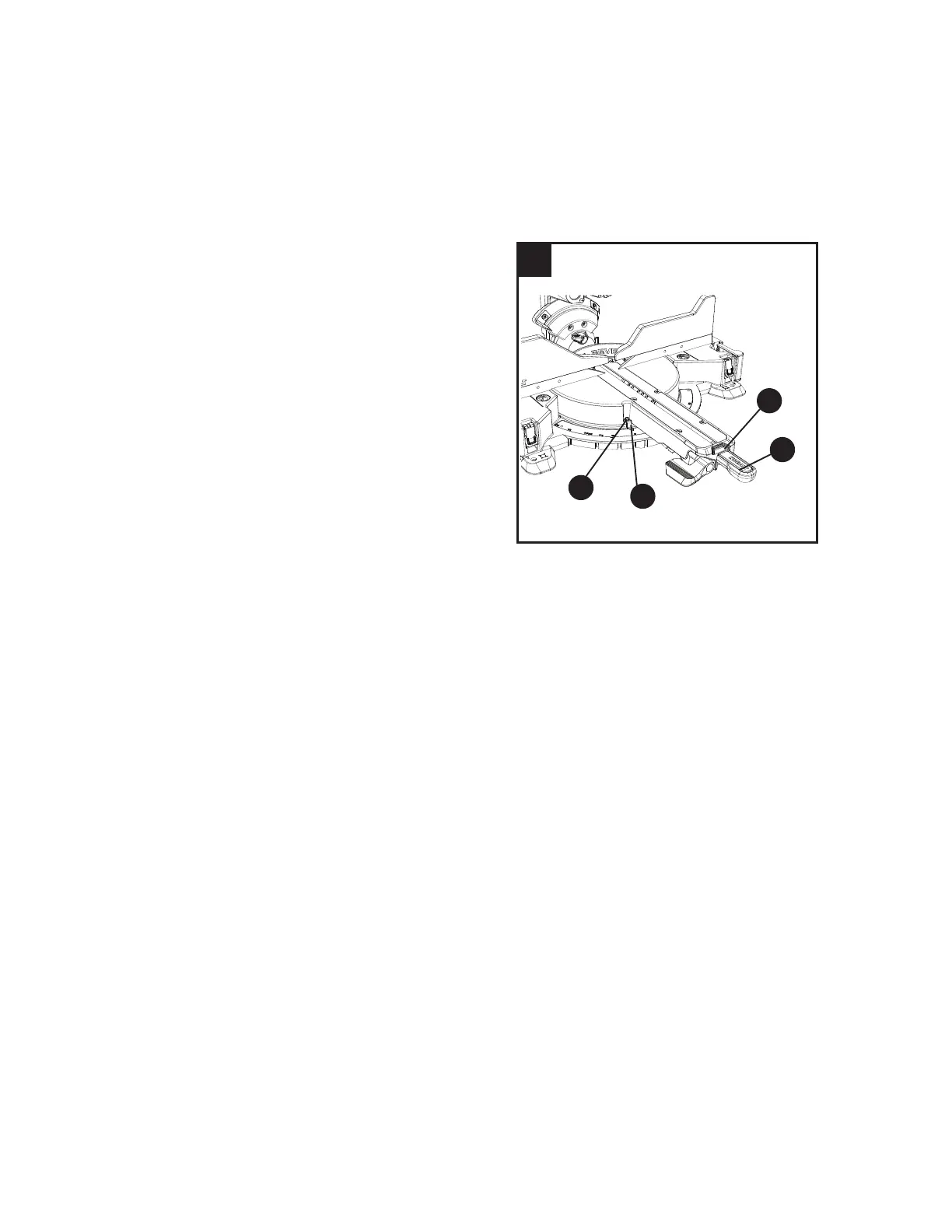

MITER SCALE (FIG. 19)
The sliding compound miter saw scale can be easily
read, showing miter angles from
0° to 55° left and
0° to 60° right. The most common angle settings
have positive stops at 0°,15°, 22.5°, 31.6°, 45° left
and right and 60° right only. These positive stops
position the blade at the desired angle quickly and
accurately. Follow the instructions below for quickest
and most accurate adjustments.
To Adjust Miter Angles:
ŏ Lift up on the miter lock handle (1) to unlock
the table.
ŏ Move the table while pressing down on
the positive stop locking button (2) to align the
pointer (3) to the desired degree measurement.
ŏ If the desired angle is one of the ten positive
stops, press down the positive stop locking
button (2) , making sure it snaps into position,
then secure by pressing down the miter
handle (1).
ŏ If the miter angle desired is not one of the ten
positive stops, simply lock the miter table into
position by pressing down on the miter lock
handle (1).
Miter Angle Pointer Adjustment (Fig. 19):
ŏ Move the table to the 0° positive stop.
ŏ Loosen the screw (4) that holds the
pointer (3) with a Phillips screwdriver.
ŏ Adjust the pointer (3) to the 0° mark and
retighten the screw (4).
1
2
3
4
