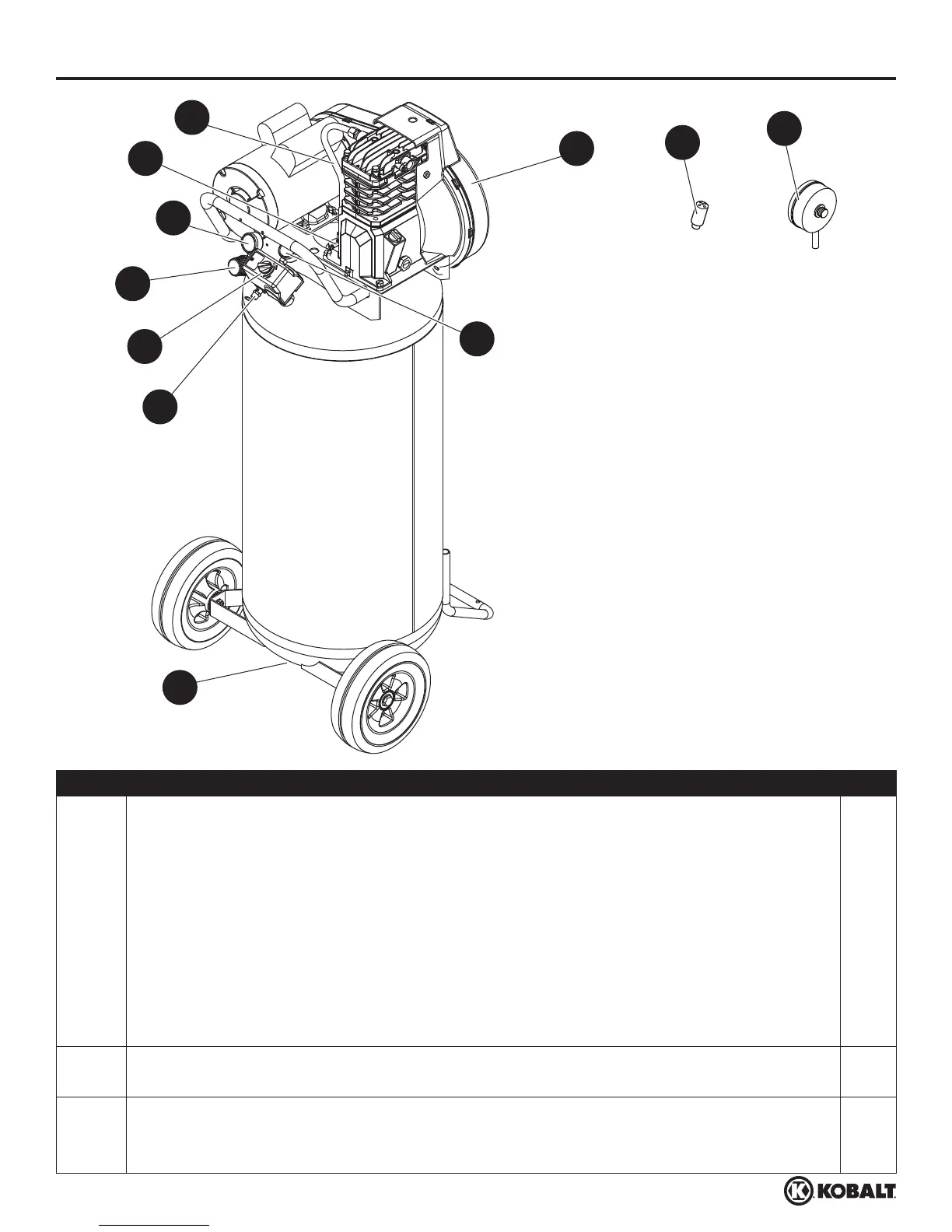

PACKAGE CONTENTS
PART DESCRIPTION QTY.
A Pressure Switch - AUTO/OFF Switch - In the AUTO position, the compressor
shuts off automatically when tank pressure reaches the maximum preset pressure.
After air is used from the tank and drops to a preset low level, the pressure switch
automatically turns the motor back on. In the OFF position, the compressor will not
operate. This switch should be in the OFF position when connecting or disconnecting
the power from the unit.
When the pressure switch turns the motor off you will hear air leaking out of the
pressure switch unloader valve for a short time. This releases the air pressure from
the discharge tube and allows the compressor to restart easier.
1
B ASME Safety Valve - This valve automatically releases air if the tank pressure
exceeds the preset maximum.
1
C Discharge tube - This tube carries compressed air from the pump to the check valve.
This tube becomes very hot during use. To avoid the risk of severe burns, never touch
the discharge tube.
1
A
B
C
D
E
F
G
H
I
J
K
