7
PACKAGE CONTENTS
WARNING
Risk of Personal Injury. Do not operate unit
if damaged during shipping, handling or use.
Damage may result in bursting and cause
injury or property damage.
Before beginning installation and/or assembly of product, make sure all parts are present. Compare
parts with package contents list. If any part is missing or damaged, do not attempt to assemble or use
the product. Contact customer service for replacement parts and assistance.
PREPARATION
PART DESCRIPTION QTY.
D Check valve - One-way valve that allows air to enter the tank, but prevents air in the
tank from flowing back into the compressor pump.
1
E Belt Guard - Covers the belt, motor pulley and flywheel. 1
F Tank Drain Valve - This valve is located on the bottom of the tank. Use this valve to
drain moisture from the tank daily to reduce the risk of corrosion.
1
G Tank Pressure Gauge - Indicates amount of air pressure stored in tank. 1
H Hose Pressure Gauge - Indicates amount of air pressure in hose used to operate
tools. This pressure is increased or decreased by the regulator.
1
I Regulator - The regulator controls the amount of air pressure released at the hose
outlet.
1
J Air Filter - Keeps debris and particulates out of the air flowing into the compressor. 1
K Breather - Vent for crankcase. 1

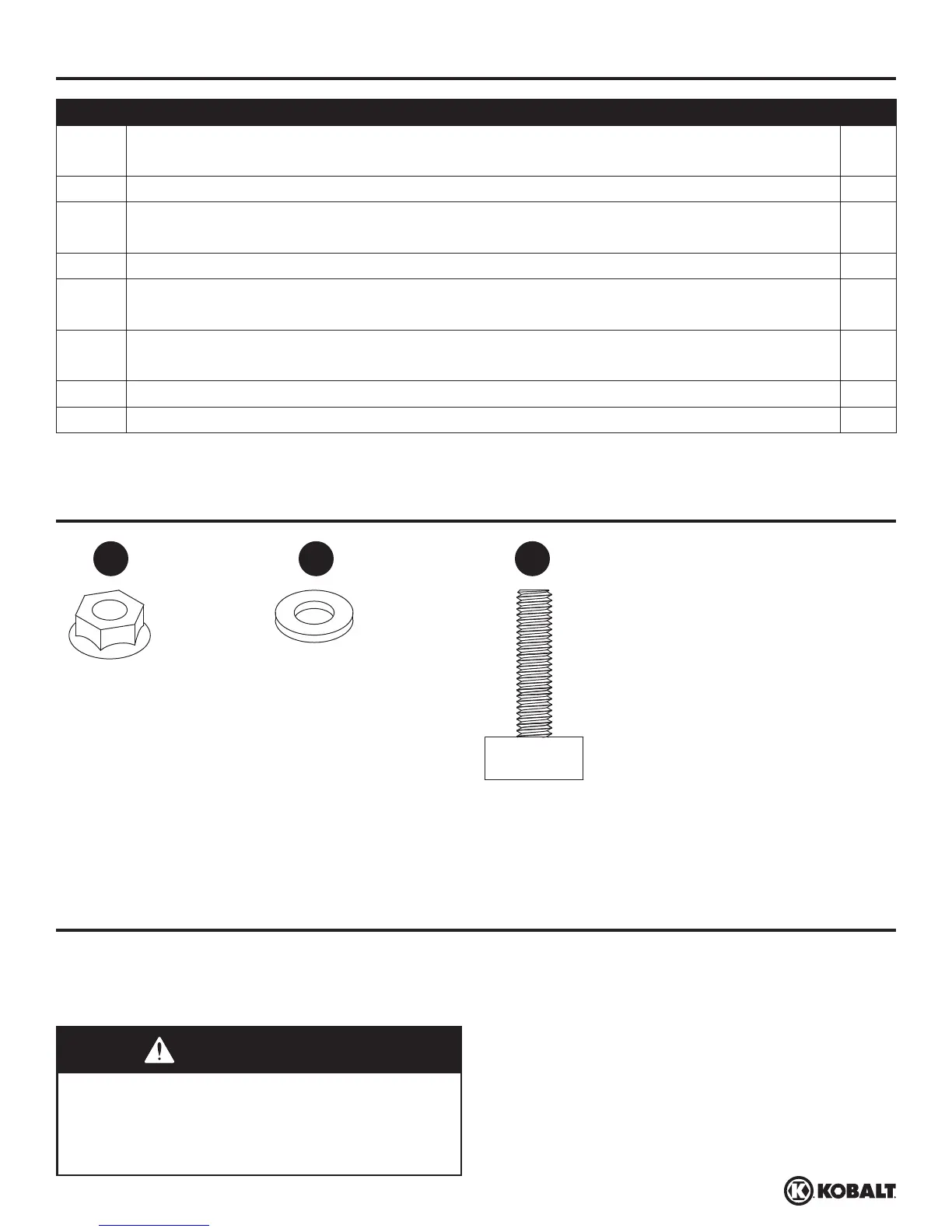

HARDWARE CONTENTS (shown actual size)
AA BB CC
5/16 inch x
18 Spinlock Nut
Qty. 2
5/16 inch Washer
Qty. 2
Rubber Foot
Qty. 2
kobalttools.com
