14_www.kocom.com Security Home Auto System_15

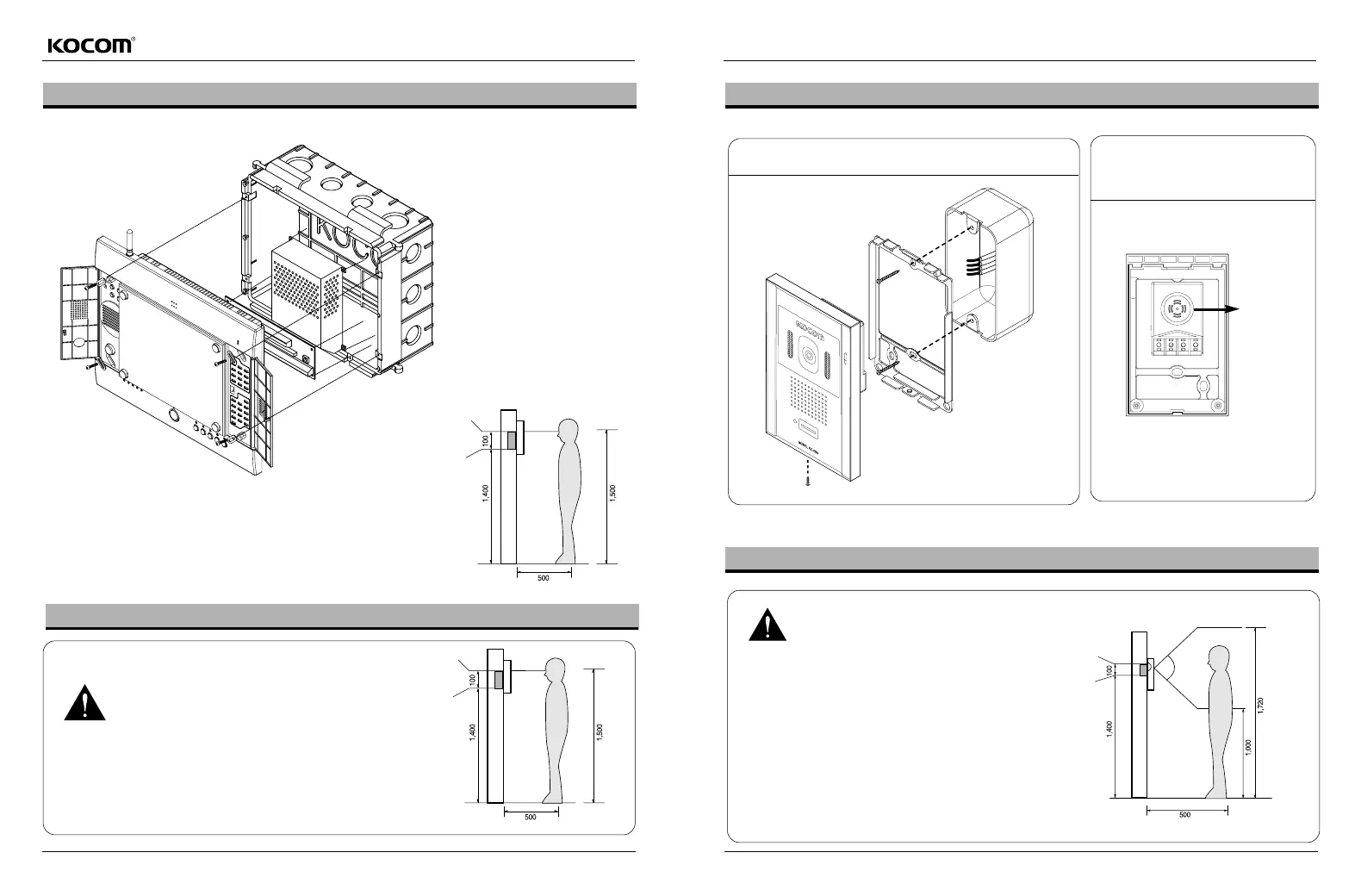

Installation of Main Body
Cameral Installation
Standard Height in Main Body Installation
Standard Height in Camera Installation
Standard height in main body installation is
1,400~1,450mm from the floor to the lowest part
of single-hole box.
Humidity, magnetic force, chemicals, direct sunlight and
heater may cause mechanical troubles of the product.
Avoid installing the product where any one of above
conditions exists.
Standard height of front door camera is 1,400~1,450mm from
the floor to the lowest part of single-hole box (for concealed
type, 1,400~1,450mm from the floor to the camera box).
In the event that height of front door camera is out of range
from 1,250mm at the lowest to 1,550mm at the highest,
adjustment of lens angle alone cannot control video image
you want.
Thus, be careful to install camera according to the proper
range of height.
(unit: mm)
exposed type
concealed type
Basic Installation Method of Front Door Camera (KC-C50)
Lens Control Method toward up/down
and left/right
Control handle
for up/down
and left/right
move
Standard Height in Main Body Installation
Standard height in main body installation is 1,400~1,450mm from the floor to the lowest
part of single-hole box.
Humidity, magnetic force, chemicals, direct sunlight and heater may cause mechanical
troubles of the product. Avoid installing the product where any one of above
conditions exists.
(unit: mm)
(unit: mm)
Center of Videophone
Lower Center of Single-hole Box
Center of Monitor
Lower Center of
Single-hole Box
Lower Center of
Single-hole Box
