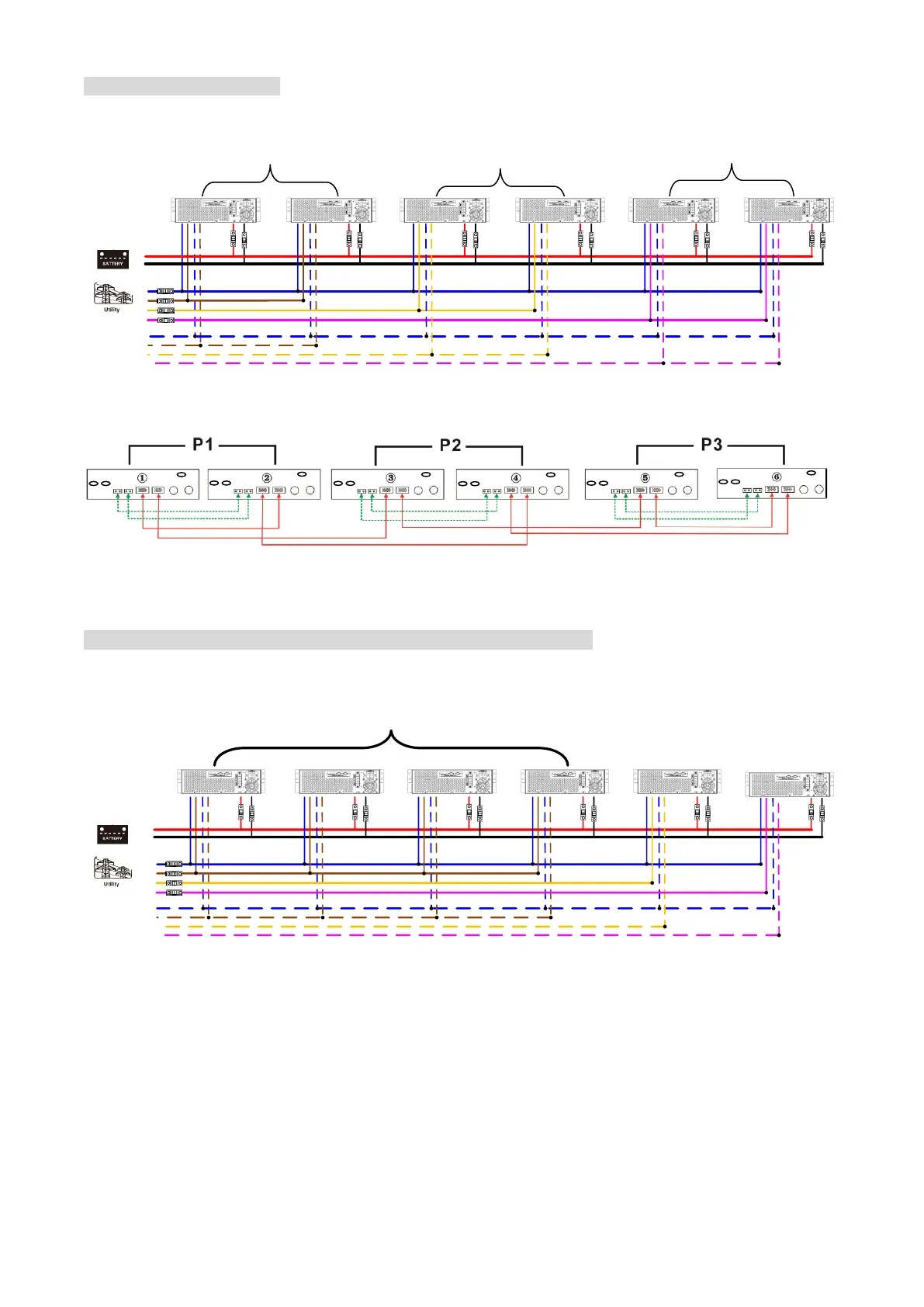

4-2. Support 3-phase equipment
Two inverters in each phase:
Power Connection
Load
N
L1
P1 P2 P3
L2
L3
N
L1
L2
L3
Communication Connection
Four inverters in one phase and one inverter for the other two phases:
Power Connection
N
L1
P1
P2 P3
L2
L3
N
L1
L2
L3
Load
Note: It’s up to customer’s demand to pick 4 inverters on any phase.
P1: L1-phase, P2: L2-phase, P3: L3-phase.
