41
Communication Connection

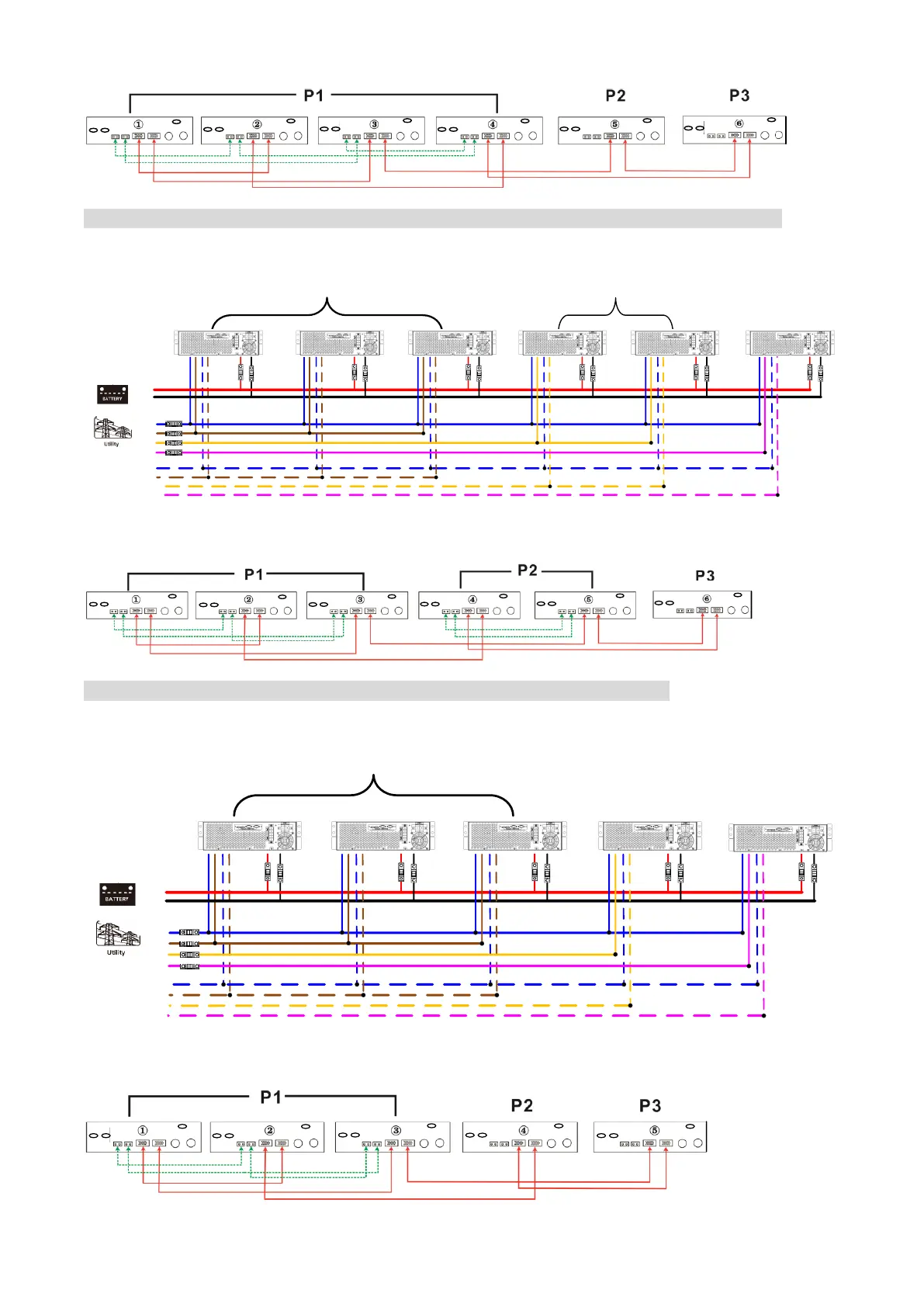

Three inverters in one phase, two inverters in second phase and one inverter for the third phase:
Power Connection
N
L1
P1 P2
P3
L2
L3
N
L1
L2
L3
Load
Communication Connection
Three inverters in one phase and only one inverter for the remaining two phases:
Power Connection
N
L1
P1
P2 P3
L2
L3
N
L1
L2
L3
Load
Communication Connection
