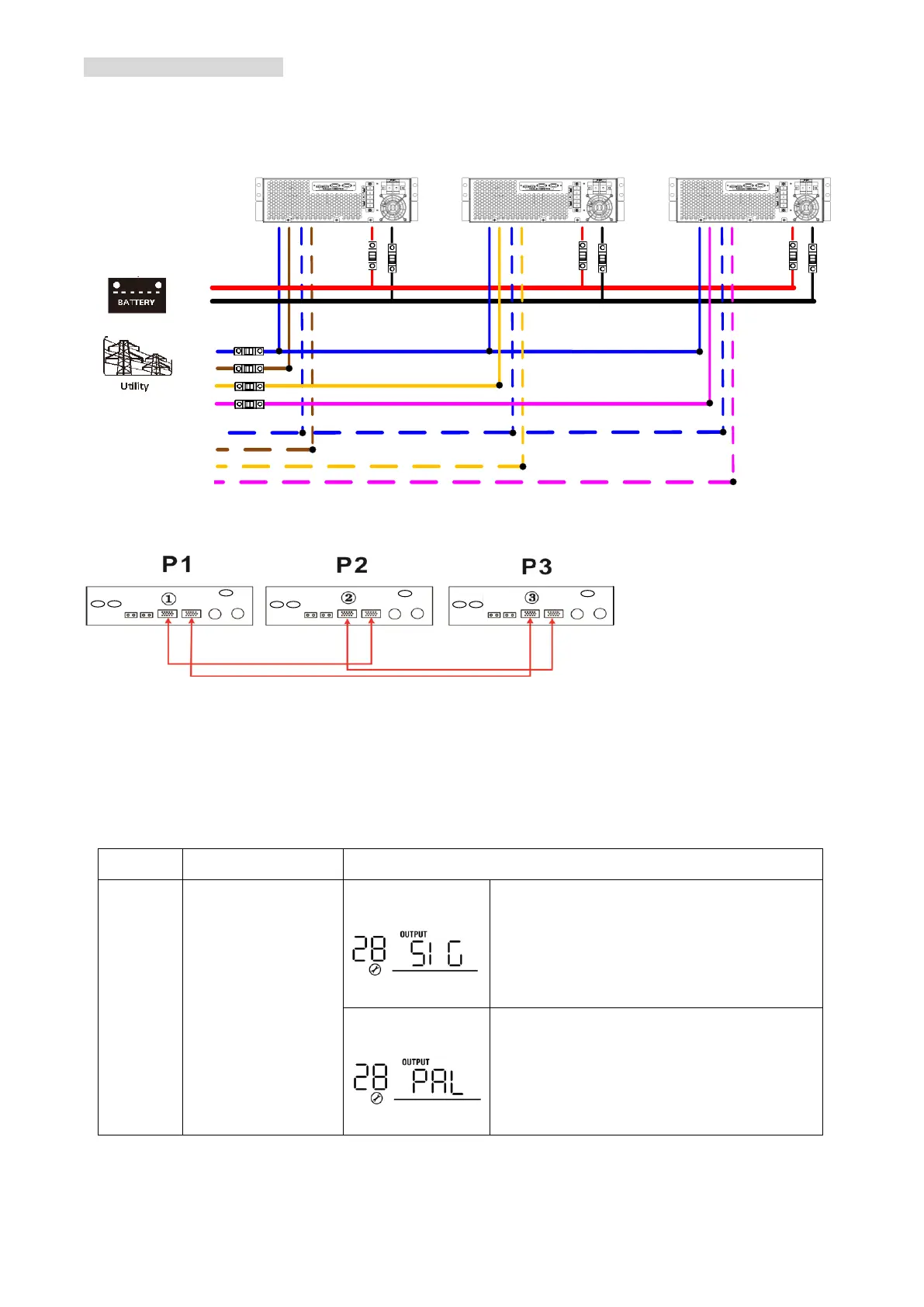

One inverter in each phase:
Power Connection
N
L1
P1 P2 P3
L2
L3
N
L1
L2
L3
Load
Communication Connection
WARNING: Do not connect the current sharing cable between the inverters which are in different phases.
Otherwise, it may damage the inverters.
5. LCD Setting and Display
Setting Program:
Program
Description
Selectable option
28
AC output mode
*This setting is able
to set up only when
the inverter is in
standby mode. Be
sure that on/off
switch is in “OFF”
status.
Single:
When the unit is operated alone, please select
“SIG” in program 28.
Parallel:
When the units are used in parallel for single
phase application, please select “PAL” in
program 28. Please refer to 5-1 for detailed
information.
