Kogan LET40T3 - Location of Controls and Components; Main Board

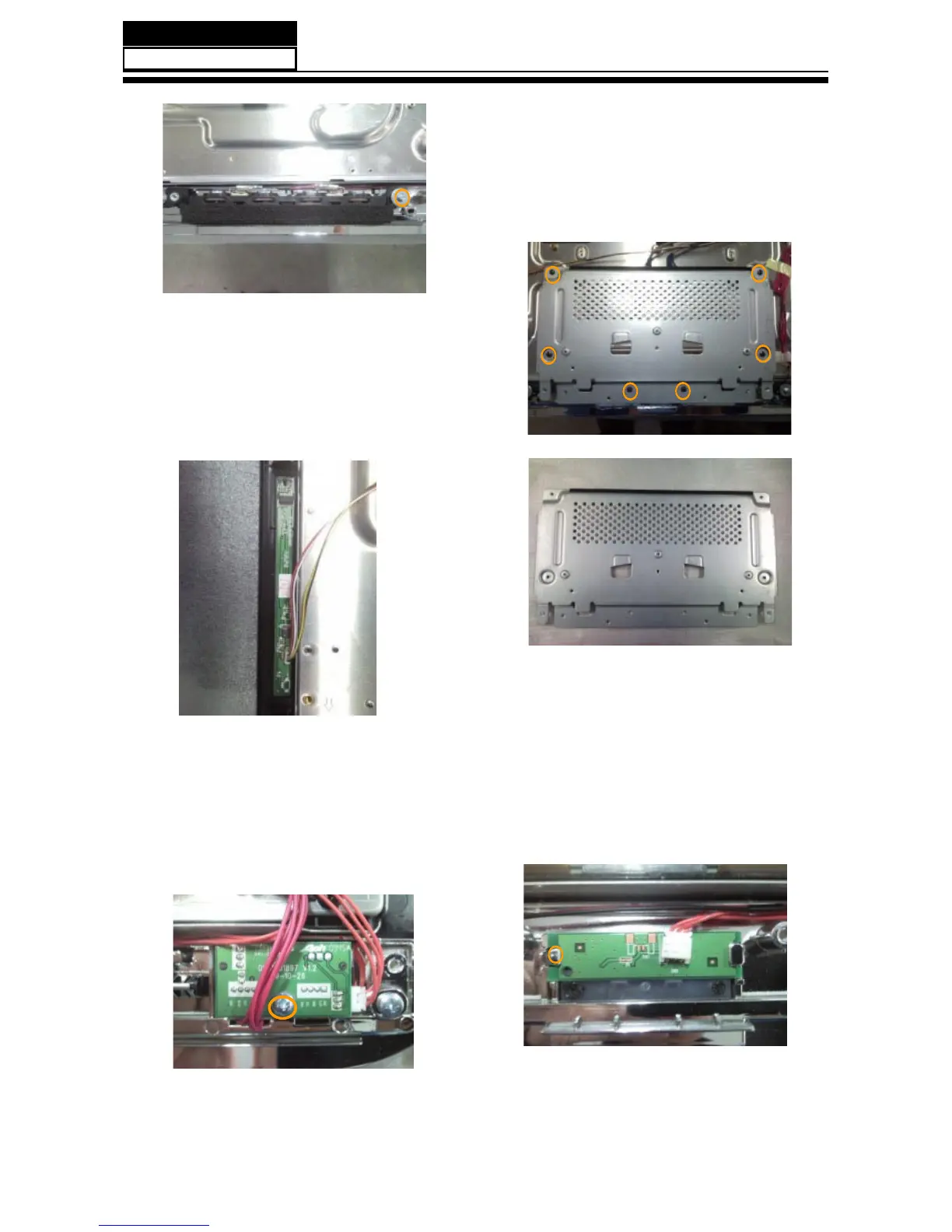

Remove the screw indicated by the red
circles in below picture.
3-6. Remove the Keypad
The Keypad is conglutinated with front frame
, just uncover the keypad gently.
Then remove the keypad.
Take out the remote control board.
3-7. Remove the Remote Control
Board
3-9. Remove the indicator light
The indicator light is buckled into the front
frame,remove the clasp indicated by the red
circles in below picture.
Take out the indicator light.
3-8. Remove the Stand backstop
Remove the six screws indicated by the red
circles in below picture.
Take out the stand backstop.
Service Manual
Model No.: LET40T3
12
