Section 1 Service Views
1. Fuses (F1, F2, and F3) for 10/15/20EOR(Z)DB and
9/12.5/16.5EFOR(Z)DB models
2. Advanced Digital Control (ADC 2100)
3. Alternator cooling air inlet
4. Run-Off/Reset-Auto switch
5. Fuse block (inside junction box) for 30/40EORZDB and
25/33EFORZDB models
6. Runtime hour display
7. Air intake silencer/cleaner
8. Fuel inlet connection
9. Fuel/water separator
10. Lifting eye
11. Fuel return connection
12. Fuel filter
13. Oil fill (engine top)
14. Mechanical governor
15. Coolant overflow tube
16. Pressure cap (at radiator)
17. Oil fill (front gear cover)
18. Radiator
19. V-belt
20. Oil check/dipstick
21. Coolant overflow bottle
22. Lube oil filter
23. Oil drain
24. Fuel feed pump
25. Nameplate
26. Circuit breaker location
27. Remote customer interface connector
28. Load lead connection
29. Water inlet connection
30. Water outlet connection
31. Exhaust outlet
1
13
23 2227
20
3
24
17
14
28
1210
ADV7031-A
2
29
746
Engine-End View
(With Radiator Removed)
Service-Side View
19
2526
91516
18
21
30 31
8115

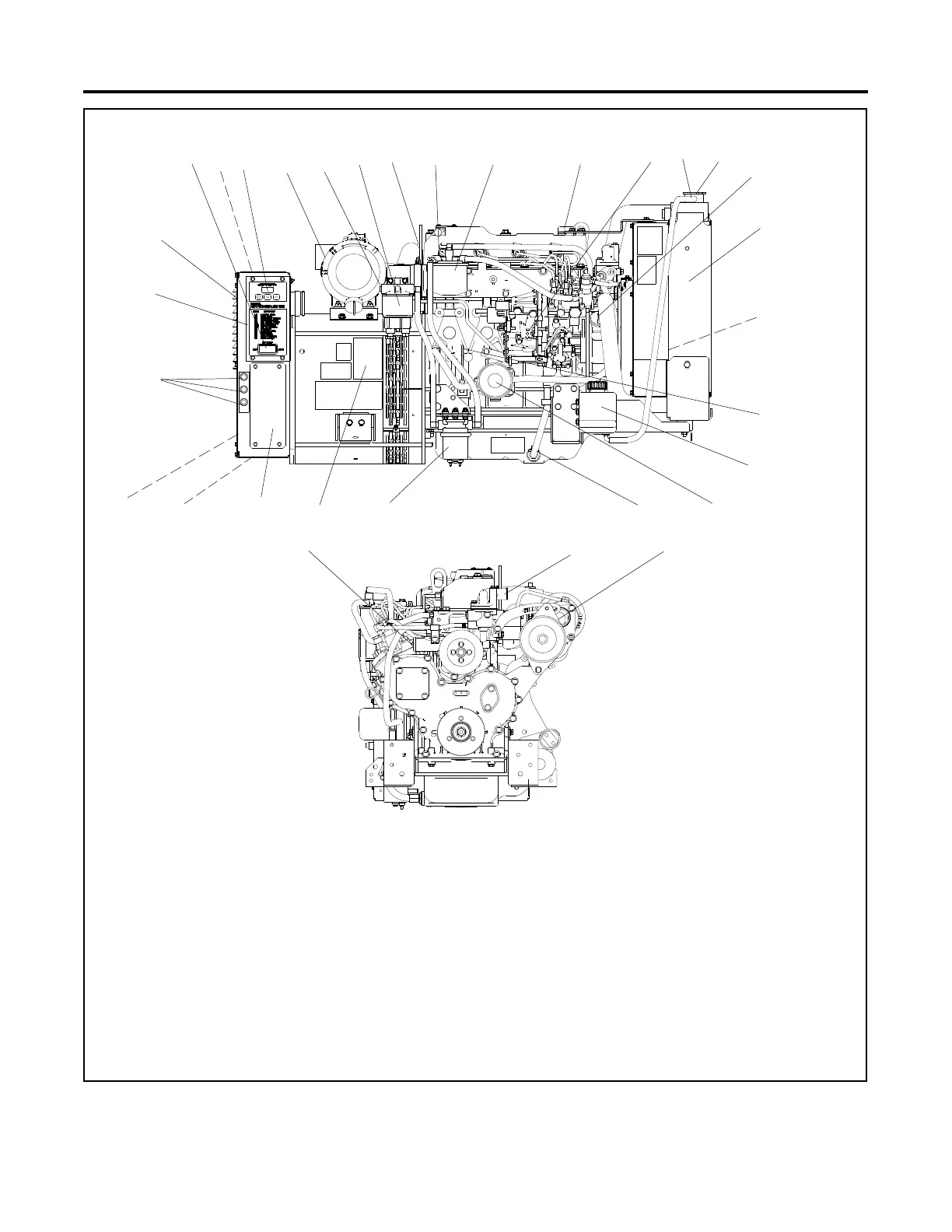

Figure 1-1 Service Views, Typical
