Kohler 14RCAL User Manual

26 TP-7092 11/22
1.9 Service Views
1. Hinged roof
17. AC receptacles for accessories (not shown)
2. Lock
18. Oil drain valve
3. Air intake
19. Exhaust outlet
4. Enclosure key, provided with generator set
20. Silencer
5. High voltage electrical in
21. USB connector (for firmware updates)
6. Optional emergency stop button location
22. RDC2 controller
7. Lifting holes
23. Line circuit breaker
8. Fuel inlet
24. Field-connection terminal block (behind panel)
9. Air intake
25. Digital spark advance ignition (DSAI) lead location (14RCA/L only)
10. Low voltage electrical in
26. Thermostat location
11. Oil check (dipstick)
27. Fuel system
12. Air cleaner
28. Battery cables (provided)
13. Nameplate location
29. Engine starting battery location (battery purchased separately)
14. Oil filter (18/20 kW models)
30. Oil drain hose (shown in storage position)
15. Auxiliary winding circuit breaker
31. Oil filter (14 kW models)
16. Oil fill

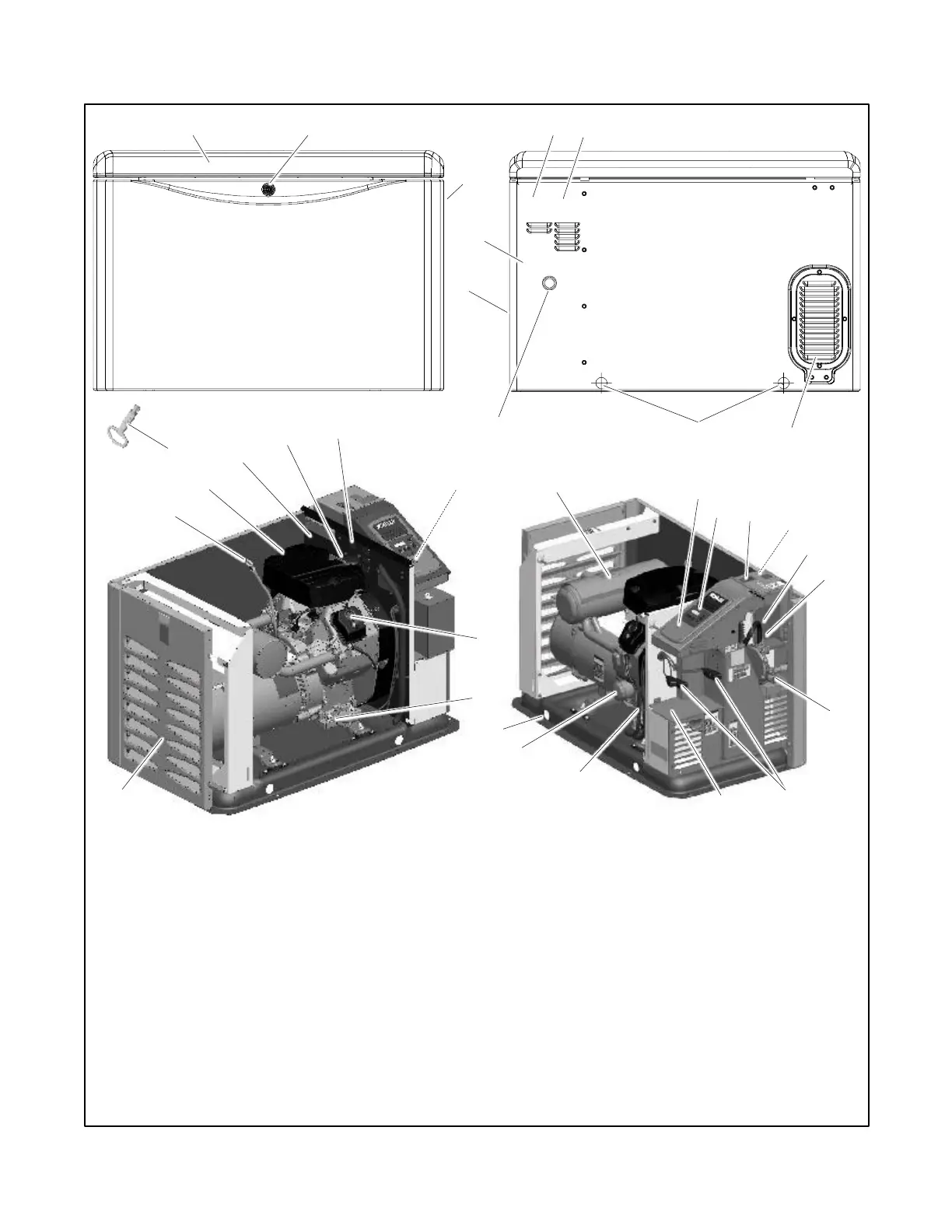

Figure 20 Service Views (20 kW model shown)
ENCLOSURE PANELS
REMOVED TO SHOW DETAIL
2
3
5
6
10
9
8
3
7
4
11
12
13
14
15
16
18
19
17
20
21
22
23
24
27
25
26
28
29
7
31
30
ADV9746
1
