Kohler 14RCAL

62 TP-7092 11/22
3.19 Programmable Interface Module (PIM) Status Menu
The PIM status menu displays the status of inputs and outputs connected to the programmable interface module (PIM). This
menu appears only if a PIM is connected. This is a status display menu only. Input and output settings cannot be changed from
the RDC2 controller’s user interface.
A personal computer running Kohler
®
SiteTech™ software is required to change the input and output settings. Contact an
authorized dealer for service.
The Kohler
®
OnCue
®
Plus Management System can be used to turn outputs on and off. See the OnCue
®
Plus Software
Operation Manual for instructions.

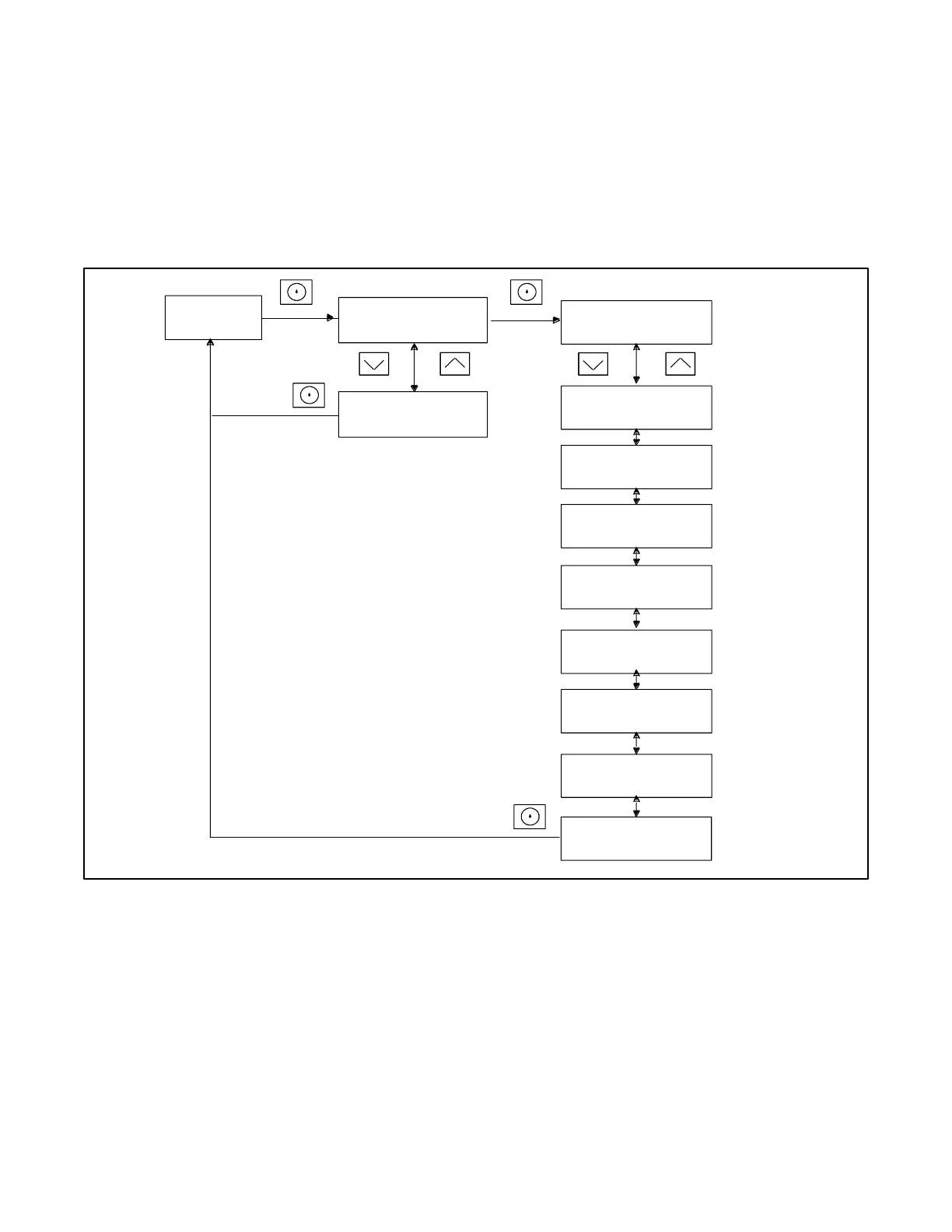

Figure 51 Programmable Interface Module (PIM) Status Menu
PIM
Status:
<--- Return
PIM 1 --->
Input 1
In/Active
Input 2
In/Active
Output 1:
In/Active
Output 2:
In/Active
Output 3:
In/Active
Output 4:
In/Active
Output 5:
In/Active
Output 6:
In/Active
<--- Return
tp6810
