TP-6805 8/15 127Section 7 Disassembly/Reassembly
GM72523
1. Remove three nuts on each side
1
1

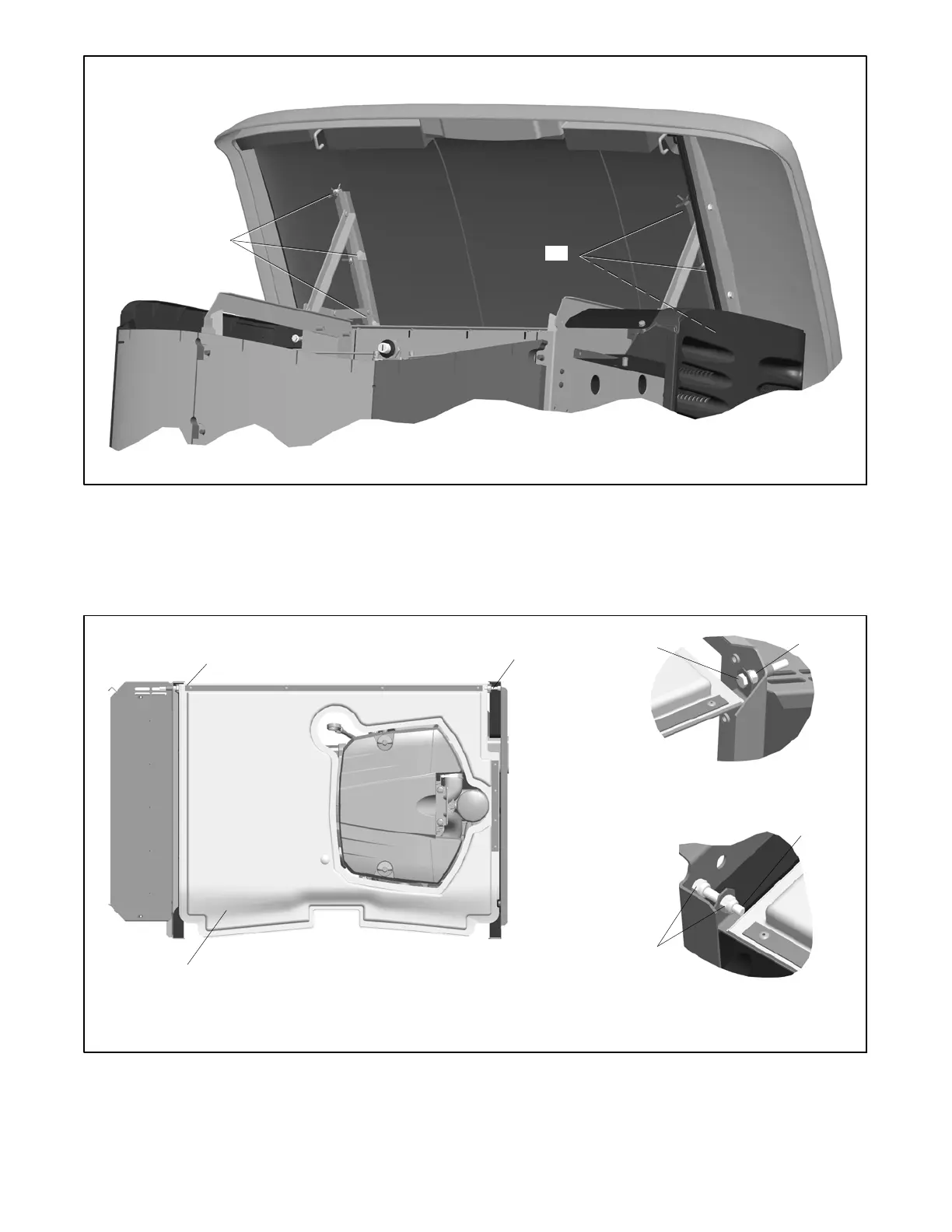

Figure 7-2 Roof Removal
4. Remove the thermal cover:
a. Loosen and remove the lock nuts from the front
and rear hinge brackets. See Figure 7-3.
b. Remove the thermal cover.
GM81036--C
1. Thermal cover
2. Screw. Do not overtighten; allow to pivot.
3. Lock nut(s)
1
3
3
2
2
REAR HINGE BRACKET VIEW
FRONT HINGE BRACKET VIEW
SEE FRONT HINGE
BRACKET VIEW
SEE REAR HINGE
BRACKET VIEW
Figure 7-3 Thermal Cover
To Next Page
