TP-6805 8/15 133Section 7 Disassembly/Reassembly
14. Remove the remaining plugs and screws to
remove the non-service side housing panel. See
Figure 7-16.
1. Non-service side panel
1

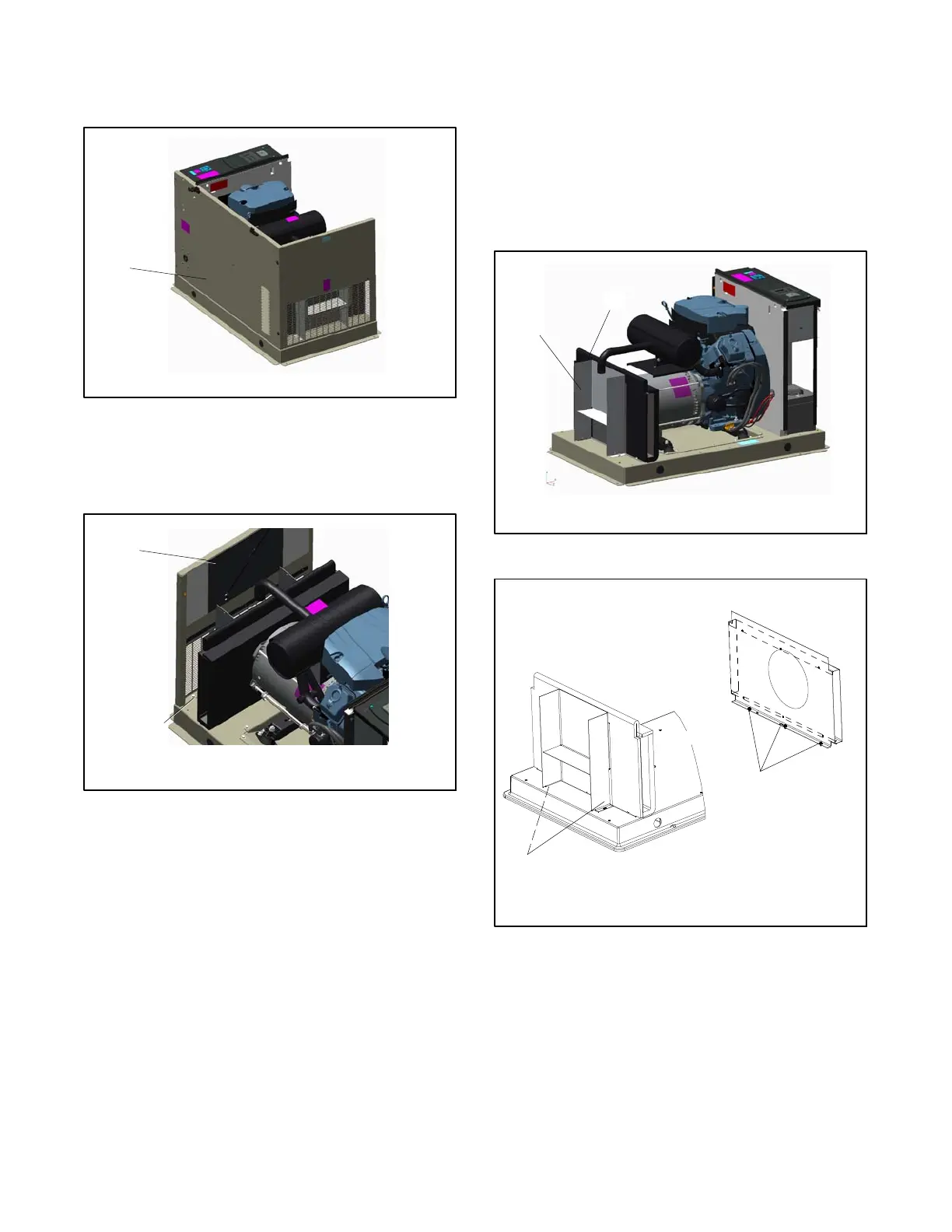

Figure 7-16 Non-Service Side Panel Location
15. From the inside of the enclosure, remove the
screws to remove the rear (exhaust end) panel.
See Figure 7-17.
1. Screw
2. Rear Panel
1
2
Figure 7-17 Rear Panel
16. Remove the exhaust shield and alternator air inlet
duct. See Figure 7-18.
a. Remove two bolts securing the exhaust shield
at the exhaust end and remove the shield. See
Figure 7-19.
b. Remove three bolts securing the alternator air
inlet duct to the base and remove the duct. See
Figure 7-19.
1
1. Exhaust shield
2. Alternator air inlet duct
2
Figure 7-18 Shield and Alternator Air Inlet Duct
2
GM51561C
1. Exhaust duct mounting screws, qty. 2
2. Alternator duct mounting screws, qty. 3
1
Alternator Duct
Detail
Exhaust and
Alternator Ducts
Figure 7-19 Exhaust and Alternator Ducts
