TP-6805 8/15 135Section 7 Disassembly/Reassembly
21. Remove the alternator support bracket from the
alternator shell. See Figure 7-22.
1
TP-6735
1. Alternator support bracket

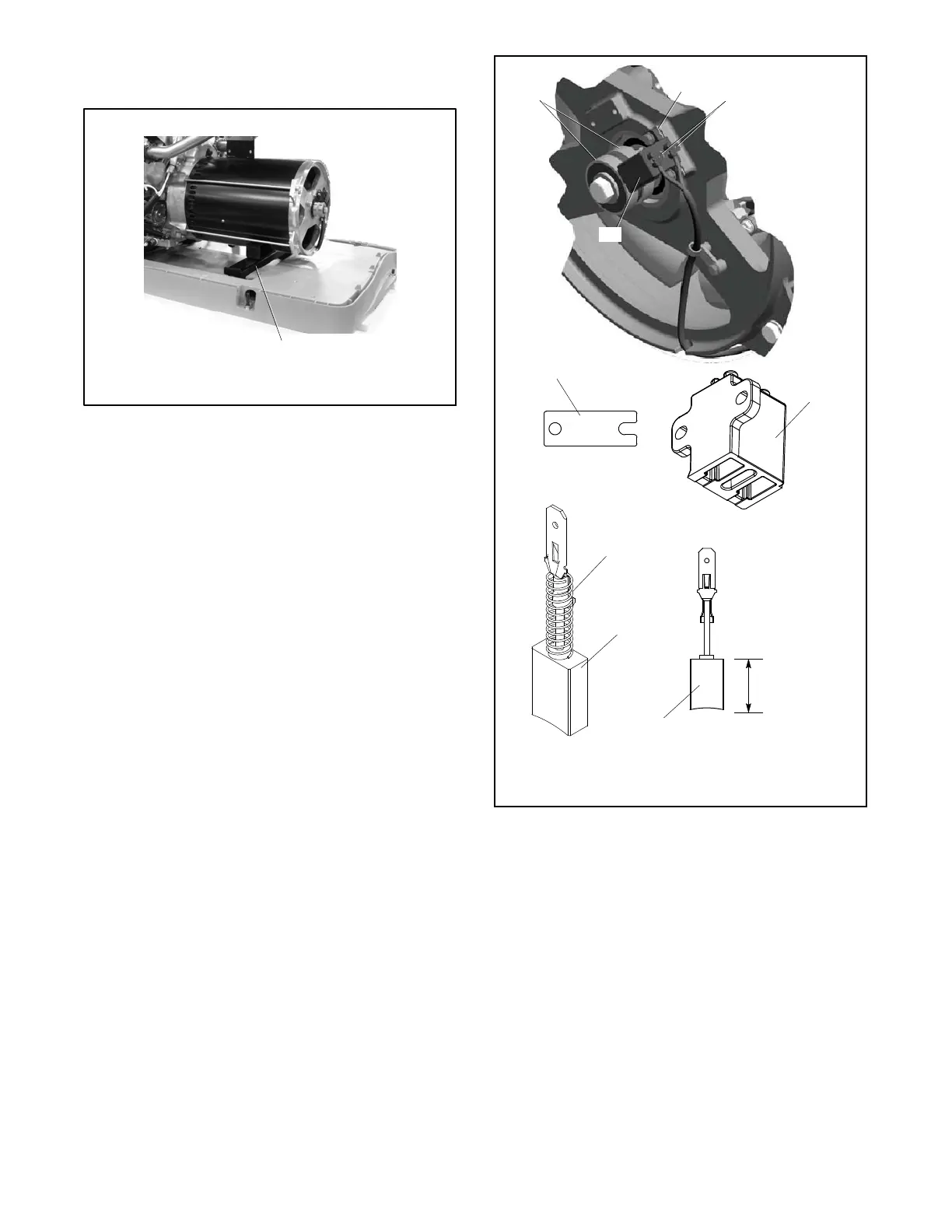

Figure 7-22 Alternator Support Bracket (RESA
shown)
22. Remove the cable tie that attaches the brush leads
to the end bracket. See Figure 7-23.
23. Check the brushes. See Figure 7-23.
Note: The brushes are spring-loaded and
captured in the brush holder.
a. Remove the b rush holder from the end bracket
by removing two mounting screws.
b. Inspect the brushes. Replace brushes if they
show uneven wear or when they are worn to
half of their original size. See Section 6.6,
Brushes.
1
1. Brush(es)
2. Brush holder
3. Slip rings
4. Shim
5. Spring
GM80980
GM80981
Length New
19.0 mm
(0.75 in.)
Spring Not
Shown
5
1
1
GM80982
GM62996
2
4
3
4
2
Figure 7-23 Brush Assembly
