Kohler 16EFOZ

TP-6071 3/0050 Section 10 Wiring Diagrams

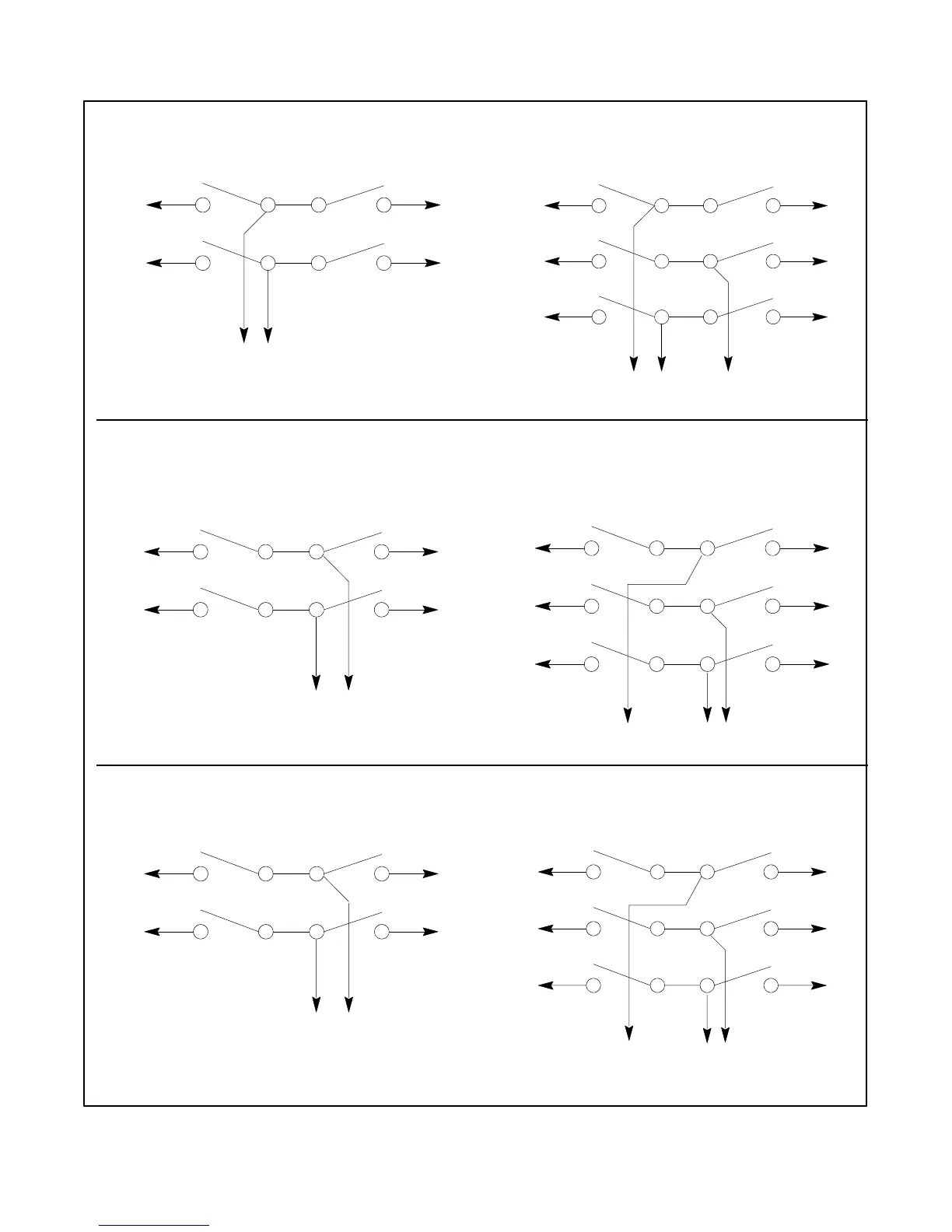

10.1 Manual Marine (Ship-to-Shore) 2 Wire and 3 Wire Transfer Switches
Electro Switch
L1
L2
To Generator
Set
To Shore
Power
To Load
2-Wire Generator Sets
L1
L2
To Generator
Set
To Shore
Power
To Load
2-Wire Generator Sets
2-Wire Generator Sets
Kraus Naimler/American Solenoid
(Early Rectangular Design)
Kraus Naimler/American Solenoid
(Newer Round Design)
2134
6578
1265
348 7
L1
L2
To Generator
Set
To Shore
Power
To Load
3241
768 5
L1
L2
To Generator
Set
To Shore
Power
To Load
3-Wire Generator Sets
2134
657 8
L0
10 9 11 12
1265
348 7
91014 13
L1
L2
To Generator
Set
To Shore
Power
To Load
3-Wire Generator Sets
L0
3241
768 5
11 10 12 9
L1
L2
To Generator
Set
To Shore
Power
To Load
3-Wire Generator Sets
L0
