Kohler 16EFOZ

TP-6071 3/00 51Section 10 Wiring Diagrams

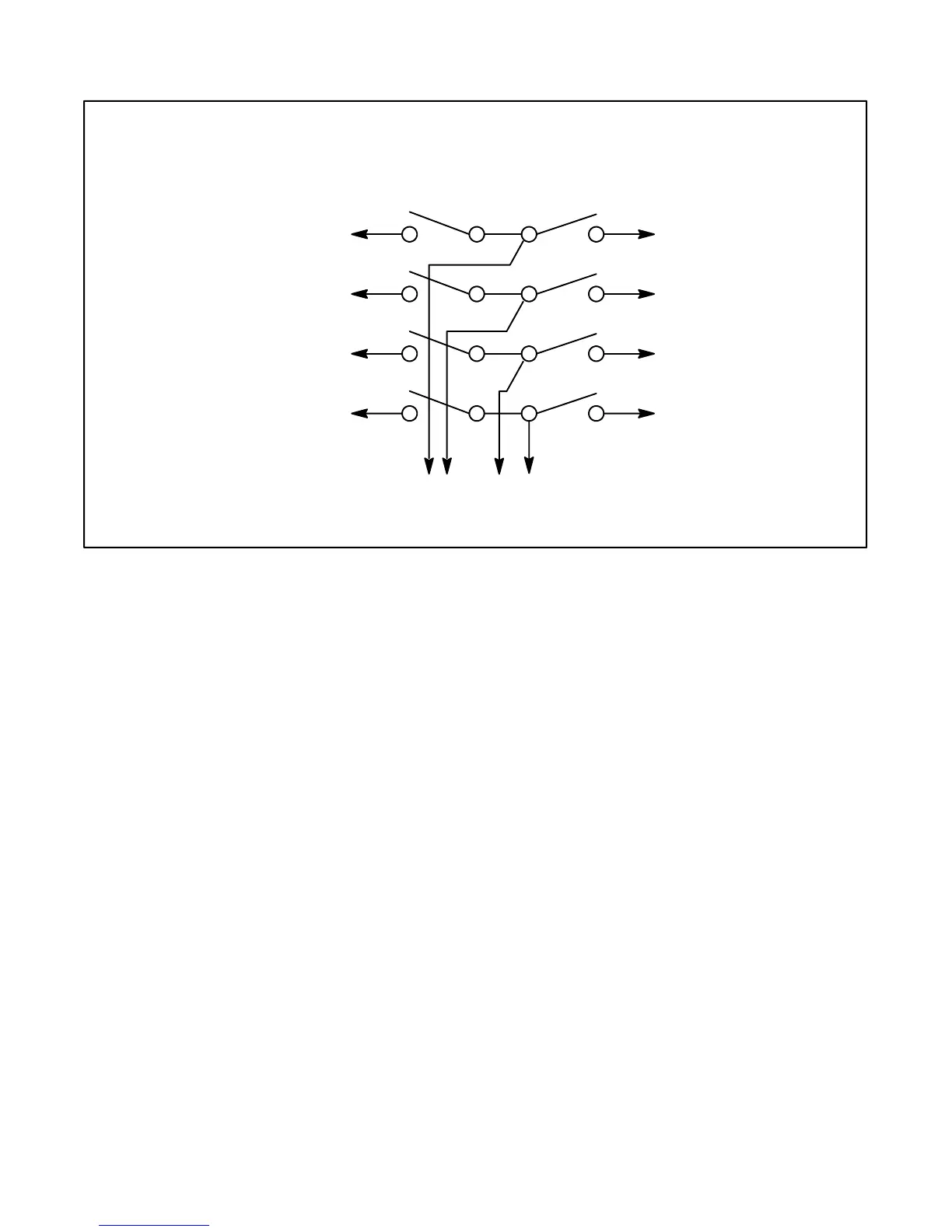

10.2 Manual Marine (Ship-to-Shore) 4 Wire Transfer Switch
7685
11 10 12 9
15 14 16 13
L2
L3
To Generator
Set
To Shore
Power
To Load
4-Wire, three phase
Generator Sets
L0
3241
L1
L2
L3
L0
L1
L2 L3 L0L1
Kraus Naimer/American Solenoid
I-940
