TP-6069 6/038 Section 3 Cooling System
Seawater
Freshwater (Coolant/Antifreeze)
TP-5592-6
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1. Oil cooler
2. Engine block
3. Thermostat
4. Water-cooled manifold
5. Heat exchanger
6. Exhaust mixer elbow
7. Water-cooled turbocharger
8. Silencer (customer-supplied)
9. Exhaust outlet
10. Intake strainer
11. Seacock
12. Seawater strainer
13. Engine-driven seawater pump
14. Engine-driven water pump

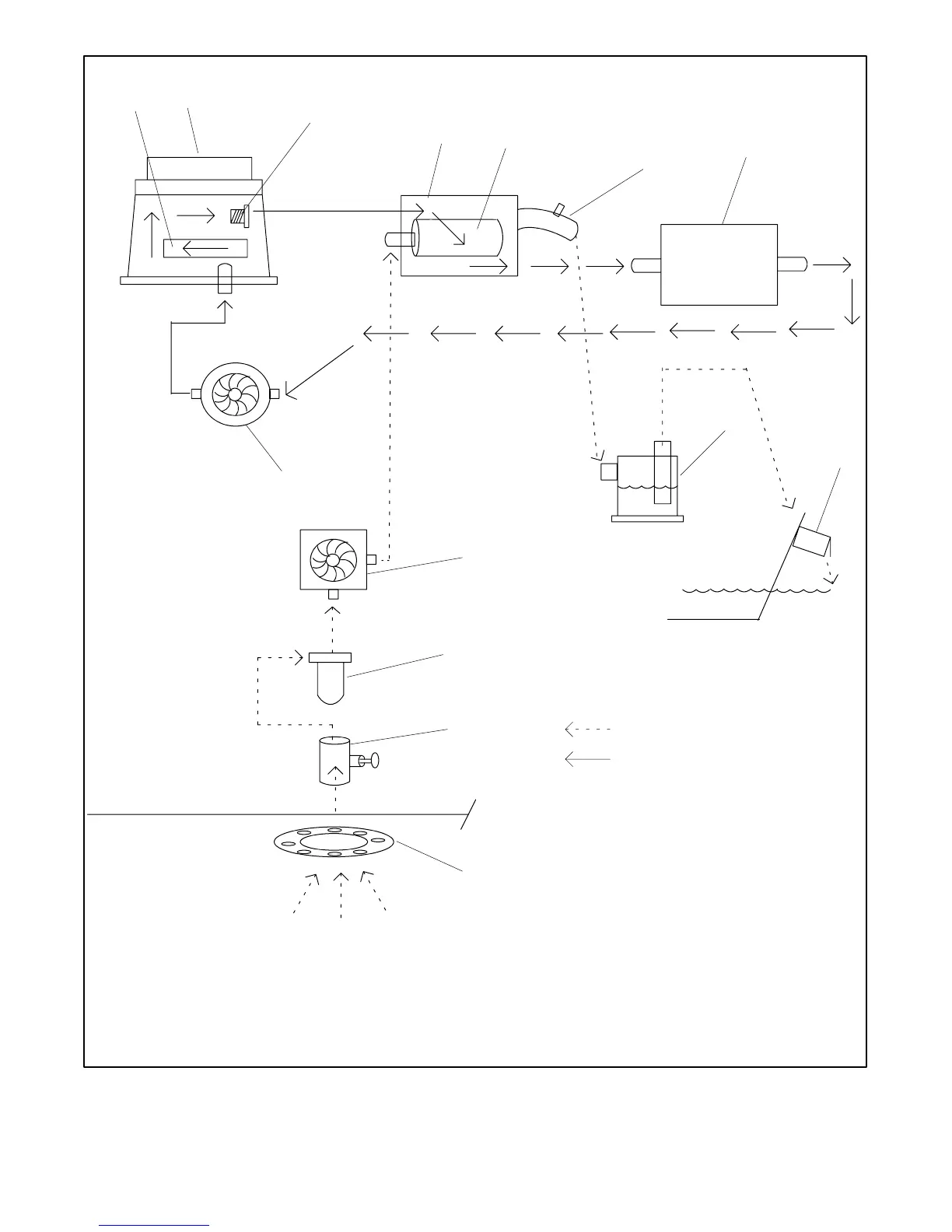

Figure 3-7 Typical Closed/Heat Exchanger Cooling System (11--20EFOZ,13--24EOZ, 33--125EFOZ and
40--150EOZ Models)
